Oldsmobile Regency (1997 – 1998) – fuse box diagram

Oldsmobile Regency (1997 – 1998) – fuse box diagram

Year of production: 1997, 1998

Instrument panel fuse box

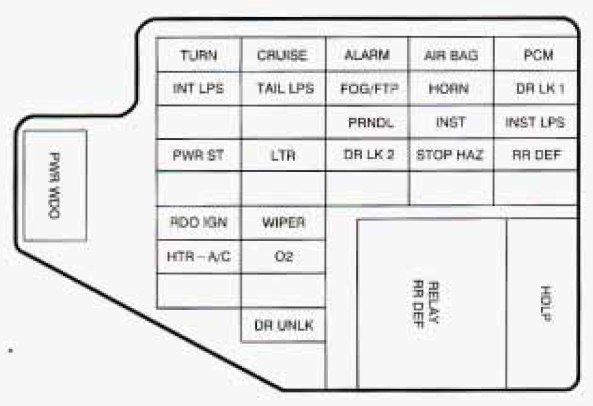

Oldsmobile Regency - fuse box diagram - instrument panel
Oldsmobile Regency – fuse box diagram – instrument panel
Fuse Usage
PWR WDO Power Window (Circuit Breaker)
TURN Turn Signal Lamps
INT LPS Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Variable Effort Steering
PWR ST Power Seat
RDO IGN Radio
HTR-A/C Heater/Air Conditioning Blower, Daytime Running Lamps, Automatic Lamp Control
CRUISE Cruise Control
TAIL LPS Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm
LTR Cigarette Lighter, Auxiliary Power Outlet
WIPER Windshield Wipers/Washers
02 Heated Oxygen Sensors
DR UNLK Automatic Door Unlock
ALARM Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Lock Control
FOG/FTP Fog Lamps
PRNDL Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK 2 Door Locks
AIR BAG Air Bag-Power
HORN Horn, Service Tool Power
INST Instrument Cluster
STOP HAZ Stoplamps, Hazard Lamps, Anti-Lock Brakes
PCM Powertrain Control Module
DR LK 1 Door Locks, Remote Lock Control
INST LPS Instrument PanelL ights, Fog Lamps
RR DEF Rear Window Defogger
HDLP Headlamps, Daytime Running Lamps (Circuit Breaker)

Engine compartment fuse block

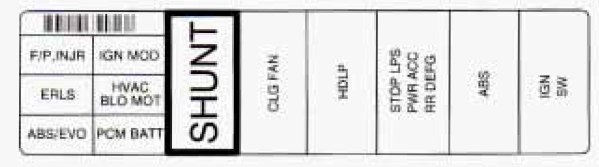

Oldsmobile Regency - fuse box diagram - engine compartment
Oldsmobile Regency – fuse box diagram – engine compartment
Fuse Usage
F/P, INJ Fuel Pump, Fuel Injectors
ERLS Back-up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Variable Effort Steering, Air Conditioning Compressor, Park Lock Solenoid
ABS Anti-Lock Brake Solenoids, Variable Effort Steering
IGN MOD Ignition System
HVAC BLO MOT Heater/Air Conditioner-High Blower, Generator-Voltage Sense
PCM BATT Powertrain Computer
CLG FAN Engine Cooling Fan
HDLP STOP LPS PWR Lighting Circuits
ACC RR DEFG Power Accessory, Stoplamp Circuits, Rear Window Defogger
ABS Anti-Lock Brakes, Variable Effort Steering
IGN SW Ignition Switched Circuits

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
