Oldsmobile Omega (1979) – fuse box diagram
Year of production: 1979

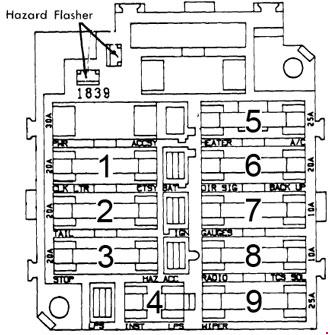

Fuse box diagram
| No. |
A |
Circuit Protected |
| 1 | 30 | Dome light, cigar lighter, clock, courtesy lights, trunk light, glove box light |
| 2 | 20 | Tail, side marker and under hood lights |
| 3 | 20 | Stop lights, hazard warning lights |
| 4 | 4 | Instrument panel lights |
| 5 | 25 | Heater, air conditioner |
| 6 | 20 | Turn signals & back-up lights |
| 7 | 10 | Gauges, seat belt warning |
| 8 | 10 | Radio, defogger, idle stop solenoid |
| 9 | 25 | Windshield wipers |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
