Oldsmobile Eighty Eight (88) (1994) – fuse box diagram
Year of production: 1994

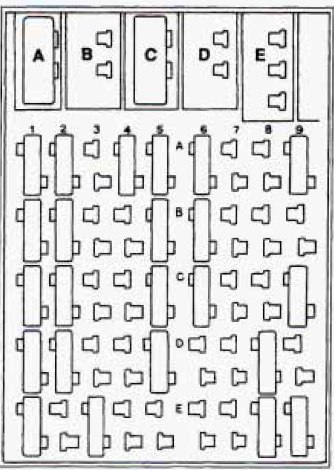

Left Side Fuse Panel
Position | Ampere rating [A] | Description |
A | 30 | Circuit Breaker-Power Windows |
B | — | Not Used |
C | 25 | Power Seats |
D | — | Not Used |
E | — | Not Used |
1A | 10 | Start-up Signal – Air Bag |
2A | 10 | Spare |
3A | — | Not Used |
4A | 10 | Interior Lamps |
5A | 10 | Ignition (Run), Automatic A/C Control |
6A | 15 | Courtesy Lights, Power Mirrors |
7A | — | Not Used |
8A | — | Not Used |
9A | 15 | Cigar Lighter |
1B | 20 | Turn Signal, Back-up Lights, Cornering Lights, Brake- Transaxle Shift Interlock |
2B | 15 | Spare |
3B | — | Not Used |
4B | — | Not Used |
5B | 10 | Anti-Lock Brake System |
6B | 20 | Brake and Hazard Lamps |
7B | — | Not Used |
8B | — | Not Used |
9B | — | Not Used |
1C | 10 | Air Bag |
2C | 20 | Spare |
3C | — | Not Used |
4C | — | Not Used |
5C | 10 | Cooling Fans, Transaxle |
6C | 15 | Parking Lamps |
7C | — | Not Used |
8C | — | Not Used |
9C | 10 | (Battery) Chime, Radio, Cluster |
1D | 15 | Ignition (Run/Crank), Chime, Cluster |
2D | 25 | Spare |
3D | — | Not Used |
4D | — | Not Used |
5D | 25 | Base A/C |
6D | — | Not Used |
7D | — | Not Used |
8D | 10 | Radio |
9D | — | Not Used |
1E | 20 | Auxiliary Outlet(s) |
2E | — | Not Used |
3E | 10 | Ignition (Off/Unlocl<) |
4E | — | Not Used |
5E | — | Not Used |
6E | — | Not Used |
7E | — | Not Used |
8E | 25 | Wipers, Washer |
9E | 30 | Rear Defog |

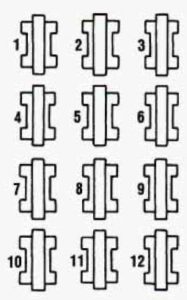

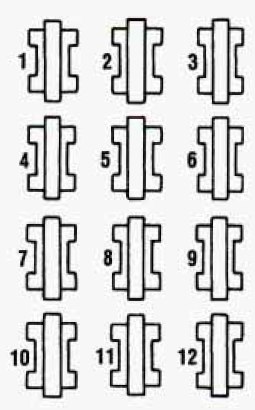

Right Side Fuse Panel
Additional fuses are located in the relay center, on the far right side, below the instrument panel.
Fuse | Ampere rating [A] | Usage |
1 | 20 | Door Locks |
2 | 15 | Cruise Control, Misc. Engine Controls |
3 | — | Not Used |
4 | 15 | Power Antenna, Lock Switch |
5 | 20 | Fuel Pump |
6 | — | Not Used |
7 | 15 | Horns |
8 | 10 | Injectors |
9 | 10 | A/C Programmer- |
10 | — | Not Used |
11 | 10 | Powertrain Control Module, PASS-Key II |
12 | — | Not Used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
