Oldsmobile Eighty Eight  (1995) – fuse box diagram

Oldsmobile Eighty Eight  (1995) – fuse box diagram

Year of production: 1995

Left Side Fuse Panel

The left side fuse panel is located to the left of the steering wheel, under the instrument panel.

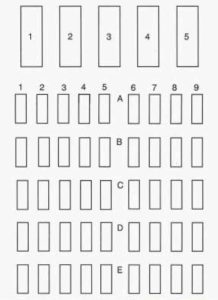

Oldsmobile Eighty Eight - fuse box diagram - left side fuse panel

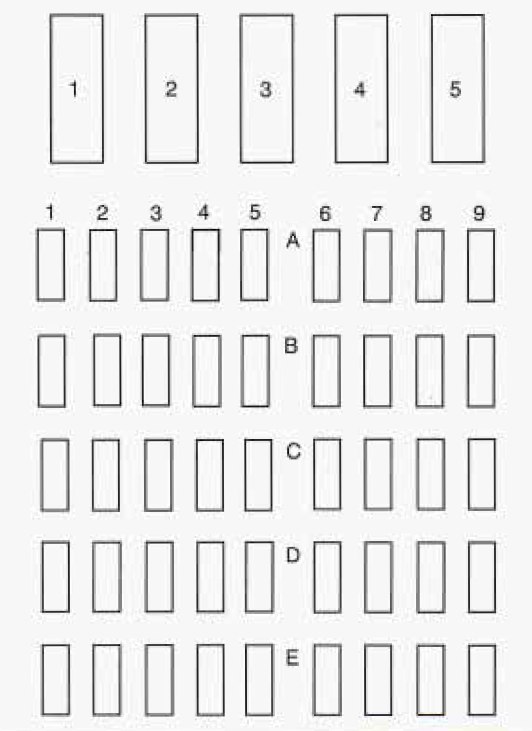

Oldsmobile Eighty Eight – fuse box diagram – left side fuse panel
Position Description
A Circuit Breaker-Power Windows
B Not Used
C Power Seats
D Not Used
E Not Used
1A Start-up Signal – Air Bag
2A Spare
3A Not Used
4A Interior Lamps
5A Ignition (Run), Automatic A/C Control, Base Cluster
6A Courtesy Lights, Power Mirrors
7A Not Used
8A Not Used
9A Cigar Lighter
1B Turn Signal, Back-up Lights, Cornering Lights, Brake- Transaxle Shift Interlock
2B Spare
3B Not Used
4B Not Used
5B Anti-Lock Brake System
6B Brake and Hazard Lamps
7B Not Used
8B Not Used
9B Electronic Level Control
1C Air Bag
2C Spare
3C Not Used
4C Not Used
5C Cooling Fans, Transaxle
6C Parking Lamps
7C Not Used
8C Not Used
9C (Battery) Chime, Radio, Cluster
1D Ignition (Run/Crank), Chime, Cluster
2D Spare
3D Heater Mirror
4D Not Used
5D Base A/C
6D Fog Lamps
7D Not Used
8D Radio
9D Not Used
1E Auxiliary Outlet(s)
2E Not Used
3E Ignition (Off/Unlock)
4E Not Used
5E Not Used
6E Not Used
7E Not Used
8E Wipers, Washer
9E Rear Defog

Right Side Fuse Panel

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

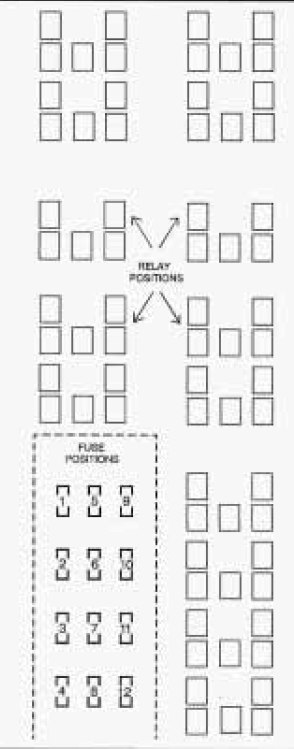

Oldsmobile Eighty Eight - fuse box diagram - right side fuse panel

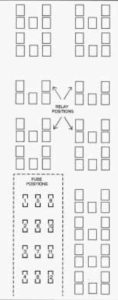

Oldsmobile Eighty Eight – fuse box diagram – right side fuse panel
Fuse Usage
1 Door Locks
2 Antenna, Lock Switch, Trunk Release
3 Horns
4 Not Used
5 Cruise Control, Misc. Engines Controls
6 Fuel Pump
7 Injectors
8 Powertrain Control Module, PASS-Key II
9 A/C Programmer
10 Not Used
11 Not Used
12 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
