Oldsmobile Cutlass Supreme  (1997) – fuse box diagram

Oldsmobile Cutlass Supreme  (1997) – fuse box diagram

Year of production: 1997

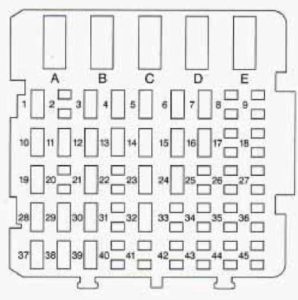

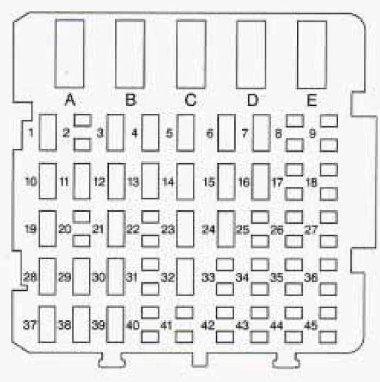

Instrument Panel Fuse Block

Oldsmobile Cutlass Supreme - fuse box diagram - instrument panel
Oldsmobile Cutlass Supreme – fuse box diagram – instrument panel
Circuit Breaker Description
C Power, Windows
D Power Seats

Fuse Description
1 CIGAR LIGHTER — Instrument Panel Cigar Lighter
3 DRL MDL
4 HVAC#2– HVAC Control Assembly, Solenoid Box
5 HAZARD FLASHER
6 POWER ACCESSORY #2 — Sunroof Control Unit
7 LOCK CONTROL — Door Lock Relay
10 I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control
Module (EBCM), Theft Deterrent Module, Radio, Radio Amplifier, Trip Computer
11 STARTER MOTOR
12 ANTI-THEFT — Theft Deterrent Module
13 AHS– Electronic Brake Control Module (EBCM), ABS Relay
14 HVAC BLOWER-MOTOR — Blower Motor Relay
15 HVAC #1 — Air Temperature Valve Motor, Trip Computer, Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16 REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch
19 POWER ACCESSORY #1– Antenna Relay, Power Mirror Switch, Door Lock Switches, Door Handle Switches
21 AIRB AG — Sensing and Diagnostic Module (SDM)
23 STOPLAMPS — TCCBrake Switch
24 CRUISE CONTROL
28 CTSY LAMPS — Vanity Mirrors, I/P Courtesy Lamps, I/P Compartment Lamp, and Reading Lamp, US Lighted Rearview Mirror, Dome and Reading Lamp, Quarter Courtesy Lamps
29 WIPER — Wiper Switch
30 TURN SIGNAL — Turn, Signal Flasher
32 POWER LOCKS — Door Lock-Relay
37 AUXILIARY POWER
38 RADIO — Radio, Steering Wheel Radio Switches
39 I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module – (SDM), TCCBrake Switch, Instrument Cluster, Chime Module, Second Gear Start Switch, Head-Up Display (HUD) Switch, Daytime Running Lamps Module (with DRL)

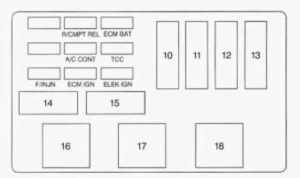

Underhood Electrical Center – Passenger Side

Oldsmobile Cutlass Supreme - fuse box diagram - passengers side underhood electrical center
Oldsmobile Cutlass Supreme – fuse box diagram – passengers side underhood electrical center
Fuse Usage
R/CMPT REL Remote Trunk Release, Back-up Lamps
ECM BAT Powertrain ConuoJ Module (PCM) Fuel Pump, Fud Pump Relay, Fan Cont#1 Relay
ENG EMIS Fan Cont #2 Relay, A/C CMPR
Relay (VIN M only)
TCC Automatic Transaxle, Transaxle Range Switch (VIN M only)
F/INJN Fuel Injectors
ECM IGN Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, VAC CAN SW
ELEK IGN Electronic Ignition (El) Control Module
10 I/P Fuse Block
11 FAN CONT #1 Relay
12 Passenger Side Underhood Electrical Center and UP Fuse Blocks: Fuses 5, 14,23 and 32
13 FAN CONT #2:Relay andIT P Fuse Block Fuse 16, Power Seat Circuit Breaker “D”



Relay Usage
14 FUEL PUMP
15 A/C CMPR
16 FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17 FAN CONT #1 — Primary Cooling Fan (Driver Side)
18 Ignition Switch Relay

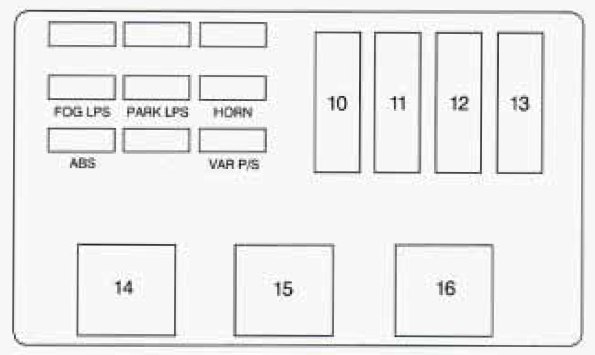

Underhood Electrical Center – Driver Side

Oldsmobile Cutlass Supreme - fuse box diagram - driver side underhood electrical center
Oldsmobile Cutlass Supreme – fuse box diagram – driver side underhood electrical center
Fuse Usage
FOG LPS Fog L.amps
PARK LPS Headlamp Switch
HORN Horn  Relay, Underhood Lamp
VA_R PIS EVO Steering
10 IGN SW2 — I/P Fuse Block: PWR WDO and Circuit Breaker ”D”‘; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses
11 IGN SW1 — I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses
12 HD L PS — Circuit Breaker to Headlamp Switch
13 ABS — ABS Relay



Relay Circuity
14 ABS — Anti-lock Brake System
15 POG LPS
16 HORN

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
