Oldsmobile Cutlass Supreme  (1994) – fuse box diagram

Oldsmobile Cutlass Supreme  (1994) – fuse box diagram

Year of production: 1994

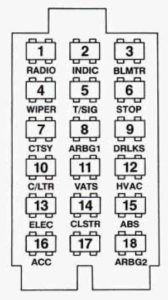

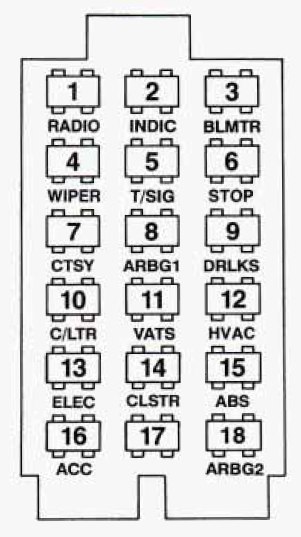

Glove Box Fuse Block

Oldsmobile Cutlass Supreme - fuse box diagram - glove box fuse block
Oldsmobile Cutlass Supreme – fuse box diagram – glove box fuse block
Fuse Ampere rating [A] Usage
1 10 Radio & Clock
2 10 Rear Defogger Timer Relay; Instrument Cluster; Chime Module; Cruise Control; DIU Module (Canada); ABS Lamp Driver Module; SIR
3 20 Blower Motor
4 25 Windshield Wiper & Washer
5 10 Turn Signals/Flasher
6 15 Brake Lights
7 10 Courtesy, Glove Box, Underhood, Trunk, Header Lights; Lighted Inside Rearview Mirror
8 15 SIR
9 20 Door Locks
10 15 Cigar Lighter
11 5 Vehicle Anti-Theft System (Pass-I Key I)
12 15 Blower Control Switch; Solenoid
13 15 Radio & Clock; Passive Restraint Lockout, Passive Restraint Timer; Chime Module; ABSV; ATS
14 15 Cluster; HVAC Controls; HUD; DRL
15 5 ABS Control Module
16 10 Power Door Lock Switch; Seat Belts; Power Outside Mirrors; Power Antenna
17 Not Used
18 5 SIR (crank)

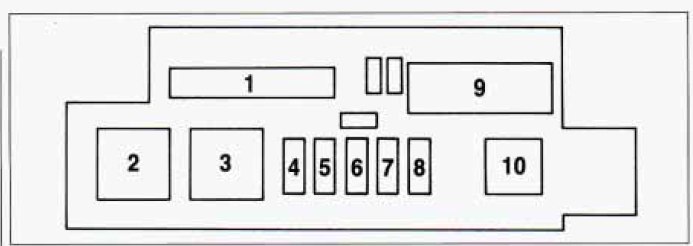

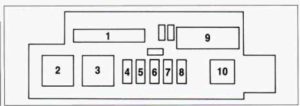

Component Center

Oldsmobile Cutlass Supreme - fuse box diagram - component center
Oldsmobile Cutlass Supreme – fuse box diagram – component center
Fuse Ampere rating [A] Usage
1 Defogger Timer Relay
2 Air Conditioner Blower Relay (HI) (Electronic AC only)
3 Air Conditioner Blower Relay (LO) (Electronic AC only)
4 30 Rear Defogger Circuit Breaker
5 30 Power Accessories Circuit Breaker
6 30 Power Windows and Sunroof Circuit Breaker
7 Not Used
8  20 Lock Control
9 Chime Module
10 Hazard Flasher

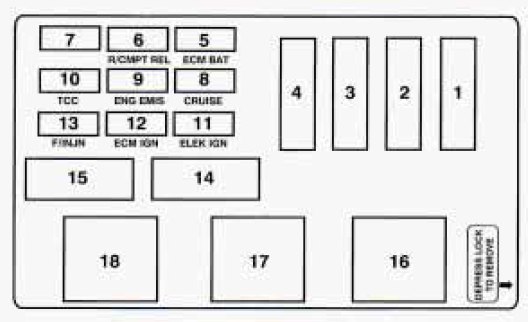

Passenger Side Underhood Electrical Center

Oldsmobile Cutlass Supreme - fuse box diagram - passengers side underhood electrical center
Oldsmobile Cutlass Supreme – fuse box diagram – passengers side underhood electrical center
Fuse Ampere rating [A] Usage
1  60 Instrument Panel
2 60 Instrument Panel
3 60 Cooling Fan
4  60 Instrument Panel
5  20 ECM; Fuel Pump
6  15 Trunk Release
7 Not Used
8 15 Cruise Control; Air Conditioner (3.4L Only)
9  15 Engine Emission Controls
10 15 Transmission Torque Converter Clutch
11 15 Electronic Ignition System
12 15 ECM
13 15 Fuel Injectors



Relay Usage
14 Air Conditioner Compressor
15 Fuel Pump
16 Not Used
17 Driver Side Engine Cooling Fan Control
18 Passenger Side Engine Cooling Fan Control

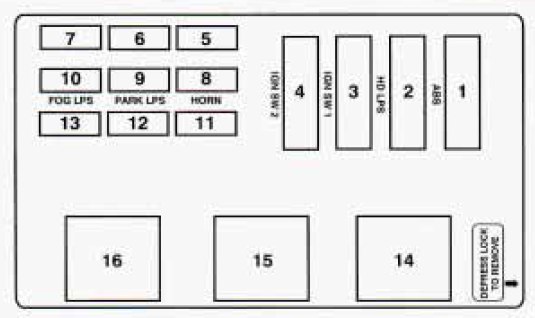

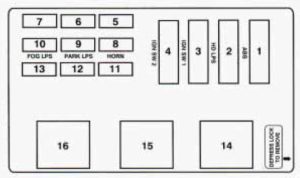

Driver Side Underhood Electrical Center

Oldsmobile Cutlass Supreme - fuse box diagram - driver side underhood electrical center
Oldsmobile Cutlass Supreme – fuse box diagram – driver side underhood electrical center
Fuse Ampere rating [A] Usage
1 60 ABS
2 30 Headlamp Circuit Breaker
3 40 Ignition Switch
4 40 Ignition Switch
5 Not Used
6 Not Used
7 Not Used
8 15 Horn
9 25 Park Lamps
10 200 Fog Lamps
11 Not Used
12 Not Used
13 Not Used



Relay Circuity
15 Horn
16 Fog Lights
17 ABS

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
