Oldsmobile Achieva (1995) – fuse box diagram

Oldsmobile Achieva (1995) – fuse box diagram

Year of production: 1995

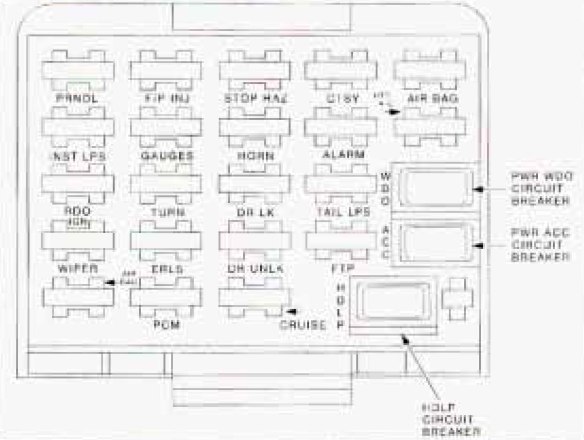

Fuse diagram

Oldsmobile Achieva - fuse box diagram
Oldsmobile Achieva – fuse box diagram
Fuse Circuitry
PRNDL Back-up Lights, Electronic PRNDL (automatic transaxle
F/P INJ Fuel Pump, Fuel Injectors
STOP HAZ Hazard/Stop Lights
CTSY Power Door Locks, Power Mirrors, Cigar Lighter
AIR BAG Supplemental Inflatable Restraint
INST LPS Instrument Panel Lights
GAUGES Rear Window DefoggerG, Gauges, Warning Lights
HORN Horn, Fog Lamps
ALARM Chime, Interior Lights, Automatic Door Locks, Remote Lock Control
HTR-A/C Heater, Air Conditioning, Anti-Lock Brakes (ABS), Daytime Running Lamps (DRL) (Canada)
RDO Radio
TURN Turn Signals
DR LK Automatic Door Locks
TAIL LPS Fog Lamps, Tail Lamps, Marker Lamps, License Lamp
WDO Power Windows, Sunroof (Circuit Breaker)
WIPER Windshield Wiper/Washer
ERLS Engine Controls, Back-up Lights
DR UNLK Automatic Door Unlock (Remove to Disable)
FTP Flash-to-Pass (U.S.)
ACC Rear Window Antenna, Power Seats, Rear Window Defogger, Power Sunroof (Circuit Breaker)
AIR BAG Supplemental Inflatable Restraint
PCM Powertrain Control Module, Ignition System
CRUISE Cruise Control
HDLP Headlamps (Circuit Breaker)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
