Audi A3 (2015) – fuse box diagram

Audi A3 (2015) – fuse box diagram

Year of production: 2015

Instrument panel

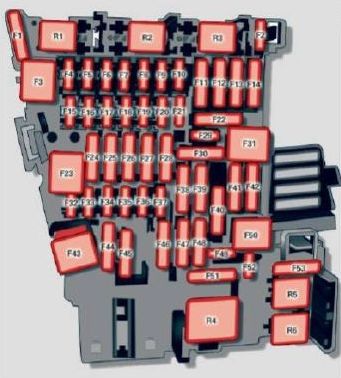

Audi A3 - wiring diagram - fuse box diagram - instrument panel
Audi A3 – wiring diagram – fuse box diagram – instrument panel
Number Equipment Ampere rating [A]
F1 Engine components 30
F2 Seat adjustment 10
F3 Hydraulic pump cover (Cabriolet) 40
F4 MM controls, MMI-components 7,5
F5 Gateway 5
F6 Anti-theft alarm system 5
F7 Climate/heating control, selector lever (automatic transmission), parking heater, rear window heater relay coil 10
F8 Diagnosis, electrical parking brake switch, light switch, rain/light sensor, interior lighting 10
F9 Steering column switch module 1
F10 Display 5
F11 Reversible driver’s side safety belt tensioners 25
F12 MMI area 15
20
F13 Adaptive dampers control module 20
F14 Climate control system blower 30
F15 Electronic steering column lock 10
F16 MMI area 7,5
F17 Instrument cluster 5
F18 Rearview camera 7,5
F19 Convince key system control module, tank system 7,5
F20 Tank system 7,5
F21
F22
F23 Exterior lighting, heated washer fluid nozzles 40
F24 Panorama sunroof/ power top control modu le, power top latch (Cabriolet) 20
30
F25 Door/dr iver’s side doors (for example power windows) 30
F26 Seat heating 30
F27 Sound-amplifier 30
F28 Power top control module, electronics (Cabriolet) 5
F29 Interior lights 7,5
F30
F31 Exterior lighting 40
F32 Driver assistance systems 7,5
F33 Airbag 5
F34 Button illumination, coils for upper cab in heating relay (Cabriolet) and socket relay, interior sound, back-up light switch, temperature sensor, oil level sensor 7,5
F35 Diagnosis, headlight range control system, air quality sensor, automatic dimming rearview mirror 10
F36 Right cornering light/ right LED-headlight 15
F37 Left cornering light/ left LED-head light 15
F38
F39 Door/front passenger’s side doors (for example, power windows) 30
F40 Sockets 20
F41 Reversible front passenger’s side safety belt tensioners 25
F42 Central locking components, windshield washer system 40
F43 Headlights , lighting 30
F44 All wheel drive 15
F45
F46
F47
F48
F49 Starter, clutch sensor, head light relay coil 5
F50
F51
F52
F53 Rear window defogger 30



Engine compartment

Audi A3 - wiring diagram - fuse box diagram - engine compartment
Audi A3 – wiring diagram – fuse box diagram – engine compartment
Number Equipment Ampere rating [A]
F1 ESC control module 40
F2 ESC control module 40
F3 Engine control module (gasoline/diesel) 15
30
F4 Engine cooling, engine components, auxiliary heater coil relay (1+2), secondary air injection pump relay 5
10
F5 Engine components, tank system 7,5
10
15
F6 Brake light sensor 5
F7 Engine components, water pumps 7,5
10
15
F8 Oxygen sensor 10
15
F9 Engine components, exhaust door, glow time control module, SULEV valve 5
10
20
F10 Fuel injectors, fuel control module 15
20
F11 Auxiliary heater heating element2 40
F12 Auxiliary heater heating element3 40
F13 Automatic transmission control module 15
30
F14
F15 Horn 15
F16 Ignit ion coil 5
20
F17 ESC contro l module, engine control module 7,5
F18 Terminal 30 (reference voltage) 5
F19 Windshield wipers 30
F20 Horn 10
F21
F22 Terminal SO diagnosis 5
F23 Starter 30
F24 Auxiliary heater heat ing element 1 40
F25
F26
F27
F28
F29
F30
F31 Vacuum pump 15
F32 LED headlights 5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
