Oldsmobile 98 (1979) – fuse box diagram
Year of production: 1979

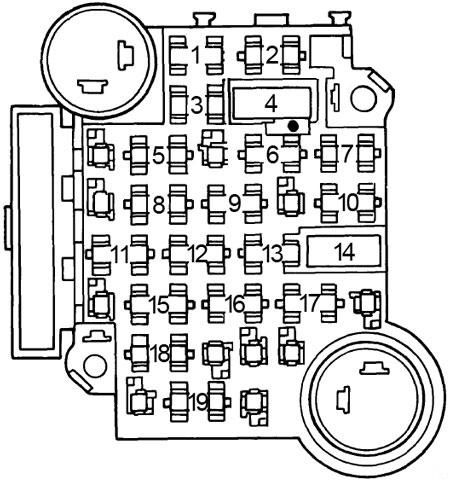

Fuse box diagram
| No. |
A |
Circuit Protected |
| 1 | 5 | Instrument panel, cruise control and fuel economy lights |
| 2 | – | – |
| 3 | – | – |
| 4 | 30 | Circuit breaker: Electric windows |
| 5 | – | – |
| 6 | 25 | Electronic level option, heater and air conditioner |
| 7 | – | – |
| 8 | 5 | Diesel control |
| 9 | 25 | Windshield wipers |
| 10 | 20 | Stop and hazard warning lights |
| 11 | 20 | Generator and parking brake lights, seat belt warning, cruise control, pulse wiper and rear defogger timer |
| 12 | 20 | Cornering, tail, side marker, license and underhood lights |
| 13 | 10 | Radio and tape player |
| 14 | 30 | Circuit breaker: Station wagon rear window and power tailgate, door and seat back locks, power seats and rear window defogger power |
| 15 | 20 | Turn signal and backup lights |
| 16 | 20 | Clock power antenna, front cigar lighter, console and courtesy lights |
| 17 | 20 | Dome, trunk, ¼ panel, rear cigar lighter lights; radio capacitor |
| 18 | – | – |
| 19 | – | – |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
