Nissan Altima (2013 – 2018) – fuse box diagram

Nissan Altima (2013 – 2018) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016, 2017, 2018

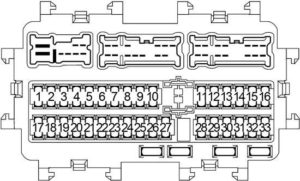

Passenger Compartment Fuse Box

Nissan Altima - fuse box diagram - passenger compartment
Nissan Altima – fuse box diagram – passenger compartment
No.
A
Circuit Protected
1 10 Auto Light System, Back-up Lamp, BCM (Body Control Module), CVT Control System, Daytime Light System, Door Mirror, Engine Control System, Front Fog Lamp, Front Wiper and Washer System, Homelink Universal Transceiver, Headlamp, Illumination, Intelligent Key System, Inside Mirror, Interior Room Lamp, NVIS, Moonroof, Parking Lamps, License Plate Lamps, Tail Lamps, Power Distribution System, Power Door Lock System, Power Window System, Rear Window Defogger, Tire Pressure Monitoring System, Turn Signal and Hazard Warning Lamps, Vehicle Security System, Warning Chime System
2 10 Heated Steering Wheel
3 15 BCM (Body Control Module), Intelligent Key System, Power Door Lock System, Power Window System, Vehicle Security System
4 15
5 10
6  –
7  –
8  –
9 5 BCM (Body Control Module), Door Mirror, NVIS, Intelligent Key System, Power Distribution System, Tire Pressure Monitoring System
10 10 Back-up Lamp, BCM (Body Control Module), Brake Control System, CVT Shift Lock System, Engine Control System, Intelligent Key System, Power Distribution System, Stop Lamp, Intelligent Key System, NVIS, Power Distribution System
11  –
12 15 BOSE Audio: Display Audio System, Navigation System
13 10 CVT Control System, Daytime Light System, Front Fog Lamp, Headlamp, Illumination, Intelligent Key System, Combination Meter, NVIS, Parking Lamps, License Plate Lamps, Tail Lamps, SRS Air Bag Control System, Tire Pressure Monitoring System, Turn Signal and Hazard Warning Lamps, Vehicle Security System, Warning Chime System
14 5 Air Conditioner Control
15 20 BASE Audio System, Display Audio System, Navigation System, Driver Assistance System
16 5 BCM (Body Control Module), Power Distribution System
17 15 Air Conditioner Control, Power Distribution System, BCM (Body Control Module)
18  –
19 15 Power Distribution System
20 20 Power Socket
21 20 Power Socket
22 10 Rear Window Defogger, BCM (Body Control Module)
23 15 Rear Window Defogger, BCM (Body Control Module)
24 15 Rear Window Defogger, BCM (Body Control Module)
25 5 Accessory Relay 2
26 5
27 15 Air Conditioner Control, Power Distribution System, BCM (Body Control Module)
28 15 Heated Seat
29 5 CVT Control System, Driver Assistance System, Engine Control System, Navigation System
30 10 Air Conditioner Control, Compass, Heated Steering Wheel, Homelink Universal Transceiver, Inside Mirror, Power Distribution System, Rear Window Defogger, Engine Control Module, Power Distribution System
31 5 Brake Control System, Charging System, CVT Control System, Daytime Light System, Electronically Controlled Power Steering System, Engine Control System, Front Fog Lamp, Headlamp, Illumination, Combination Meter, Parking Lamps, License Plate Lamps, Tail Lamps, SRS Air Bag Control System, Tire Pressure Monitoring System, Turn Signal and Hazard Warning Lamps, Warning Chime System
32 10 SRS Air Bag Control System
33  –

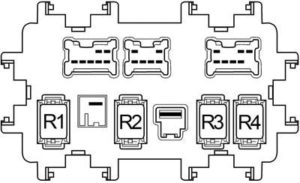

Nissan Altima - fuse box diagram - passenger compartment
Nissan Altima – fuse box diagram – passenger compartment
No.
Relay
R1 Ignition 2
R2 Blower Motor
R3 Rear Window Defogger
R4 Accessory 1

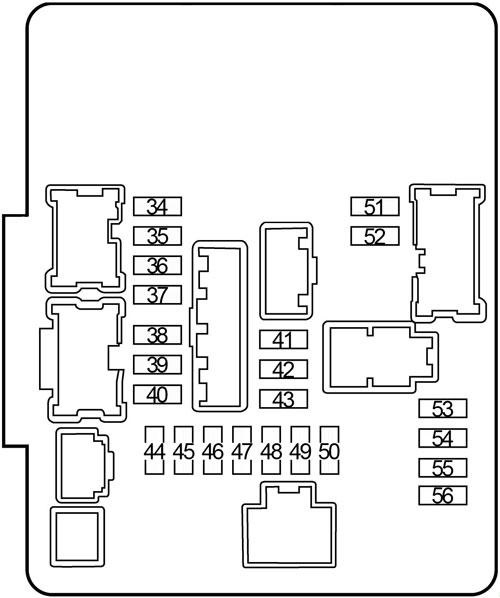

Engine Compartment Fuse Box (No.1)

Nissan Altima - fuse box diagram - engine compartment
Nissan Altima – fuse box diagram – engine compartment
No.
A
Circuit Protected
34 10 Headlamp High, Auto Light System, Daytime Light System
35 10 Headlamp High, Auto Light System, Daytime Light System
36 15 Headlamp Low, Auto Light System, Daytime Light System
37 15 Headlamp Low, Auto Light System, Daytime Light System
38 10 Engine Control Module
39 10 Engine Control Module
40 15 Engine Control Module
41 30 Front Wiper Relay
42 15 Front Fog Relay
43 10 Auto Light System, Daytime Light System
44 15 Engine Control Module
45 10 Engine Control Module
46 10 BCM (Body Control Module), CVT Control System, Engine Control System, Intelligent Key System, NVIS, Starting System
47 15 Fuel Pump Relay
48 10 Engine Control Module
49 10 Brake Control System, Electronically Controlled Power Steering System
50 10 BCM (Body Control Module), Driver Assistance System,  Front Wiper and Washer System
51 10 Parking Lamps, License Plate Lamps, Tail Lamps
52 10 Auto Light System, Parking Lamps, License Plate Lamps, Tail Lamps
53 10 Air Conditioner Relay
54  –
55 15 Throttle Control Motor Relay
56 10 Engine Control Module

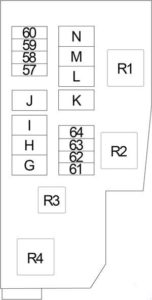

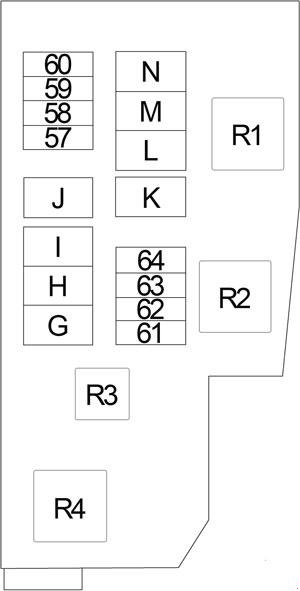

Engine Compartment Fuse Box (No.2)

Nissan Altima - fuse box diagram - engine compartment
Nissan Altima – fuse box diagram – engine compartment
No.
A
Circuit Protected
57  –
58  –
59 10 BCM (Body Control Module), Intelligent Key System
60 10 CVT Control System
61  –
62 10 Charging System
63 15 Horn, Intelligent Key System, Vehicle Security System
64  –
G 40 Brake Control System
H 40 Brake Control System
I 40 Auto Light System, Back-up Lamp, Base Audo System, BCM (Body Control Module), CVT Shift Lock System, Door Mirror, Daytime Light System, Display Audio System, Front Fog Lamp, Front Wiper And Washer System, Headlamp, Illumination, Intelligent Key System, Interior Room Lamp, Moonroof, Navigation System, NVIS, Parking Lamps, License Plate Lamps, Tail Lamps, Power Distribution System, Power Door Lock System, Power Seat For Driver Side, Power Window System, Rear Window Defogger, Tire Pressure Monitoring System, Turn Signal And Hazard Warning Lamps, Trunk Lid Opener, Vehicle Security System, Warning Chime System
J  –
K  –
L 40 Engine Control Module
M 40 Ignition Relay 2 (Fuse: “28”, “29”, “30”, “31”, “32”)
N 40 Engine Control Module
Relay
R1 Cooling Fan 3
R2 Stop Lamp
R3 Horn
R4 Cooling Fan 1

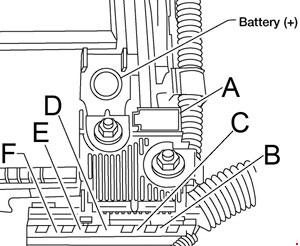

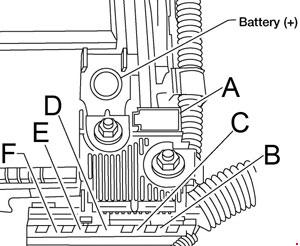

Fusible Link Block

Nissan Altima - fuse box diagram - fusible link block
Nissan Altima – fuse box diagram – fusible link block
No.
A
Circuit Protected
A 250 Generator, Starter, Fuse: “B”, “C”, “D”
B 100 Fuse: “59”, “60”, “62”, “63”, “G”, “H”, “I”, “L”, “N”
C 80 Headlamp High Relay (Fuse: “34”, “35”), Headlamp Low Relay (Fuse: “36”, “37”), Tail Lamp Relay (Fuse: “51”, “52”), Front Wiper Relay, Fuse: “42”, “43”
D 100 Power Steering Control Module
E 80 Engine Control Module Relay (Fuse: “38”, “39”, “40”), Ignition Relay 1 (A/C Relay, Cooling Fan Relay 1, Fuse: “44”, “45”, “46”, “47”, “48”, “49”, “50”), Fuse: “53”, “55”, “56”
F 100 Fuse: “1”, “2”, “3”, “4”, “9”, “10”, “12”. “13”, “14”, “15”, “16”

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
