Hyundai Santa Fe (2015 – 2016) – fuse box diagram

Hyundai Santa Fe (2015 – 2016) – fuse box diagram

Year of production: 2015, 2016

Instrument panel

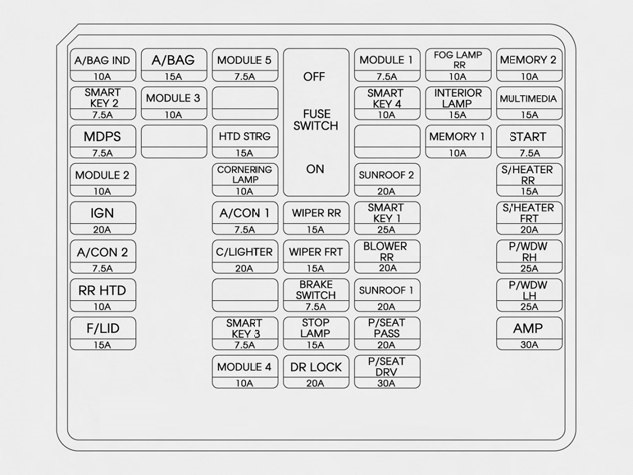

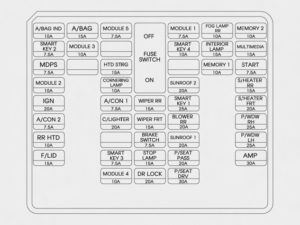

Hyundai Santa Fe – fuse box – instrument panel
Hyundai Santa Fe – fuse box – instrument panel
Description Ampere rating [A] Protected component
A/BAG IND 10 Instrument Cluster
A/BAG 15 ACU, A/C Control Module, Passenger Occupant Detection Sensor
MODULE 5 7,5 Sunroof_MTR, RAIN_SNSR,RR_BLOWER,PGS, AC_INVERTER_UNIT,Smart Key Control Module, BCM, Rear Seat Warmer LH/RH,Driver/Passenger Seat Warmer Module,
MODULE 1 7,5 Sport Mode Switch, Key Solenoid, Console Switch LH/RH,Rear Power Window Switch LH/RH
FOG LAMP RR 10 RR_FOG_LH/RH
MEMORY 2 10 BCM, Tire Pressure Monitoring Module, Electro Chromic Mirror, Driver/Passenger Door Module, Auto Light & Photo Sensor, Data Link Connector, A/C Control Module, Instrument Cluster, FRT_DRV_SEAT
SMART KEY 2 7,5 Smart Key Control Module, Immobilizer Module
MODULE 3 10 BCM, Instrument Cluster, Tire Pressure Monitoring Module, A/C Control Module, Driver/Passenger Door Module, ATM Shift Lever Indicator, Rear Seat Warmer LH/RH, 4WD ECU, Driver/Passenger Seat Warmer Module, MTS Module, Rear(SMART) Parking Assist Sensor LH/RH, A/V & Navigation Head Unit, Rear Parking Assist Sensor (Center)LH/RH, AMP, SAS_ESP,EPB_EXT, Electro Chromic Mirror, BSD
SMART KEY 4 10 Start/Stop Button Switch, Immobilizer Module
INTERIOR LAMP 15 Cargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Center Room Lamp, Personal Lamp LH/RH
MULTI MEDIA 15 Audio, A/V & Navigation Head Unit, MTS Module,D_CLOCK
MDPS 7,5 MDPS Unit
HANDLE HTD 15 Steering Wheel Switch
MEMORY 1 10 RF Receiver, Ignition Key III. & Door Warning Switch
START 7,5 W/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay)
With IMMO. or Smart Key : INHIBIT_SW(POSITION_SW)
MODULE 2 10 Crash Pad Switch, Multipurpose Check Connector, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Stop Lamp Switch,AFLS_UNIT, F_WATER_SNSR, GLOW_RLY_UNIT_METAL, FPAS_SNSR, DSL_BOX
SUNROOF 2 20 Sunroof_MTR
S/HEATER RR 15 Rear Seat Warmer LH/RH
IGN 20 E/R Fuse & Relay Box (Fuse – ABS 3, SENSOR 5, TCU)
A/CON 1 7,5 E/R Fuse & Relay Box (Blower Relay), A/C Control Module, Cluster Ionizer, DSL_BOX(PTC_RLY)
WIPER RR 15 Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch,BCM
SMART KEY 1 25 Smart Key Control Module
S/HEATER FRT 20 Driver/Passenger Seat Warmer Module
A/CON 2 7,5 A/C Control Module
C/LIGHTER 20 Front Power Outlet & Cigarette Lighter, Luggage Power Outlet
WIPER FRT 15 Multifunction Switch, E/R Fuse & Relay Box (Wiper HI Relay, IG2 Relay)
RR BLOWER 20 ICM Relay Box (RR BLOWER Relay)
P/WDW RH 25 Passenger Door Module, Rear Power Window Switch RH
RR DEFOGGER 10 A/C Control Module
BRAKE SWITCH 7,5 Smart Key Control Module, Stop Lamp Switch
SUNROOF 1 20 SUNROOF_MTR
P/WDW LH 25 Driver Safety Power Window Module, Driver Door Module, Rear Power Window Switch LH
FUEL LID 15 Fuel Fillar Door Switch (DOOR_EXT)
SMART KEY 3 7,5 Smart Key Control Module
STOP LAMP 15 Stop Signal Electronic Module
P/SEAT PASS 20 Passenger Seat Manual Switch, Passenger Lumbar Support Switch
AMP 30 AMP
MODULE 4 10 Audio, A/V & Navigation Head Unit, BCM, Overhead Console Lamp, AMP, MTS Module, Power Outside Mirror Switch, E/R Fuse & Relay Box (Power Outlet Relay),PGS,D_CLOCK
DR LOCK 20 Door Lock/Unlock Relay, Tail Gate Relay, ICM Relay Box (Dead Lock Relay)
P/SEAT DRV 30 Driver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch

Engine compartment fuse panel

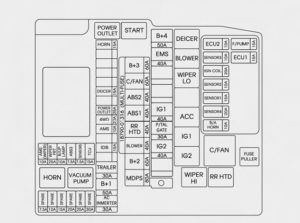

Hyundai Santa Fe – fuse box – engine compartment
Hyundai Santa Fe – fuse box – engine compartment
Relay number Relay Name Relay Type
E30 POWER OUTLET RELAY ISO MICRO
E31 START RELAY ISO MICRO
E32 FRONT DEICER RELAY ISO MICRO
E33 BLOWER RELAY ISO MICRO
E34 WIPER (LO) RELAY ISO MICRO
E35 COOLING FAN (LO) RELAY ISO MICRO
E36 ACC RELAY ISO MICRO
E37 IG1 RELAY ISO MICRO
E38 IG2 RELAY ISO MICRO
E39 COOLING FAN (HI) RELAY ISO MINI
E40 WIPER (HI) RELAY ISO MICRO
E41 REAR DEFOGGER RELAY ISO MICRO
E42 HORN RELAY ISO MICRO
E43 HEAD LAMP WASHER RELAY ISO MICRO



Description Ampere rating [A] Protected component
MULTI FUSE MDPS 80 MDPS Unit
B+2 60 Smart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse – SUNROOF 1, P/SEAT PASS, P/SEAT DRV), RR A/CON
BLOWER 40 Blower Relay
RR HTD 40 Rear Defogger Relay
ABS1 40 ESC Module, Multipurpose Check Connector
ABS2 40 ESC Module
C/FAN 60 Cooling Fan Relay
B+3 60 Smart Junction Box (Fuse – MODULE 1, SMART KEY 4, SUNROOF 2, SMART KEY 1, Leak Current Autocut Device)
FUSE B+4 50 Smart Junction Box (IPS 3 (4CH), IPS 6 (2CH), Fuse – F/LID, STOP LAMP, DR LOCK, BRAKE SWITCH), FUEL LID
EMS 40 EMS Box
C/FAN 50 Except Europe – RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI) Relay)
IG1 40 W/O Smart Key : Ignition Switch, With Smart Key – ACC Relay, IG1 Relay
IG2 40 Start Relay, IG2 Relay, W/O Smart Key : Ignition Switch
TRAILER 30 Trailer Power Outlet
B+1 50 Smart Junction Box (Fuse – S/HEATER RR, S/HEATER FRT, P/WDW RH, P/WDW LH)
HORN 15 Horn Relay
DEICER 15 Front Deicer Relay
POWER OUTLET 25 Power Outlet Relay
AC INVERTER 30 AC Inverter Module
P/TAIL GATE 30 Power Tail Gate Module
IDB 15 IDB Module
4WD 20 4WD ECM
AMS 10 Battery Sensor
AMS (WIPER) 10 BCM, PCM
WIPER FRT 25 Wiper LO Relay, Front Wiper Motor
B/UP LAMP 10 A/T – Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, Audio, A/V & Navigation Head Unit
ABS3 7,5 ESC Module
SENSOR5 7,5 PCM
TCU 15 A/T : Transaxle Range Switch
F/PUMP 15 Fuel Pump Relay
ECU1 15 PCM
ECU2 10 IDB Module
SENSOR3 10 Fuel Pump Relay
IGN COIL 20 Condenser, Ignition Coil #1/#2/#3/#4
SENSOR2 10 Purge Control Solenoid Valve, Variable Intake Solenoid Valve(G4KJ), Oil Control Valve #1/#2
SENSOR1 15 Oxygen sensor(#1/#2/#3/#4), PCM, Oxygen Sensor(Down), E/R Fuse & Relay Box (Cooling Fan Relay)
B/ALARM 10 Burgl Aralarm Horn Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
