Nissan Almera (2000 – 2006) – fuse box diagram
Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006
Passenger Compartment Fuse Box

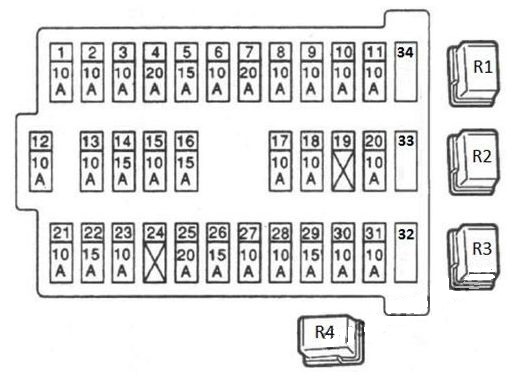

Front side

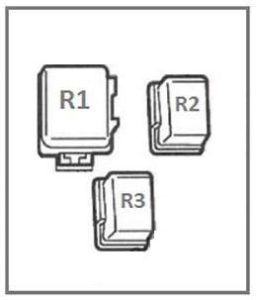

Rear side
№ | A | Component |
---|---|---|
1 | 10A | Mirrors |
2 | 10A | Brake lights |
3 | 15A | Socket |
4 | 7,5A | For additional electronic equipment |
5 | 15A | Alarms and indicators |
6 | 10A | Additional electric equipment |
7 | 20A | Rear window defogger |
8 | 10A | Oxygen Sensor |
9 | 10A | Additional electronic equipment |
10 | 10A | Electronic equipment |
11 | 10A | Automatic Transmission |
12 | 10A | ECU (turn signals, backlight and main power to the instrument panel, panel lighting) |
13 | 10A | Interior lamp |
14 | 15A | Interior fan (heater / air conditioning) |
15 | 10A | Air Conditioner |
16 | 15A | Fan (heater / air conditioner) |
17 | 10A | Fuel Injection System |
18 | 10A | Airbags |
19 | 20A | Additional electric equipment |
20 | 10A | Engine module |
21 | 10A | Start signal |
22 | 15A | Cigarette lighter |
23 | – | Not used |
24 | 20A | Additional electric equipment |
25 | 20A | Windshield wipers |
26 | 7,5A | Additional electric equipment |
27 | 15A | Front and/or rear window washer (on the stalk switch) |
28 | 15A | Rear window washer |
29 | 15A | Fuel pump |
30 | 10A | Speedometer, tachometer, temperature and fuel level indicators |
31 | 10A | ABS |
32 | 10A | Reserve |
33 | 15A | Reserve |
34 | 20A | Reserve |
Front side relay | ||
R1 | Headlight relay | |
R2 | Throttle Control Relays | |
R3 | Power windows relay | |
R4 | Rear fog light relay | |
Rear side relay | ||
R1 | Ignition relay | |
R2 | The supercharger relay | |
R3 | Additional equipment relay (electrical accessories) |
Engine compartment fuse panel
№ | A | Component |
---|---|---|
A | 100A | Generator (battery charging) |
B | 40A | Power windows |
C | 40A | Cooling fans |
D | 40A | Cooling fans |
E | 30A | For diesel engines |
F | 60A | For diesel engines |
G | 80A | For diesel engines |
H | 80A | Main power supply, grounding circuit |
I | 50A | ABS |
J | 30A | To the battery ignition switch |
K | 30A | ABS/ESP |
L | 30A | ESP |
M | 30A | Headlight washer |
32 | 20A | Rear window washer |
33 | 15A | Fog lights |
34 | 15A | Electric drive and throttle actuator relay |
35 | 15A | Headlamps, daytime running light |
36 | 15A | Headlamps, daytime running light |
37 | 10A | Rear fog light |
38 | 10A | Parking lights, license plate lighting |
39 | 10A | Horn, battery charging |
40 | 15A | Audio, navigation, LCD display |
41 | 10A | Engine management system |
42 | 10A | Ignition coil |
43 | 15A | Not used |
44 | 10A | Not used |

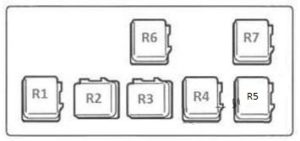

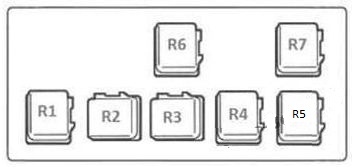

Relay block
№ | Relay |
---|---|
R1 | Cooling fan relay 3 (25221E) |
R2 | Front fog lights (25224QA) |
R3 | Air conditioner relay E6 (25224D) |
R4 | Horn relay (25620) |
R5 | Cooling fan relay (25224J) |
R6 | Lights (25224A) |
R7 | Starter (25224G) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
