Mercury Monterey (2004 – 2007) – fuse box diagram

Mercury Monterey (2004 – 2007) – fuse box diagram

Years of production: 2004, 2005, 2006, 2007

Passenger compartment fuse panel

The fuse panel is located below and to the left of the steering wheel by the brake pedal.

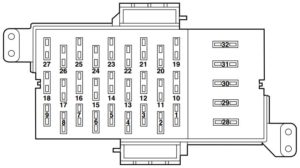

Merucry Monterey – fuse box – passenger compartment
Merucry Monterey – fuse box – passenger compartment
Fuse/relay Ampere rating [A] Description
1 15 Audio, CD changer
2 5 Audio
3 7,5 Mirrors
4 10 Air bags
5 Not used
6 15 Instrument cluster warning lamps module, Overdrive control switch, Lighting Control Module (LCM), Police vehicle option
7 10 Driver’s Door Module (DDM), Premium radio
8 25 Powertrain Control Module (PCM) power relay, Coil-on plugs, Radio noise capacitor, Passive Anti-Theft System (PATS)
9 5 Transmission range sensor
10 10 Rear window defrost, Heated mirrors
11 5 Traction control indicator relay (ABS w/traction control only)
12 15 Multi-function switch for turn/hazard lamps
13 5 Radio (premium only)
14 10 Anti-lock Brake System (ABS), Instrument Cluster
15 15 Speed control, Police vehicle option, LCM, Clock, EATC blower motor relay, Door lock switch illumination
16 15 Reversing lamps, Shift lock, DRL module, VAP Steering, Electronic day/night mirror, Overhead console, Air suspension, Climate control, Speed chime module (GCC only)
17 7,5 Wiper motor
18 15 Fog lamps (Marauder only)
19 15 Brake lamps
20 Not used
21 15 LCM for park lamps and interior illumination, Autolamp/Sunload sensor
22 20 Speed control servo, Multi-function switch for hazard lamps, Brake on/off switch
23 15 EATC module, Instrument cluster, Clock, LCM, Interior lamps, Door lock switches
24 10 Left-hand low beam
25 15 Cigar lighter
26 10 Right-hand low beam
27 15 LCM for cornering lamps and high beam headlamps, Police vehicle option
28 20* Power windows, DDM
29 Not used
30 Not used
31 Not used
32 Not used
* Circuit breaker

Power distribution box

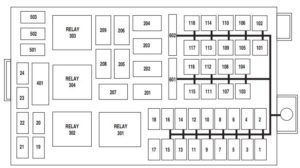

Merucry Monterey - fuse box - power distribution box
Merucry Monterey – fuse box – power distribution box

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.

Fuse/relay Ampere ratomg [A] Description
1 25* Audio
2 20* Power point
3 Not used
4 15* Horns
5 20* Fuel pump
6 Not used
7 Not used
8 20* Driver’s Door Module (DDM)
9 Not used
10 Not used
11 20* Daytime running lamps
12 Not used
13 Not used
14 Not used
15 Not used
16 Not used
17 Not used
18 Not used
19 15* Powertrain Control Module (PCM), Fuel injectors
20 15* PCM, HEGOs
21 Not used
22 Not used
23 Not used
24 Not used
101 30** Ignition switch
102 50** Cooling fan (engine)
103 40** Blower motor
104 40** Heated backlight relay
105 30** PCM power relay
106 40** Anti-lock Brake System (ABS)
107 Not used
108 Not used
109 Not used
110 Not used
111 Not used
112 50** Ignition switch
113 50** Feeds IP fuses 3, 5, 21, 23, 25, 27
114 30** VAP Steering, Air suspension compressor, Instrument cluster
115 50** Ignition switch
116 30** Wipers
117 Not used
118 20** ABS
201 1/2 ISO Horn relay
202 1/2 ISO PCM relay
203 1/2 ISO Fuel pump relay
204 1/2 ISO A/C clutch relay
205 1/2 ISO Traction control relay
206 1/2 ISO Police vehicle relay
207 1/2 ISO Fog lamp relay (Marauder only)
208 Not used
209 1/2 ISO Fog FTP relay (Marauder only)
301 Full ISO Blower motor relay
302 Full ISO Starter solenoid relay
303 Full ISO Air suspension relay
304 Full ISO Heated backlight relay
401 Not used
501 Diode PCM diode
502 Not used
503 Not used
601 Not used
602 20** Adjustable pedals, Power seat, Locks, Decklid, Lumbar
* Mini fuse ** Circuit breaker/Maxi fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
