Hyundai Porter (AH) (1986 – 1996) – fuse box diagram

Hyundai Porter (AH) (1986 – 1996) – fuse box diagram

Year of production: 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Fuse box

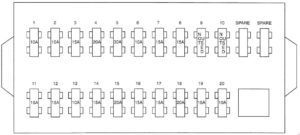

Hyundai Porter – fuse box diagram
Hyundai Porter – fuse box diagram
No. A Circuits
1 10 Except EC: Driver’s room lamp, Door warning switch, Step lamp, Defogger relay
Only EC: Cluster, Multifunction switch, Digital Clock, Audio, Key lamp timer
2 10 Except EC: Stop lamp switch, Power window relay
2 15 Only EC: Hazard switch
3 15 Except EC: Horn, Tail lamp relay
Only EC: Stop lamp switch, Horns
4 20 Except EC: Defoqqer relay, Defoqqer timer
Only EC: Defogger timer
5 30 Except EC: Rear blower relay
Only EC: Not Used
6 10 Except EC: Back up lamp switch, Cluster, ETACS, TACM
Only EC: Back up lamp switch, Choke relay, Hazard switch, Cluster
7 15 Except EC: Head lamp (RH), Cluster
Only EC: Cluster, Head lamp (RH), Head lamp leveling actuator (RH, LH)
8 15 Head lamp (LH)
9 Not Used
10 Not Used
11 15 Except EC: Rear ciqarette liqhter
Only EC: Audio, Clock, Cigarette lighter, Key lamp timer
12 15 Except EC: Front ciqarette liqhter, Clock, Audio
12 10 Only EC: D.R.L control module, Head lamp relay
13 10 Except EC: Head lamp relay, ETACS.TACM, ABSCM, Rear blower relay
13 15 Only EC: Washer motor, Wiper motor, Intermittent wiper relay, Rear Wiper motor
14 15 Except EC: Wiper motor, Washer motor, Rear wiper motor, Rear washer motor
14 20 Only EC: Blower control switch
15 20 Except EC: Blower control switch
15 10 Only EC: Rear fog lamp switch
16 15 Except EC: Fog lamp (LH), Fog lamp (RH)
16 20 Only EC: Power window main switch
17 15 Except EC: Hazard switch
Only EC: Power window switch (RH)
18 20 Except EC: Power window main switch
18 10 Only EC: Rear combination lamp (LH), Head lamp (LH), Cluster
19 15 Except EC: Power window switch (RH)
19 10 Only EC: Audio, A/C switch, Defogger switch, Head lamp (RH), Clock
20 10 Except EC: Tail gate lock switch
Only EC: Door lock control relay, Tail gate lock switch

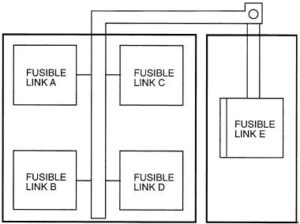

Hyundai Porter – fuse box diagram
Hyundai Porter – fuse box diagram
No. A Circuits
A 40 Diesel: Generator, Fuses No. 1,2,3,7,8, Tail lamp relay, Head lamp relay
EC with MFI: Generator, Fuses No. 1,2,3,7,8, Tail lamp relay, Head lamp relay, MFI control relay, Condenser
В 40 Ignition switch
С 30 Fuses No. 4, 20
D 30
401)
Power window relay, A/C fuse
E 60
802)
Generator, ABS modulator (with ABS)
1) With power window

Except EC with Diesel, Except EC with MFI

No. A Circuits
A 40 Diesel: Generator, Fuses No. 1,2,3,16,17, Head lamp relay
EC with MFI: Generator, Fuses No. 1,2,3,16,17, Tail lamp relay, Head lamp relay, MFI control relay, Condenser
В 40 Ignition switch
С 301)
402)
503)
With ABS: ABS modulator
Without ABS: Fuses No. 4,5
D 303)
504)
Power window relay, A/C fuse, Fuses No. 20 (with ETACS)
E 603)
804)
Generator, ABS modulator (with ABS)
1) ETACS, Without ABS
2) ETACS, With ABS
3) TACM
4) ETACS

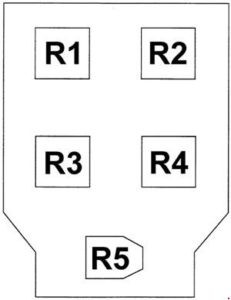

Hyundai Porter – fuse box diagram
Hyundai Porter – fuse box diagram
No. Relay
R1 Tail lamp relay
R2 Only EC: Power windows relay
Except EC: Rear blower relay
R3 Head lamp relay
R4 Only EC: Not Used
Except EC: Defogger relay
R5 Flasher Unit

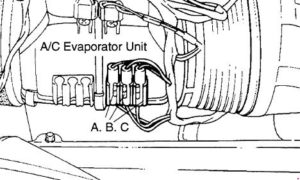

Hyundai Porter – fuse box diagram
Hyundai Porter – fuse box diagram
No. A Circuits
A 10 Power Relay
В 20 Condenser Fan Motor Relay (Tandem)
С 15 Condenser Fan Motor Relay (Side)

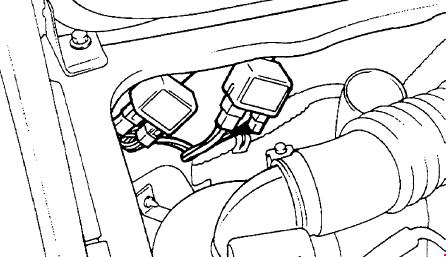

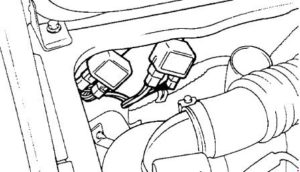

Starter relay

Hyundai Porter – fuse box diagram – starter relay
Hyundai Porter – fuse box diagram – starter relay

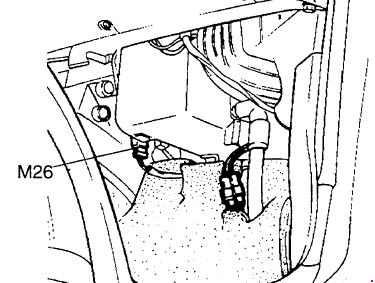

Power window relay

Hyundai Porter – fuse box diagram – power windows relay
Hyundai Porter – fuse box diagram – power windows relay

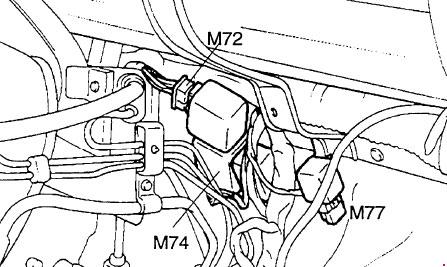

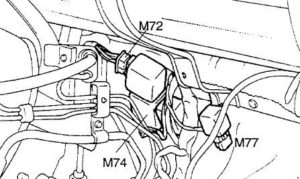

Wiper intermittent relay (M74), Relay with diode (M77), Defoqqer relay (M72)

Hyundai Porter – fuse box diagram – Wiper intermittent relay (M74), Relay with diode (M77), Defoqqer relay (M72)
Hyundai Porter – fuse box diagram – Wiper intermittent relay (M74), Relay with diode (M77), Defoqqer relay (M72)

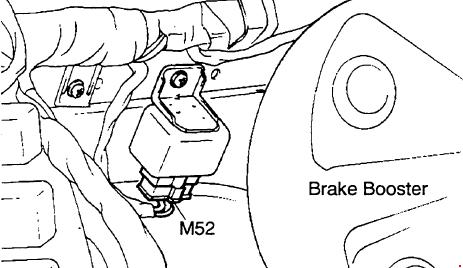

MFI control relay

Hyundai Porter – fuse box diagram – MFI control relay
Hyundai Porter – fuse box diagram – MFI control relay

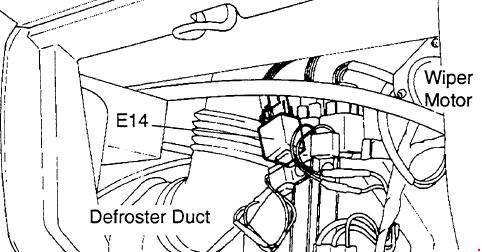

W.T.S. relay

Hyundai Porter – fuse box diagram – W.T.S. relay
Hyundai Porter – fuse box diagram – W.T.S. relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
