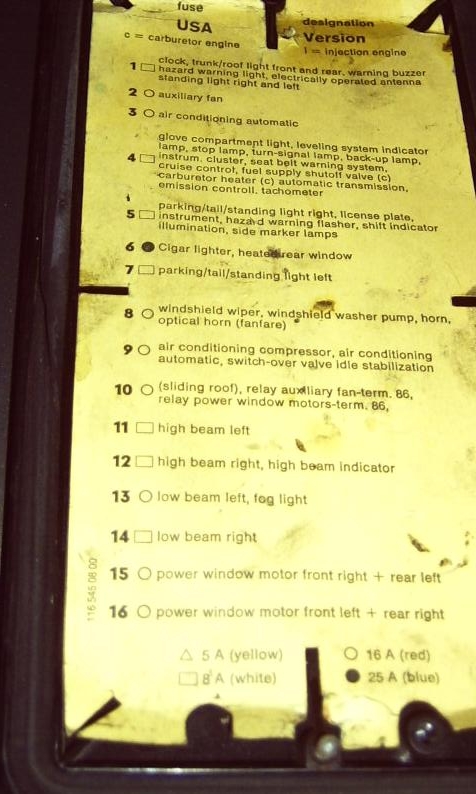

Mercedes-Benz S Class w116 – fuse box (116 545 06 00) – USA version
Year of production:
Fuse box
Fuse | Ampere rating [A] | Colour | Description |
1 | 8 | white | Clock, trunk/roof light front and rear, warning buzzer hazard warning light,electrically operated antenna standing light right and left |
2 | 16 | red | Auxiliary fan |
3 | 16 | red | Air conditioning automatic |
4 | 8 | white | Glove compartment light, leveling system indicator lamp, stop lamp. turn signal lamp, back-up lamp, instrum. cluster, seat belt warning system, cruise control, fuel supply shutoff valve (c) carburetor heater (c) automatic transmission, emission control I, tachometer |
5 | 8 | white | Parking/tail/standing light right, license plate instrument, hazard warning flasher, shift indicator illumination, side marker lamps |
6 | 25 | blue | Cigar lighter, heated rear window |
7 | 8 | white | Parking/tail/standing light left |
8 | 16 | red | Windshield wiper, windshield washer pump, horn, optical horn (fanfare) |
9 | 16 | red | Air conditioning compressor, air conditioning automatic, switch-over, valve idle stabilization |
10 | 16 | red | (Siliding roof), relay auxiliary fan-term. 86, relay power window motors-term. 86 |
11 | 8 | white | High beam left |
12 | 8 | white | High beam right, high beam indicator |
13 | 16 | red | Low beam left, fog light |
14 | 8 | white | Low beam right |
15 | 16 | red | Power window motor front right + rear left |
16 | 16 | red | Power window motor front left + rear right |
c = carburetor engineI = injection engine |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
