Dodge Sprinter (2004) – fuse box diagram

Year of production: 2004

Fuse Assignment, Standard Equipment

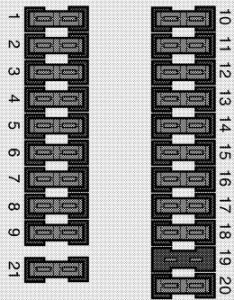

Dodge Sprinter - wiring diagram - fuse box - fuse assignment (standard equipment)
Dodge Sprinter – wiring diagram – fuse box – fuse assignment (standard equipment)
Number Ampere rating [A] Circuits
1 10 Parking lamp right, taillamp right
2 10 High beam head lamp,right
3 10 High beam head lamp, left, high beam indicator lamp
4 10 Backup lamp
5 10 Brake lamp
6 20 Windshield wiper motor
7 15 Horn, heated rear window, air recirculation switch, optional equipment relay (terminal 15)
8 20 Interior lighting, cigarette lighter, radio (terminal 30)
9 15 Clock, hazard warning lamps, parking lamps
10 10 Instrument lighting, license plate lamp daytime driving lamps
11 10 Side lamp, left; taillamp, left
12 10 Low beam headlamp, right
13 10 Low beam headlamp, left
14 15 Fog lamp
15 10 Radio (terminal 15)
16 25 Engine control unit
17 15 Engine control unit
18 15 Ignition (terminal 15)
19 15 Not in use
20 15 Heater controls (terminal 30)
21 30 Heater blower (terminal 30)

Relay Assignment, Standard Equipment

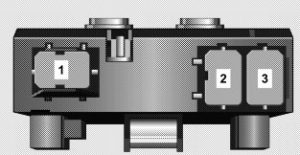

Dodge Sprinter - wiring diagram - fuse box - relay assignment (standard equipment)
Dodge Sprinter – wiring diagram – fuse box –
relay assignment (standard equipment)
Number Circuits
1 Windshield wiper motor (W)
2 Diesel engine control unit (M)
3 Turn signals (B)



Fuse, Relay, and Diode Assignments – Optional Equipment

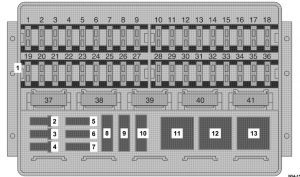

Dodge Sprinter - wiring diagram - fuse box - fuse, relay and diode assignment (optional equipment)

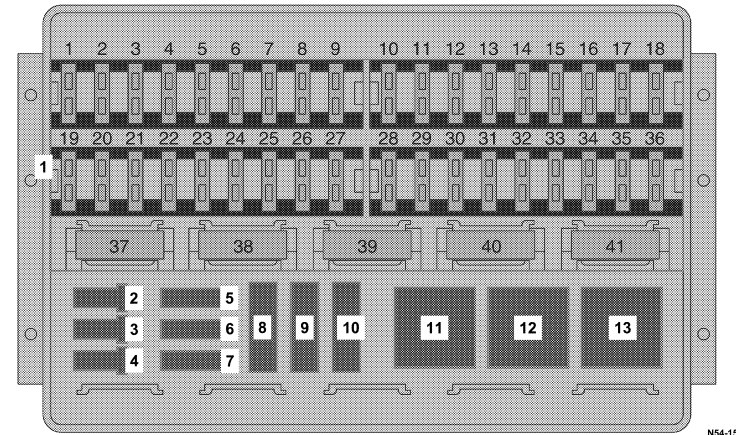

Dodge Sprinter – wiring diagram – fuse box –
fuse, relay and diode assignment (optional equipment)
Number Circuits
1 Not in use
2 Not in use
3 Not in use
4 Not in use

Fuses

Number Ampere rating [A] Circuits
5 10 Immobilizer
6 7,5 Anti-lock brake system (ABS)
7 25 Anti-lock brake system (ABS)
8 40 Not in use
9 40 Anti-lock brake system (ABS)
10 Not in use

Relays

Number Circuits
11 Not in use
12 Starter relay
13 Not in use

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
