Isuzu Amigo (2000) – fuse box diagram

Isuzu Amigo (2000) – fuse box diagram

Year of production: 2000

Dash fuse box

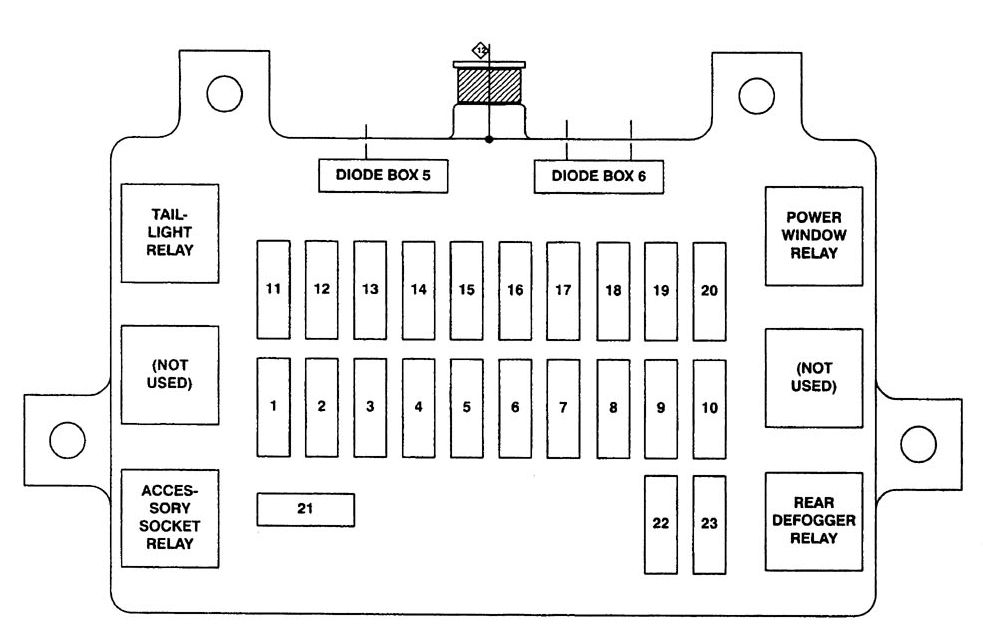

Isuzu Amigo - fuse box dash
Isuzu Amigo – fuse box dash
No Fuse Name A Circuit Protected
1 ACC. SOCKET 20 Accessory sockets, Dash fuse box
2
3 (ANTI THEFT) 10 Anti-theft and keyless entry system, Dash fuse box
4 TAIL/ILLUMI LIGHT 15 A/T shift indicator, Alarm and relay control unit, Dash and console lights, Dash fuse box, Engine controls, Exterior lights, Interior lights, lighting switch details, Seat belt, Key-in ignition warning system, Trailer adapter
5 DOME LIGHT 10 Alarm and relay control unit, Anti-theft and keyless entry system, Clock, Dash fuse box, Interior lights, Seat belt, Lights-on, Key-in ignition warning system, Sound system
6 STOP LIGHT 15 Anti-lock brake system (ABS), Automatic transmission controls, Cruise control, Dash fuse box, Exterior lights, Shift interlock system, Trailer adapter
7 (POWER DOOR LOCK) 20 Dash fuse box. Power door locks
8 (MIRROR DEFOG) 10 Power mirror defoggers
9 (REAR DEFOG) 15 Rear defogger
10 (REAR DEFOG) 15 Rear defogger
11 METER 15 Alarm and relay control unit, Anti-lock brake system (ABS) , Automatic transmission controls, Charging System, Cruise control, Dash fuse box, Engine controls, Gauges, Indicators, Seat belt, Lights-on, and Key-in ignition warning system, Shift-on-the-fly system, Supplemental restraint system (SRS), Vehicle speed sensor (VSS)
12 ENGINE IG. 15 Automatic transmission controls, Charging system, Compressor controls, Dash fuse box, Engine controls, Ignition system
13 IG.COIL 15 Dash fuse box, Ignition system
14 BACK UP/TURN LIGHT 15 A/T shift indicator, Alarm and relay control unit, Automatic transmission controls, Back up lights, Blower controls, Cruise control, Dash fuse box, Engine controls, Exterior lights, Trailer adapter
15 ELEC. IG. 15 Alarm and relay control unit, Anti-lock brake system (ABS), Cruise control, Dash fuse box, Power mirror defoggers, Power sunroof, Power windows, Rear defogger, Shift interlock system, Shift-on-the-fly system
16 FRONT WIPER  &WASHER 20 Alarm and relay control unit, Dash fuse box, Windshield wiper/washer, Windshield wiper/washer: intermittent
17 (REAR WIPER & WASHER) 10 Alarm and relay control unit. Dash fuse box, Rear wiper/washer
18 CIGAR LIGHTER 15 Accessory sockets, Cigarette lighter, Dash fuse box
19 (AUDIO) 15 Dash fuse box, Power mirrors, Sound system
20 STARTER 10 Starting system
21 (POWER WINDOW) 30 Dash fuse box, Power sunroof, Power windows
22 SRS 10 Dash fuse box, Supplemental restraint system (SRS)
23
Diode Usage
Diode Box 5 Dome light, Keyless entry and anti-theft system
Diode Box 6 Keyless entry and anti-theft system, Seat belt reminder

Engine compartment

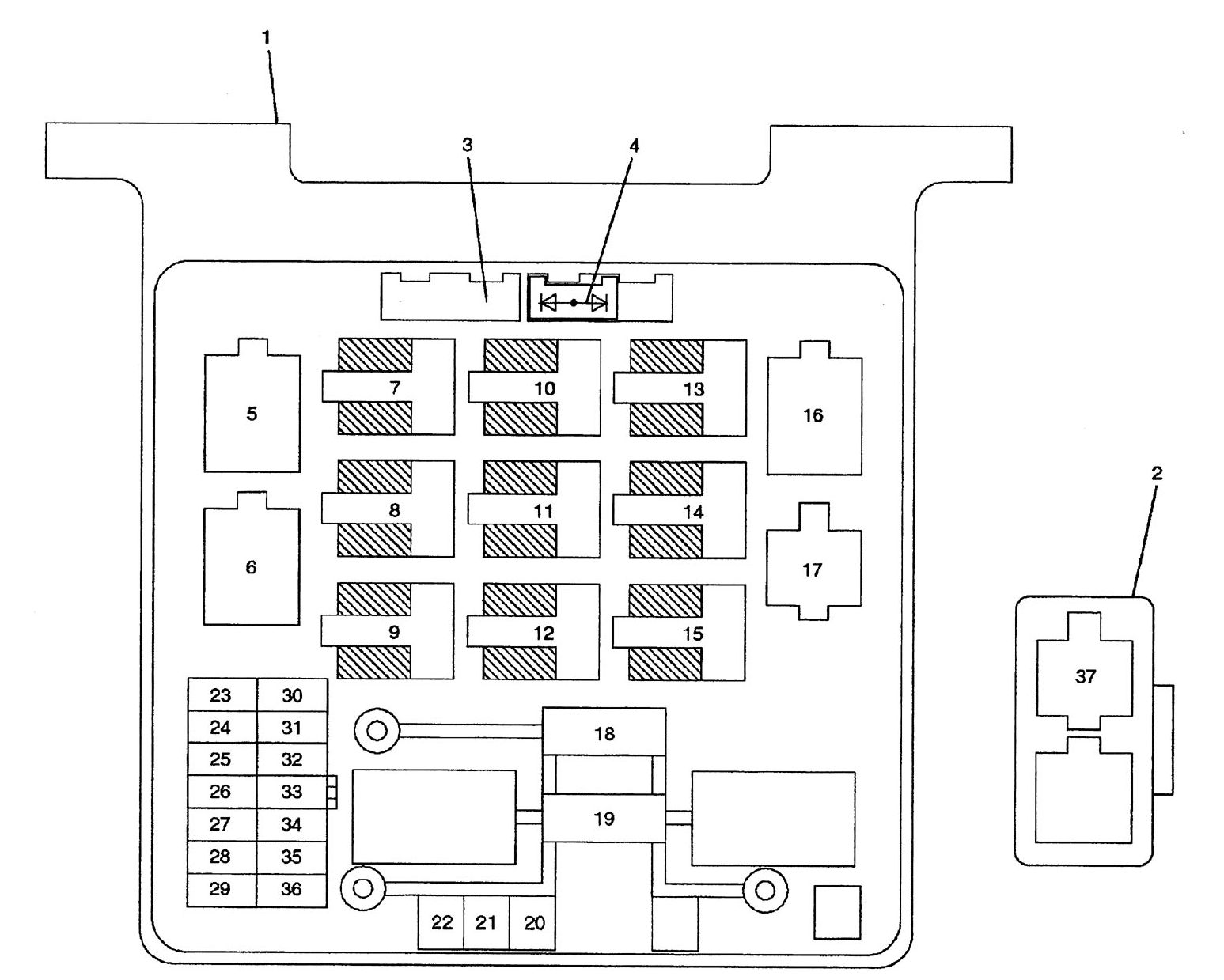

Isuzu Amigo - fuse box - engine - compartment
Isuzu Amigo – fuse box – engine – compartment
No A Description
1 Fuse/Relay Box
2 Option Box
3 Diode
4 Diode
5 Heater Relay
6 A/C Compressor Relay
7
8 ECM Main Relay
9 Fog Lamp Relay
10
11
12 Thermo Relay
13 Headlamp Relay
14 Starter Relay
15
16 Fuel Pump Relay
17 Electric Fan (LO) Relay
18 60 IG.1
19 100 Main
20 50 ABS
21 50 IG.2
22 30 Electric Fan
23 15 Hazard
24 10 Horn
25
26
27 15 Blower
28 15 Blower
29 10 AJC
30 10 Headlamp-LH
31 10 Headlamp-RH
32 10 Fog Lamp
33 20 02 Sensor
34 20 Fuel Pump
35 15 ECM
36

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
