Mercedes-Benz C280 (1998) – wiring diagrams – power locks

Mercedes-Benz C280 (1998) – wiring diagrams – power locks

Year of productions:  1998

Power locks

Mercedes-Benz C280 - wiring diagram - power locks (part 1)
Mercedes-Benz C280 – wiring diagram – power locks (part 1)

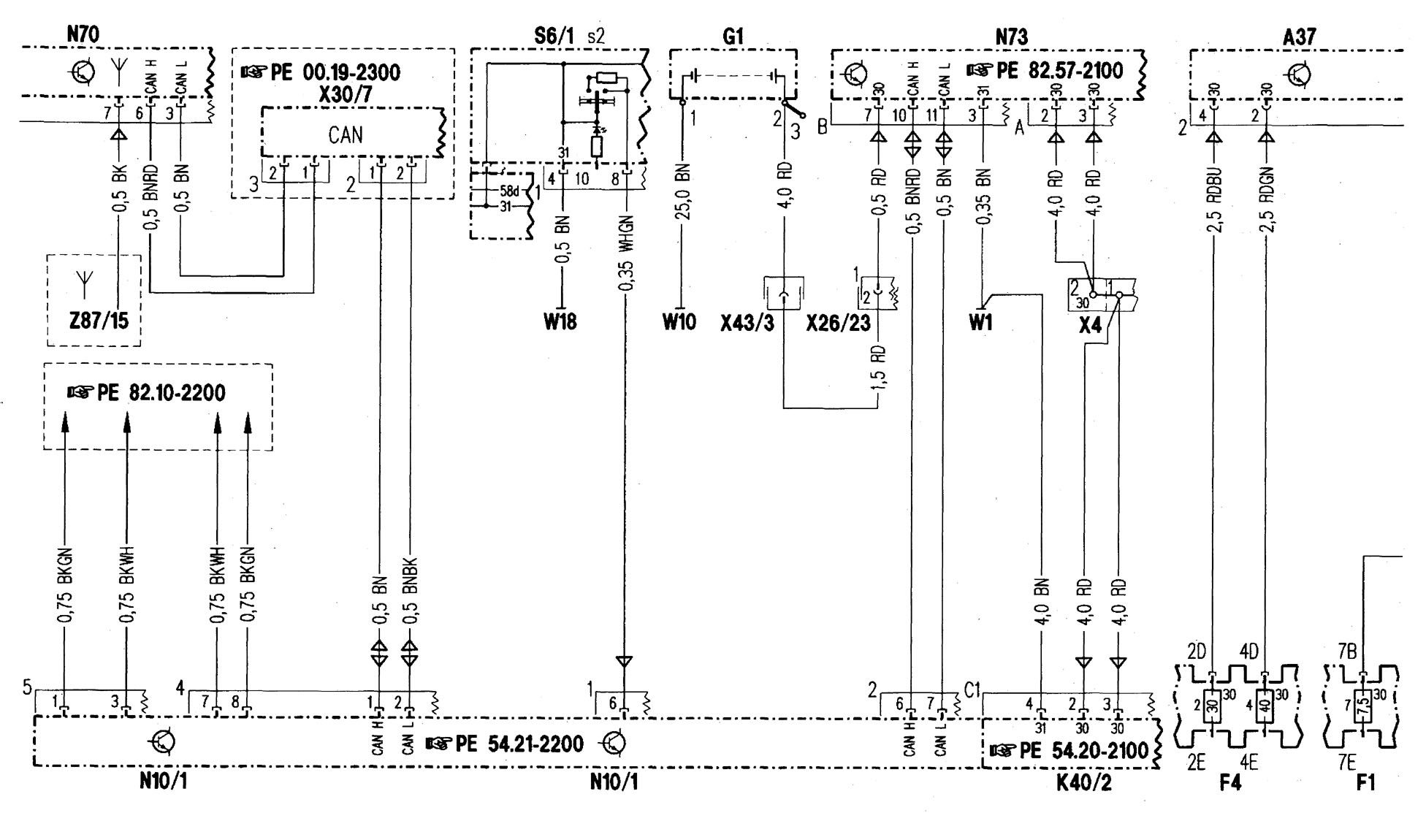

Mercedes-Benz C280 - wiring diagram - power locks (part 2)
Mercedes-Benz C280 – wiring diagram – power locks (part 2)

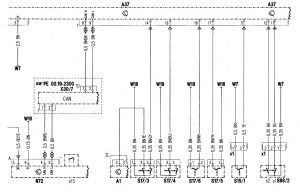

Mercedes-Benz C280 - wiring diagram - power locks (part 3)
Mercedes-Benz C280 – wiring diagram – power locks (part 3)
A1 Instrument cluster
A26/1 Left front door IR receiver
A26/2 Right front door IR receaver
A37 PSE control module
F1 Fuse and relay box
F1f7 Fuse 7
F1f8 Fuse 8
F1f9 Fuse 9
F4 Fuse box in trunk
F4f2 Fuse 2
F4f3 Fuse 3
F4f4 Fuse 4
G1 Battery
K40/2 Driver-side fuse and relay module box
N10/1 Signal packup  and activation module (SAM) left front
N69/1 Front driver·side door control module
N69/2 Fronl passenger-side door control module
N70 Rool control panel control module
N72 Lower control field control module
N72s15 RTR switch
N73 Electronic ignition lock control module
S6/1 Cookpat switch group
S6/1s2 Interior switch (CL)
S15/1 Trunk release switch
S15/1×1 Trunk release switch connector
S17/3 Left front door switch
S17/4 Right front door switch
S17/5 Lett rear door switch
S17/6 Right rear door switch
S86/1 Lett ·front door lock switch (CF)
S86/1s1 Left front door lock switch (CF), unlock
S86/1s2 Lett front door lock switch (CF), lock
S87/1 Right front door lock switch (CF)
S87/1s1 Right front door lock switch (CF), unlock
S87/1s2 Righi front door lock switch (CF), lock
S88/2 Trunk lid lock switch (CF)
S88/2s1 Trunk lid lock switch (CF). unlock
S88/2s2 Trunk lid lock switch (CF), lock
S88/2×1 Trunk fed lock switch connector (CF)
W1 Main ground (behind instrument cluster)
W7 Ground (right wheelhousing in trunk)
W10 Ground (battery)
W18 Ground (left front seat crossmember)
W19 Ground (right trent seat crossmember)
X4 Terminal block (circuit 30, left footwall)
X26/23 Engine companment/cocpit connector
X30/7 Star-point coupler databus (CAN) tie-in connector
X35/41 Left front door separation point
X35/42 Right front door separation point
X43/3 REST/CL connector, circuit 30Z
Z87/15 Cable end (twoway radio)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
