Year of productions:  1994, 1995, 1996

Instrumentation

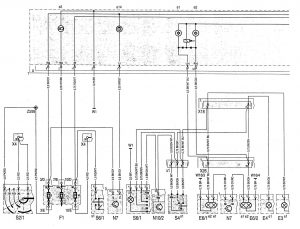

Mercedes-Benz C220 - wiring diagram - instrumentation (part 1)
Mercedes-Benz C220 – wiring diagram – instrumentation (part 1)

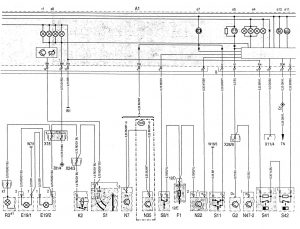

Mercedes-Benz C220 - wiring diagram - instrumentation (part 2)
Mercedes-Benz C220 – wiring diagram – instrumentation (part 2)

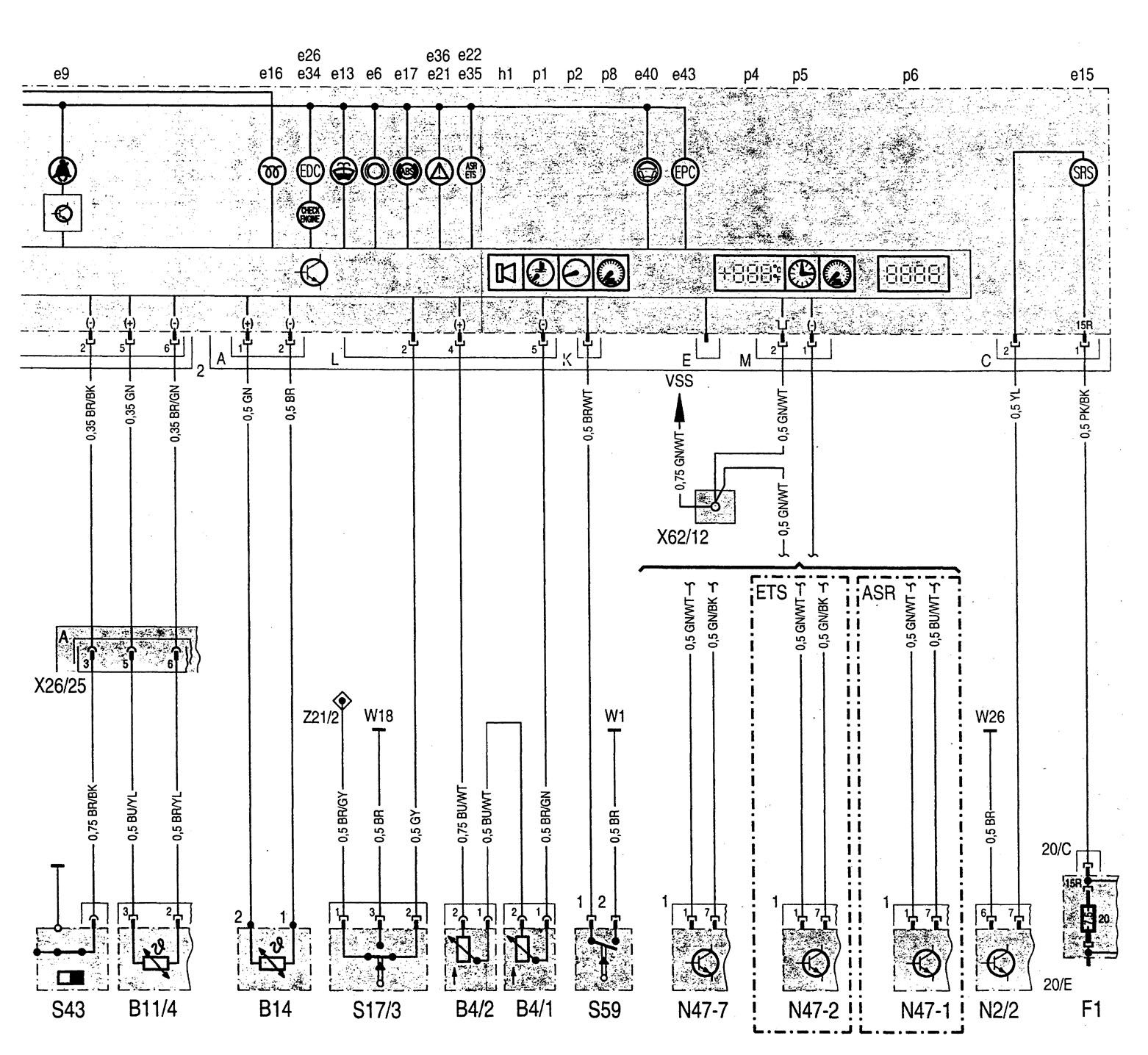

Mercedes-Benz C220 - wiring diagram - instrumentation (part 3)
Mercedes-Benz C220 – wiring diagram – instrumentation (part 3)
A1 Instrument cluster
A1e1 Left turn signal indicator lamp
A1e2 Right·turn signal indicator lamp
A1e3 High beam indicator lamp
A1e4 Fuel reserve indicator lamp
A1e5 Generator charge indicator lamp
A1e6 Brake pad wear indicator lamp
A1e7 Low brake fluid level/parking brake indicator lamp
A1e8 Instrument illumination
A1e9 Seat belt reminder lamp
A1e11 Low ECL indicator lamp
A1e12 Low engine oil level indicator lamp
A1e13 Low windshield washer fluid level indicator lamp
A1e14 Exterior lamp failure indicator lamp
A1e15 SRS MIL
A1e16 Preglow indicator lamp
A1e17 ABS MIL
A1e21 ASR warning lamp
A1e22 ASR MIL
A1e26 “CHECK ENGINE” MIL
A1e34 02S replacement indicator lamp
A1e35 ETS MIL
A1e36 ETS warning lamp
A1e40 Steering lock warning lamp
A1e43 EPC MIL
A1h1 Warning buzzer
A1p1 ECT gauge
A1p2 Fuel level gauge
A1p4 Outside temperature indicator
A1p5 Tachometer
A1p6 Electronic clock
A1p8 Electronic speedometer
A1r1 Instrument illumination rheostat
B4/1 Left fuel level sensor
B4/2 Right fuel level sensor
B11/4 ECT sensor (DFI, IFI)
B14 Outside temperature indicator temperature sensor
E3 Left taillamp unit
E3e1 Turn signal lamp
E4 Right taillamp unit
E4e1 Turn signal lamp
E6/1 Left turn signal/side marker lamp (USA)
E6/1e1 Turn signal
E6/1e2 Side marker lamp
E6/2 Right signal/side marker lamp (USA)
E6/2e1 Turn signal
E6/2e2 Side marker lamp (USA)
E19/1 Left license plate lamp
E19/2 Right license plate lamp
F1 Fuse and relay box
F1-3 Fuse 3, circuit 15
F1-7 Fuse 7, circuit 56a
F1-10 Fuse 1 0, circuit 30
F1-12 Fuse 12, circuit 30
F1-20 Fuse 20, circuit 15R
G2 Generator
K2 HCS relay module
K30 Auxiliary coolant pump control relay module (REST, engine OFF cooling)
N2/2 SRS control module
N7 Exterior lamp failure monitoring module
N10/2 Combination relay module (turn signal with trailer coupling, rear window defroster, wiper motor, ATA)
N22 A/C pushbutton control module (Automatic A/C)
N35 Daytime runhing lamp control module
N47-1 ASRISPS control module
N47-2 ETS/SPS control module
N47-7 ABS control module
R3 Front cigar lighter (with ashtray illumination)
R3e1 Illumination
R3x1 Illuminated cigar lighter connector

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
