Mercedes-Benz 500SL (1990 – 1993) – wiring diagrams – horn

Mercedes-Benz 500SL (1990 – 1993) – wiring diagrams – horn

Year of productions:  1990, 1991, 1992, 1993

Horn

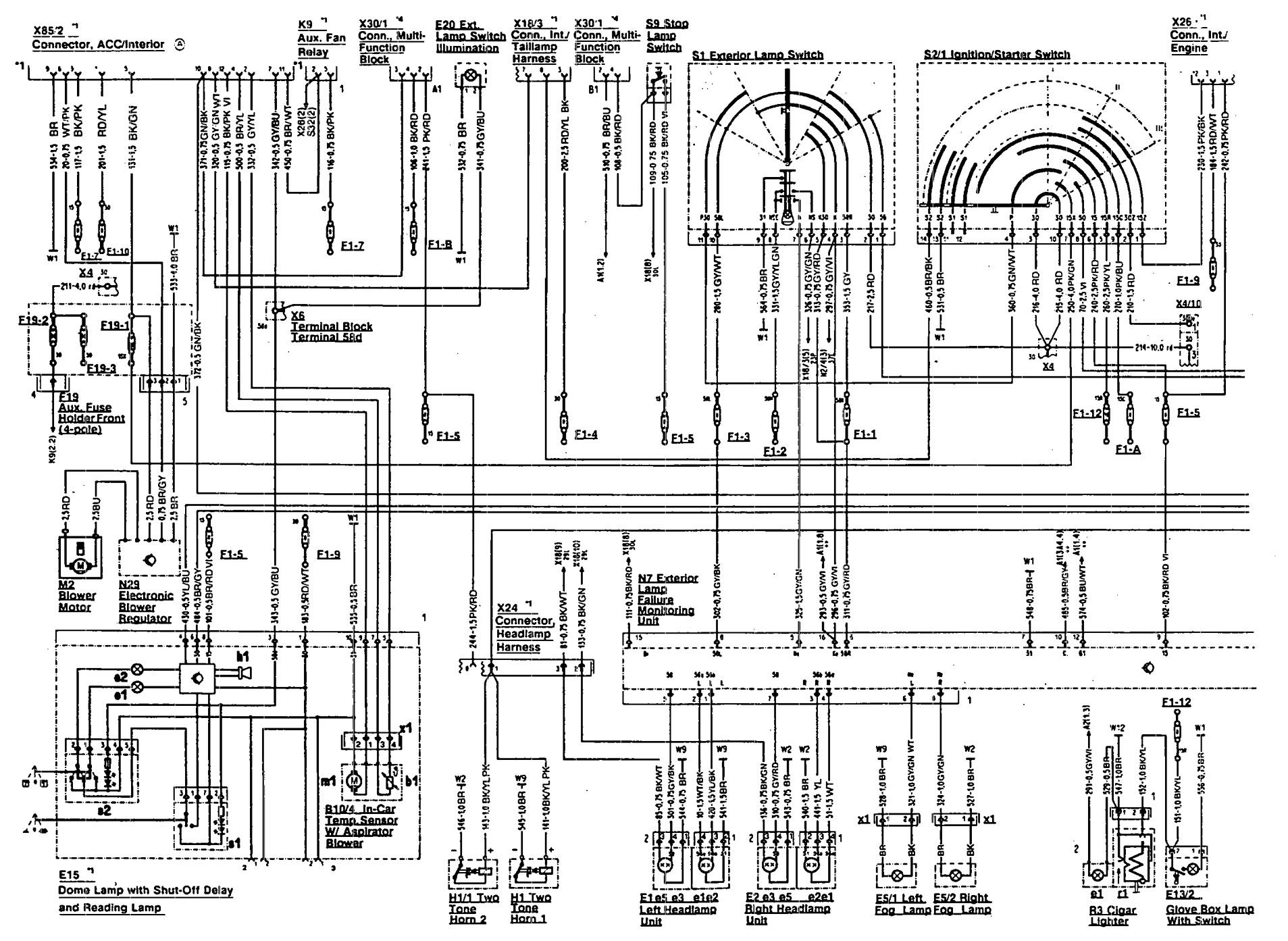

Mercedes-Benz 300SL - wiring diagram - horn (part 1)
Mercedes-Benz 500SL – wiring diagram – horn (part 1)

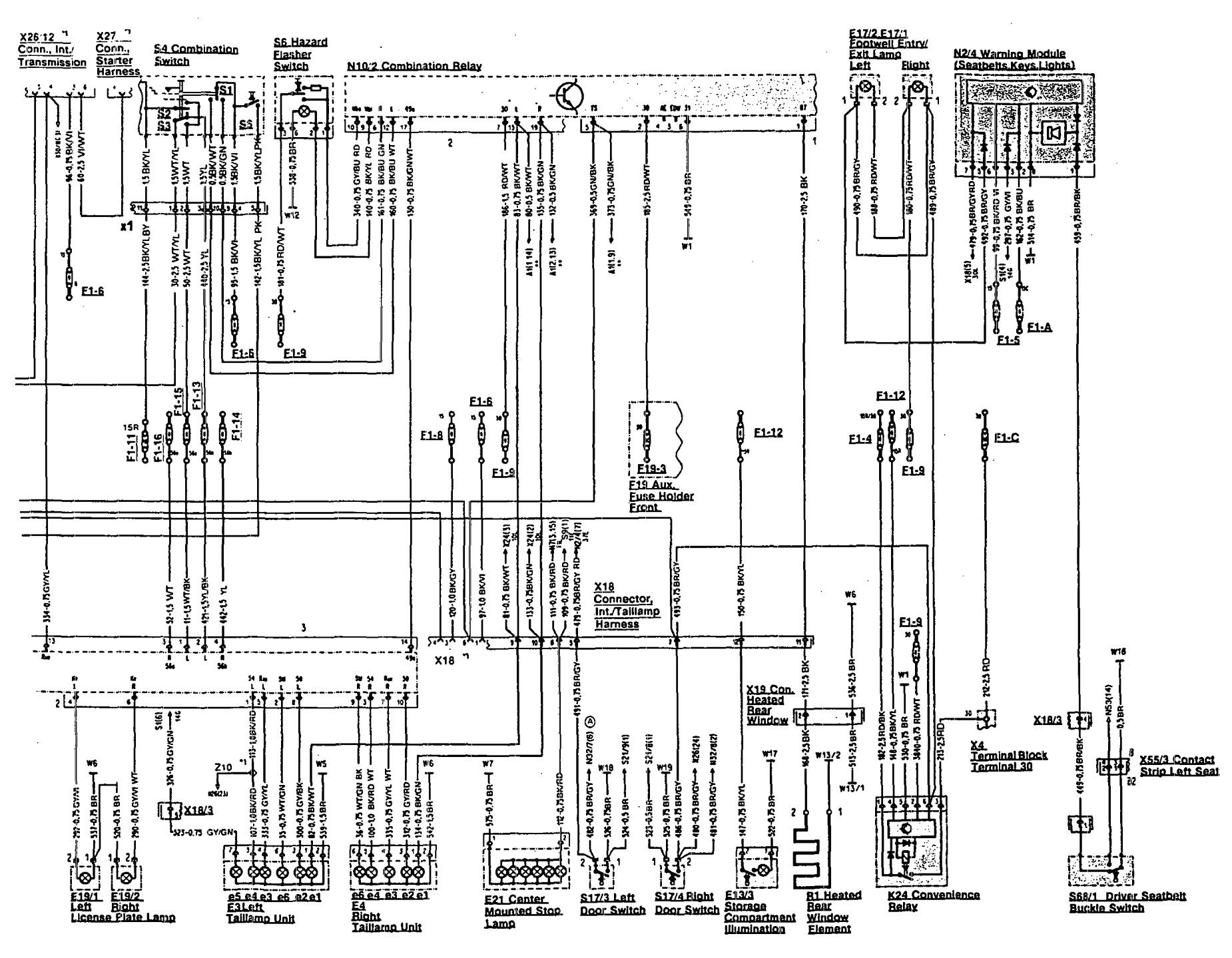

Mercedes-Benz 300SL - wiring diagram - horn (part 2)
Mercedes-Benz 500SL – wiring diagram – horn (part 2)

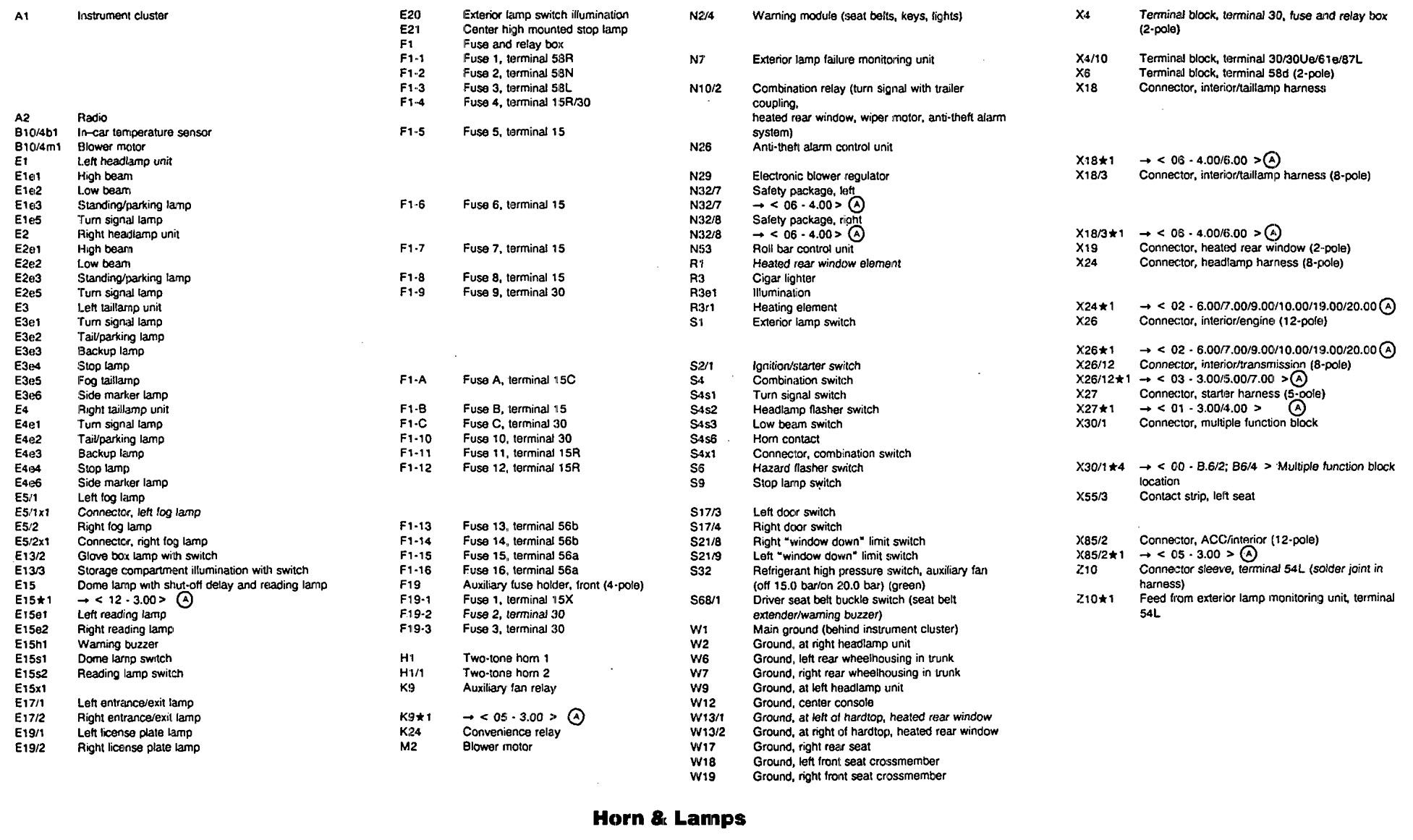

Mercedes-Benz 300SL - wiring diagram - horn (part 3)
Mercedes-Benz 500SL – wiring diagram – horn (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
