Mercedes-Benz 300SD (1992 – 1993) – wiring diagrams – audio

Mercedes-Benz 300SD (1992 – 1993) – wiring diagrams – audio

Year of productions:  1992, 1993

Audio

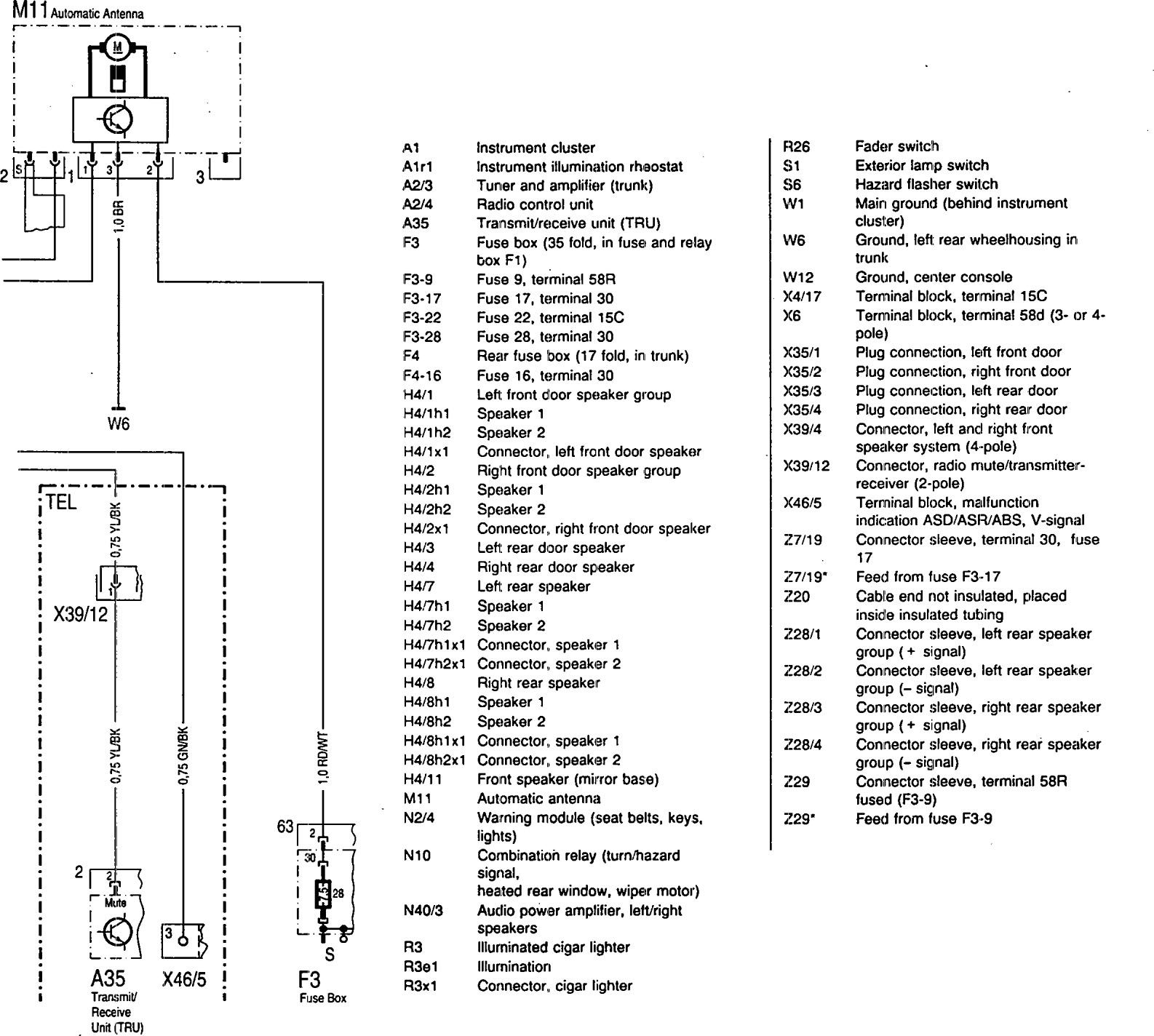

Mercedes-Benz 300SD - wiring diagram - audio (part 1)
Mercedes-Benz 300SD – wiring diagram – audio (part 1)

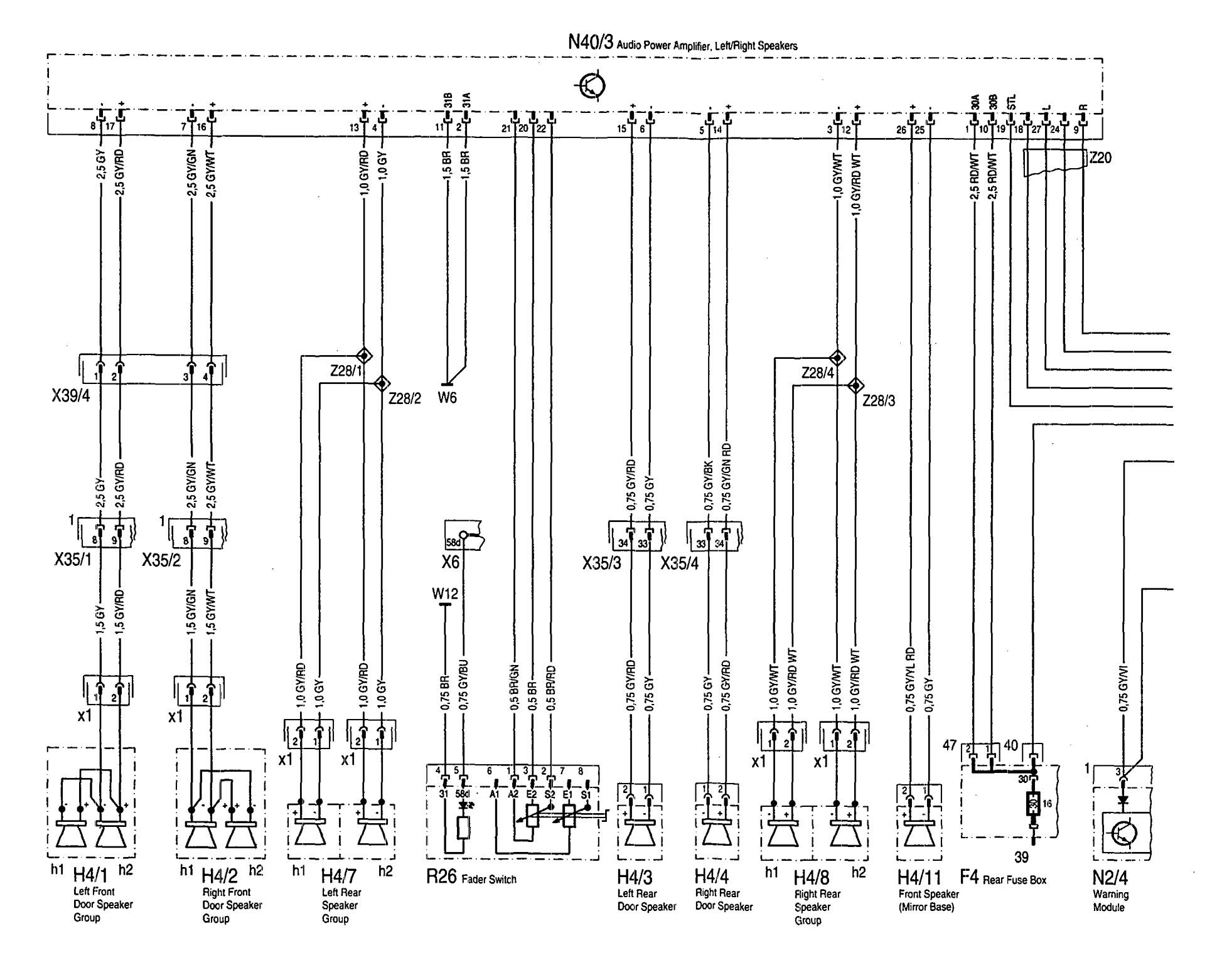

Mercedes-Benz 300SD - wiring diagram - audio (part 2)
Mercedes-Benz 300SD – wiring diagram – audio (part 2)

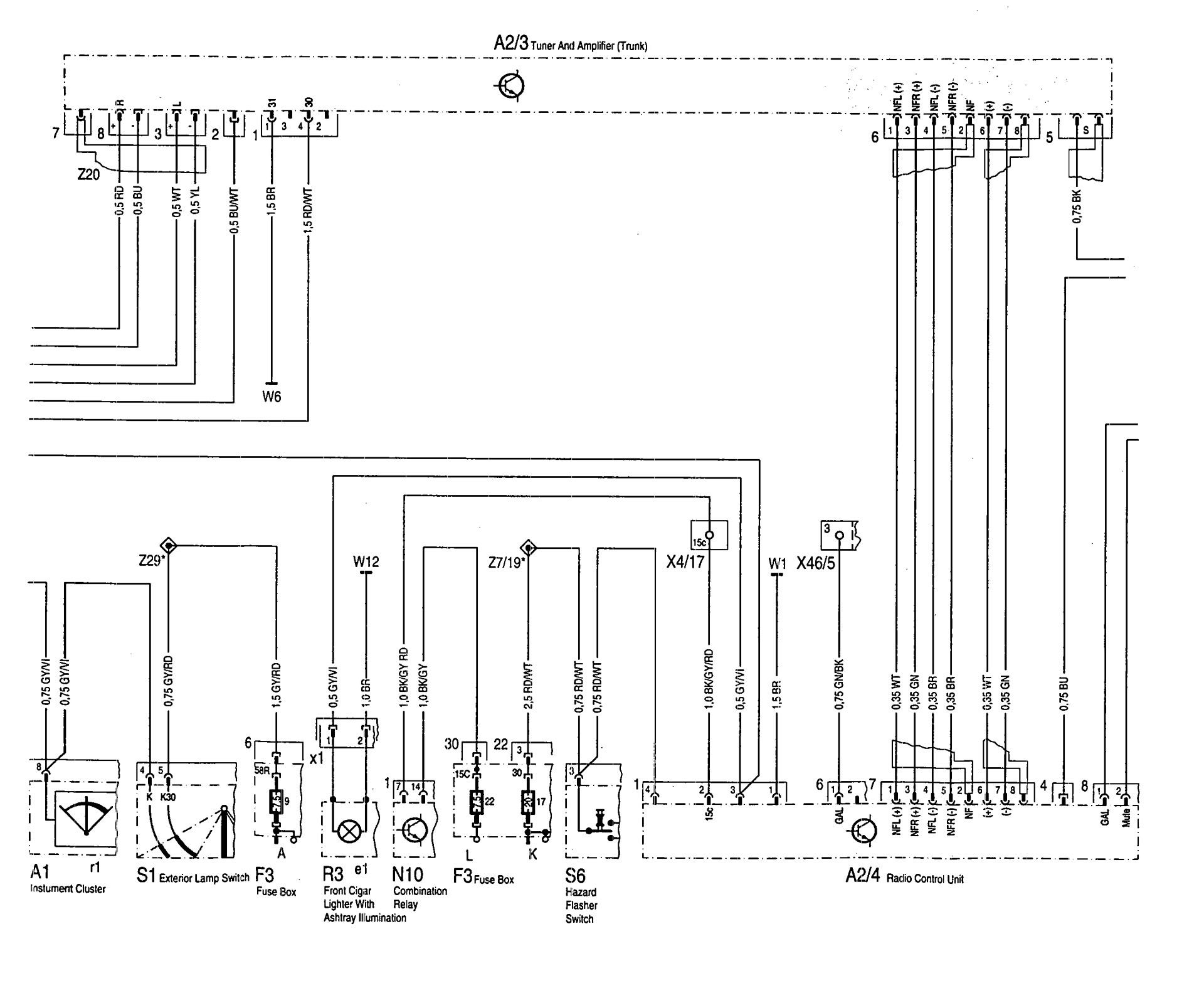

Mercedes-Benz 300SD - wiring diagram - audio (part 3)
Mercedes-Benz 300SD – wiring diagram – audio (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
