Mercedes 190E (1993) – wiring diagrams – instrumentation

Mercedes 190E (1993) – wiring diagrams – instrumentation

Year of productions:  1993

Instrumentation

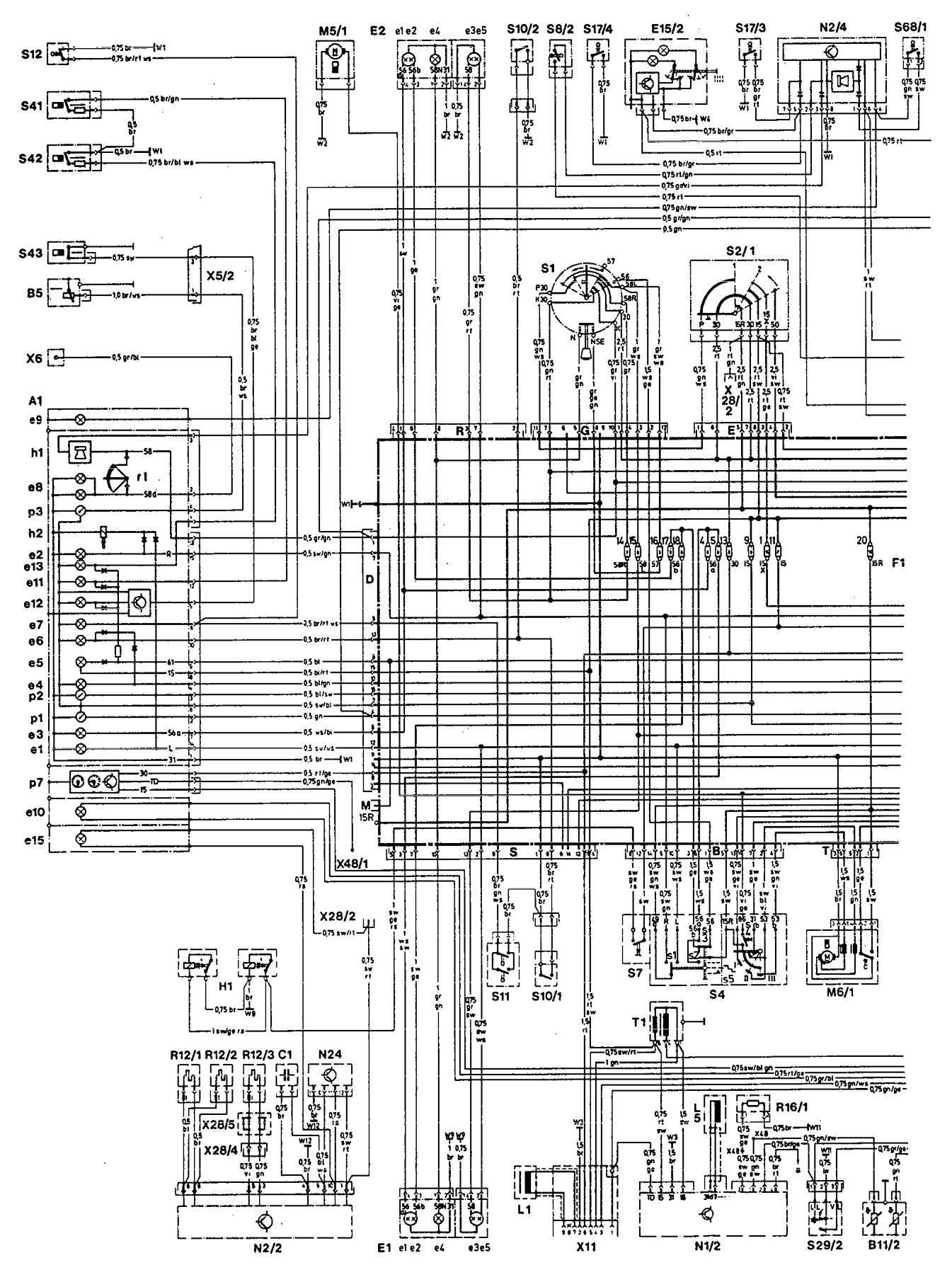

Mercedes Benz 190E -  wiring diagram -  instrumentation (part 1)
Mercedes Benz 190E – wiring diagram – instrumentation (part 1)

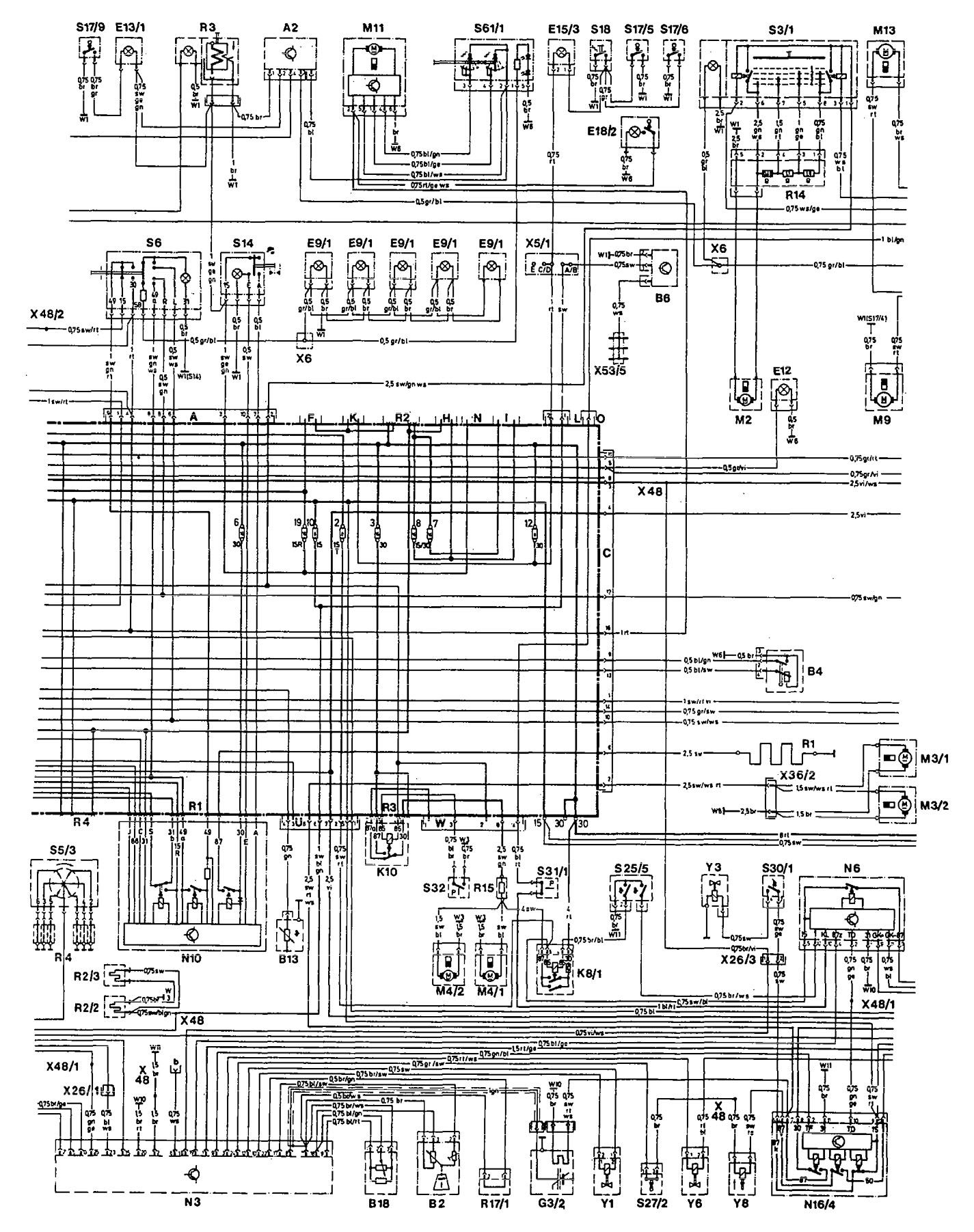

Mercedes Benz 190E - wiring diagram - instrumentation (part 2)
Mercedes Benz 190E – wiring diagram – instrumentation (part 2)

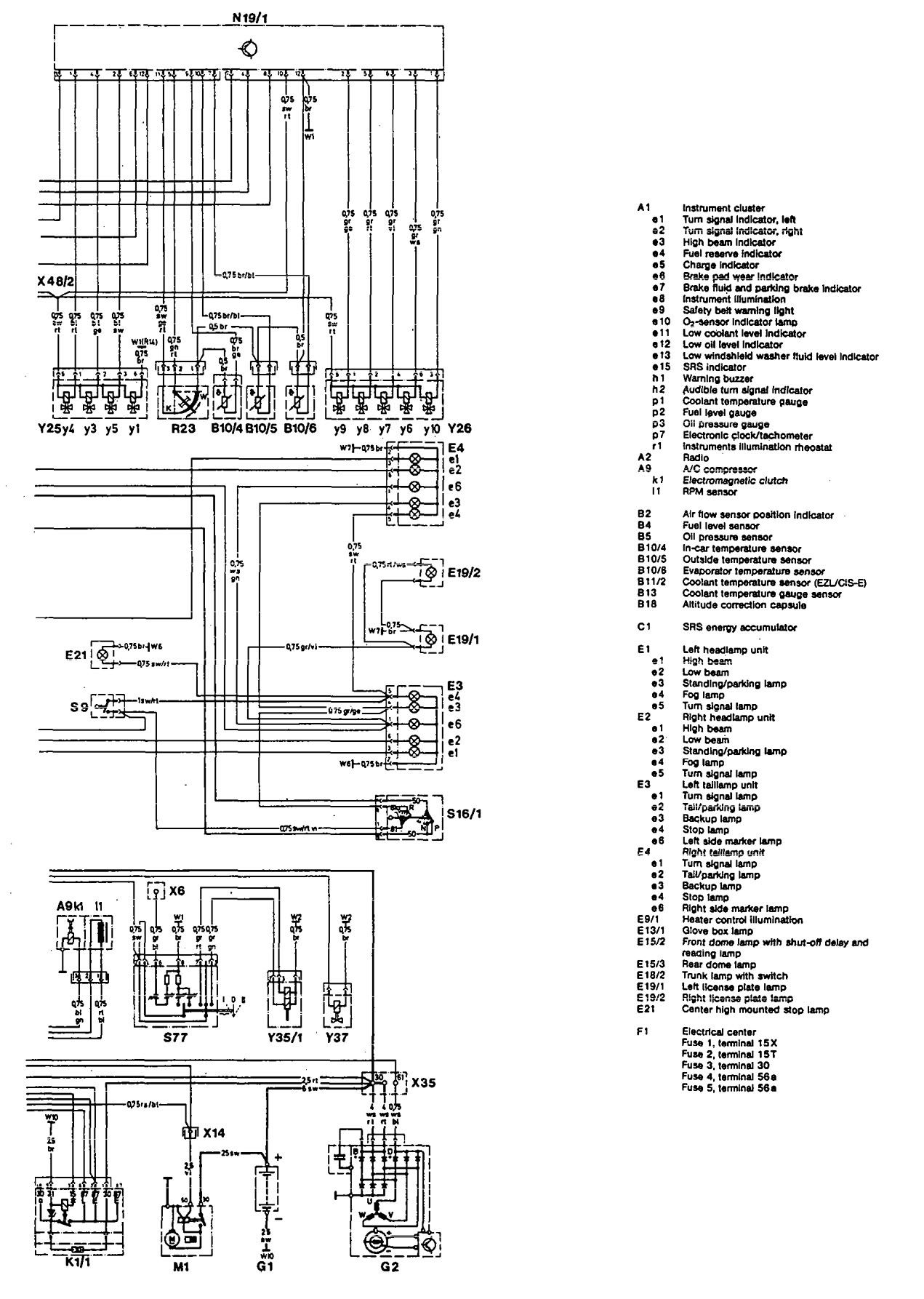

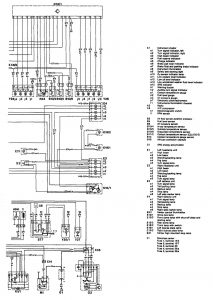

Mercedes Benz 190E - wiring diagram - instrumentation (part 3)
Mercedes Benz 190E – wiring diagram – instrumentation (part 3)

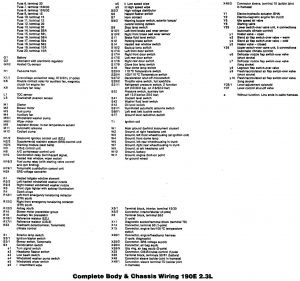

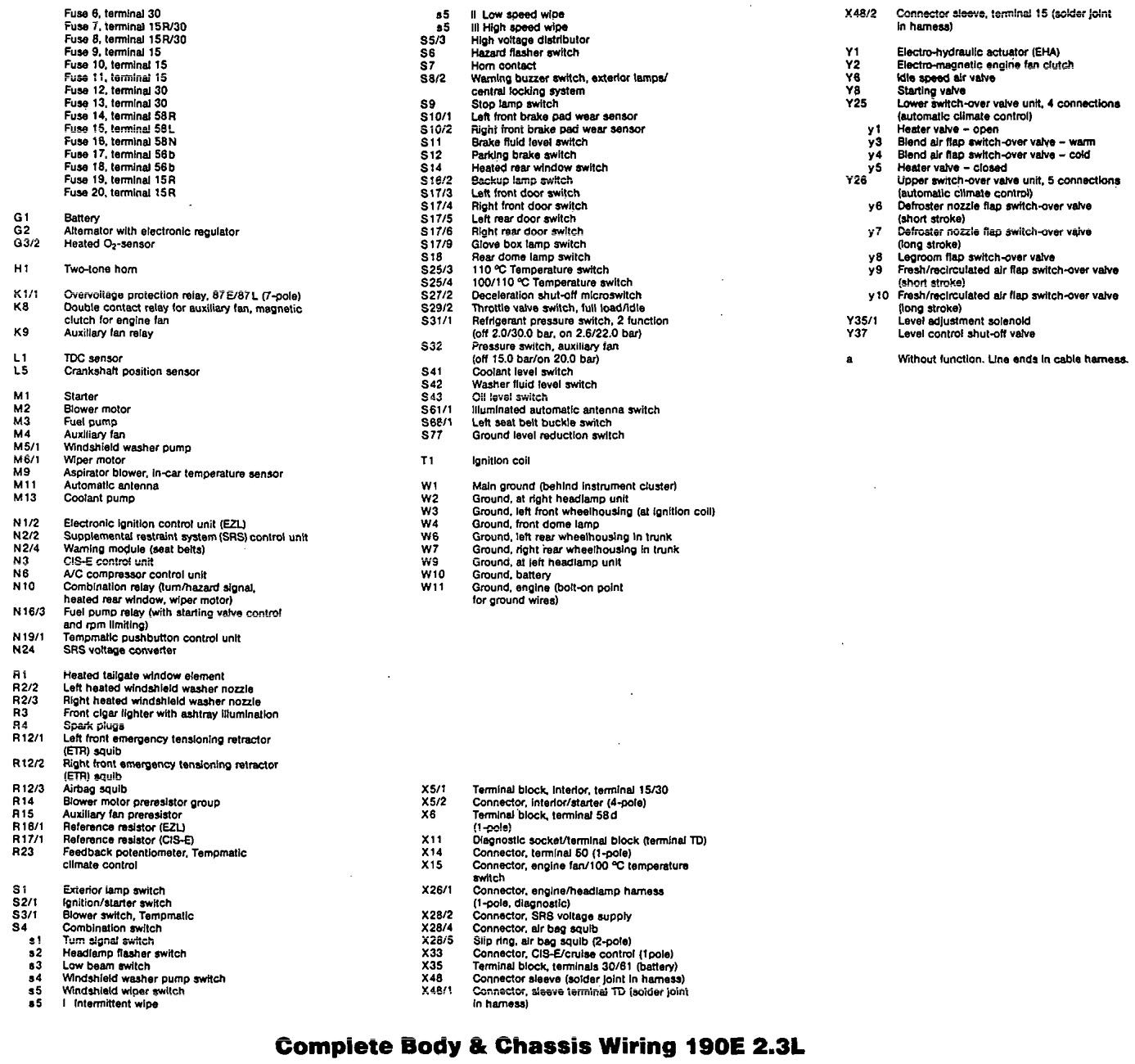

Mercedes Benz 190E - wiring diagram - instrumentation (part 4)
Mercedes Benz 190E – wiring diagram – instrumentation (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
