Mazda RX-8 (2011) – fuse box diagram

Mazda RX-8 (2011) – fuse box diagram

Year of production: 2011

Fuse block (Engine compartment)

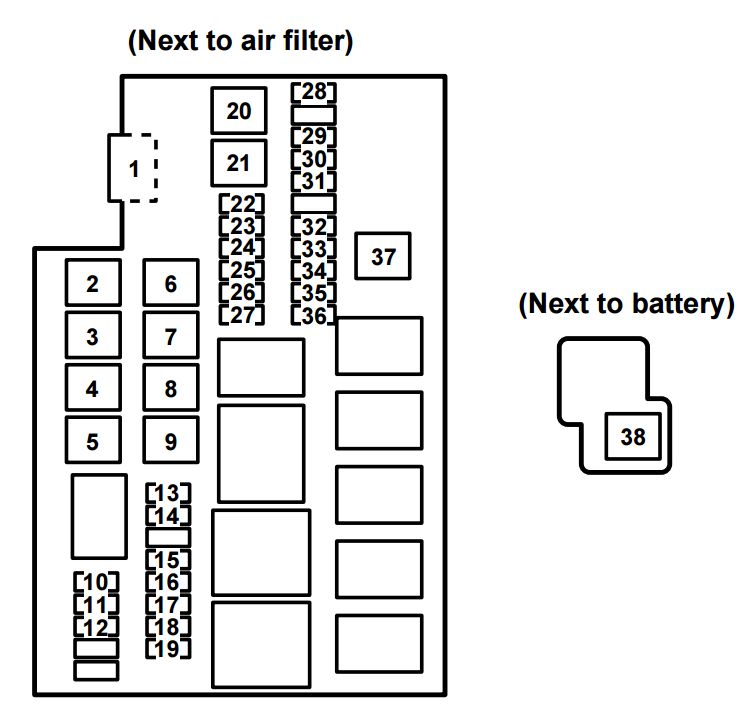

Mazda RX-8 - fuse box - engine compartment
Mazda RX-8 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 MAIN 120 For protection of all circuits
2 HEATER 40 Heater
3 AIR PUMP 60 Air pump
4 BTN 30 Power windows, Power door locks, Illumination, Moonroof*
5 DEFOG 50 Rear window defroster
6 FAN 1 30 Electric fan 1
7 ABS/DSC 40 ABS, DSC*
8 ACC 30 Lighter, Power control mirror, Accessory socket, Audio system
9 FAN 2 30 Electric fan 2
10 HEAD 15 Headlight high beams*, Headlight cleaner*
11 HEAD LOW R 15 Headlight low beam (RH)
12 HEAD LOW L 15 Headlight low beam (LH)
13 DRL 15 DRL* (Headlight high beams)
14 DSC 30 DSC*
15 SEAT WARM 20 Seat warmer*
16 H/CLEAN 20 Headlight cleaner*
17 R.FOG
18 FOG 15 Fog lights*
19 A/C 10 Air conditioner
20 IG 40 For protection of various circuits
21 P.WIND 1 30 Power window
22 IG KEY 15 For protection of various circuits
23 STOP 10 Brake lights
24 FUEL PUMP 20 Fuel pump
25 HORN 15 Horn
26 HAZARD 15 Hazard warning flashers, Turn signals
27 ETV 15 Electric throttle valve
28 ST 10 Starter
29 WIPER 20 Windshield wiper and washer
30 TCM 15 TCM*
31 ENGINE 15 Engine control system, Supplemental restraint system, ABS, Power steering
32 TAIL 10 Taillights, License plate light, Parking lights, Front side-maker lights, Rear side-marker lights
33 ILLUMI 7,5 Illumination
34 EGI COMP1 15 Engine control system
35 EGI COMP2 10 Engine control system
36 EGI INJ 15 Fuel injector
37 P.WIND 2 20 Power window
38 EPS 60 Power steering
* Some models

Fuse panel (Driver’s side)

Mazda RX-8 - fuse box - driver's side
Mazda RX-8 – fuse box – driver’s side
Position Description Fuse rating [A] Protected component
1 CIGAR 15 Lighter
2 ACC 7,5 Audio system, Power control mirror
3 OUTLET
4 A/C 7,5 Air conditioner
5 METER 10 Instrument cluster
6
7 SPARE
8 SPARE
9 M.DEF 10 Mirror defroster*
10 DSC 7,5 DSC*
11 AUDIO 25 Audio system (Bose® Sound System-equipped model)*
12 D.LOCK 30 Power door locks, Moonroof*
13 OUTLET 15 Accessory socket
14 ROOM 15 Interior lights
15 SPARE
16 SPARE
* Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
