Daewoo Leganza (1999 – 2002) – fuse box diagram

Daewoo Leganza (1999 – 2002) – fuse box diagram

Year of production: 1999, 2000, 2001, 2002

Engine compartment fuse box

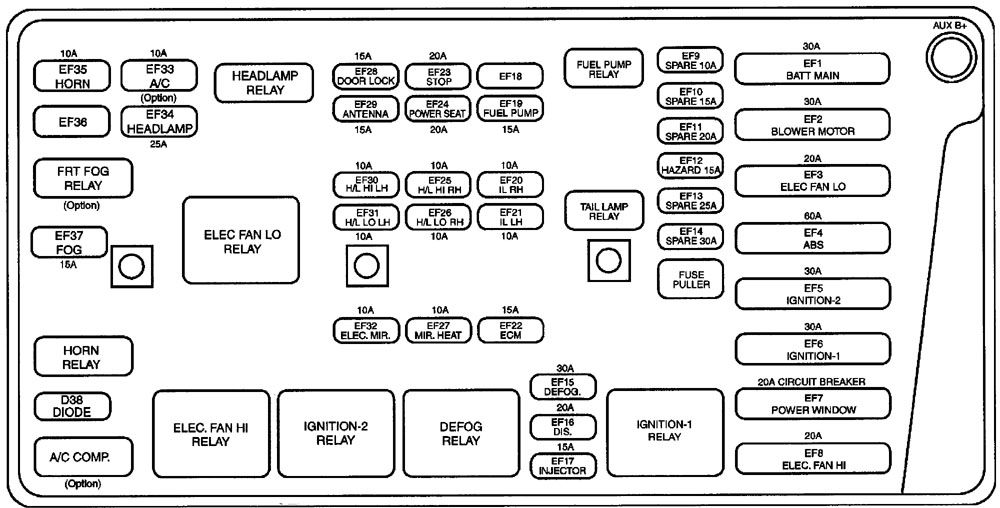

Daewoo Leganza – fuse box diagram – engine compartment
Daewoo Leganza – fuse box diagram – engine compartment

Passenger compartment fuse box

Daewoo Leganza – fuse box diagram – passenger compartment
Daewoo Leganza – fuse box diagram – passenger compartment

Fuse chart

Fuse number Ampere rating [A] Source Circuit protected
EF1 (Engine Fuse) 30 B+ Fuses F1 , F2, F4
EF2 30 B+ Blower Motor Relay, Blower Motor, Auto. Temp. Control Relay, ATC Controller
EF3 20 B+ Cooling Fan (Low) Relay, Aux. Cooling Fan, Cooling Fan Control Relay
EF4 60 B+ ABS Relay, Electronic Brake Control Module
EF5 30 B+ lgn 2 (lgn Key}, Starter
EF6 30 B+ lgn 1 (lgn Key), Ace, F17, F18
EF7 20 B+ lgn 2 Relay, EF 32, Keyless Entry System, Sun Roof, Power Window Main Switch
EF8 20 B+ Cooling Fan (High) Relay, Cooling Fan Control Relay, Main Cooling Fan
EF12 15 B+ Hazard Switch
EF15 30 B+ Rear Window Defogger, Defogger Relay, EF27
EF16 20 B+ Generator Terminal F, Electronic Ignition System Coil, Evaporativer Emission Canister Purge Solenoid, Engine Control Module
EF17 15 B+ Fuel Injectors, EGA
EF19 15 B+ Fuel Pump, DLC Connector E
EF20 10 B+ RH Parking Lamp, RH Taillamp, Dimmer Control Switch, Chime bell
EF21 10 B+ LH Parking Lamp, LH Taillamp, License Lamp
EF22 15 B+ Engine Control Module
EF23 20 B+ Brake Switch, Brake Lamps, EBCM, Cruise Control, BTSi
EF24 20 B+ Power Seat
EF25 10 EF34 Headlamp High RH
EF26 10 EF34 Headlamp Low RH
EF27 10 EF15 Electric Outside Rearview Mirror Defogger
EF28 15 B+ Auto Door Lock System
EF29 15 B+ Power Antenna, lgn Key Illumination, Luggage Compartment Lamp, Interior Courtesy Lamp, Door Step Lamp, Keyless Entry System Unit
EF30 10 EF34 Headlamp High LH
EF31 10 EF34 Headlamp Low LH
EF32 10 EF7 Electric Outside Rearview Mirror Control, Map Lamp (W/0 Sun Roof), Sun Roof Switch, Keyless Entry Unit
EF33 10 B+ NC Compressor Relay, NC Compressor, NC Diode
EF34 25 B+ Headlamp Relay, EF30, EF25, EF31 , EF26, High Beam Indicator Switch, Illumination Relay, Headlamp Switch, Anti-Theft Siren
EF35 10 B+ Horn System
EF37 15 B+ Fog Lamp Relay, LH and RH Front Fog Lamps
F1 (Fuse) 10 EF1 Audio System, Clock, Key Remind Switch, Chime Module, Ashtray Ilium., Door Switch, ATC Controller
F2 10 EF1 DLC
F4 20 EF1 Daytime Running Lamps
F6 20 EF5 (Ign 2) lgn 2 Relay, Cooling Fan (High) Relay, Cooling Fan (Low) Relay, A/C Compressor Relay, A/C Switch, Cooling Fan Control Relay, ECM., Blower Motor Relay, Auto. Temp. Control Relay, Defogger Relay, ATC Controller
F8 20 EF6 (Acc) Cigar Lighter, Glove Box Lamp, Glove Box Switch, Key Interlock Solenoid
F9 10 EF6 (Acc) Audio System, Clock
F11 15 EF6 (Ign 1) Turn Signal/Hazard Switch, Daytime Running Lamps
F12 25 EF6 (Ign 1) Wiper/Washer System
F13 15 EF6 (Ign 1) Engine Control Module, lgn 1 Relay, Vehicle Speed Sensor, Fuel Pump Relay, CMP
F14 10 EF6 (Ign 1) Backup Switch, Backup Lamps, Defogger, ATC Controller, Seat Belt Switch, Cruise Control Systell’
F15 10 EF6 (Ign 1) Supplemental Inflatable Restraint System
F16 20 EF6 (Ign 1) Sun Roof Module, Sun Roof Motor (if equipped)
F17 10 EF6 (Ign 1) Electronic Brake Control Module
F18 10 EF6 (Ign 1) Instrument Cluster, Chime Module, Brake Switch, ATC. Controller, Vehicle Speed Sensor, ECM, Brake Transaxle Shift Interlock Solenoid, Transmission Range Switch, Speed Sensitive Power Steering Module, EBCM

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
