Mazda RX-8 (2004) – fuse box diagram

Mazda RX-8 (2004) – fuse box diagram

Year of production: 2004

Fuse block (Engine compartment)

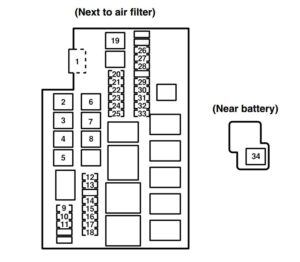

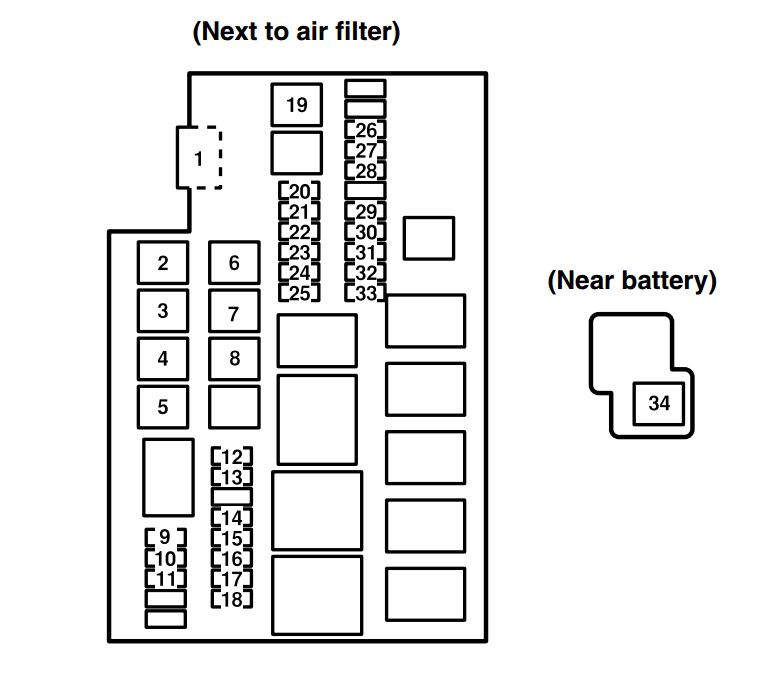

Mazda RX-8 - fuse box - engine compartment
Mazda RX-8 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 MAIN 120 For protection of all circuits
2 HEATER 40 Heater
3 AIR PUMP 60 Air pump
4 BTN 30 Power windows, Power door locks, Illuminated entry system, Sunroof*
5 DEFOG 50 Rear window defroster
6 FAN 40 Electric fan
7 ABS/DSC 60 ABS, DSC*
8 ACC 30 Lighter, Power control mirror, Accessory socket, Audio system
9 HEAD 15 Headlight high beams*, Headlight cleaner*
10 HEAD LOW R 15 Headlight low beam (RH)
11 HEAD LOW L 15 Headlight low beam (LH)
12 DRL 15 DRL* (Headlight high beams)
13 DSC 30 DSC*
14 SEAT WARM 20 Seat warmer*
15 H/CLEAN 20 Headlight cleaner*
16 R.FOG 10
17 FOG 15 Fog lights*
18 A/C MAG 10 Air conditioner
19 IG 30 For protection of various circuits
20 IG KEY 15 For protection of various circuits
21 STOP 15 Brake lights
22 FUEL PUMP 20 Fuel pump
23 HORN 15 Horn
24 HAZARD 15 Hazard warning flashers, Turn signals
25 ETV 15 Electric throttle valve
26 WIPER 20 Windshield wiper and washer
27 P.WIND 20 Power windows
28 ENGINE 15 Engine control system, Supplemental restraint system, ABS, Power steering
29 TAIL 10 Taillights, License plate light, Parking lights, Front sidemaker lights, Rear sidemarker lights
30 ILLUMI 10 Illuminated entry system
31 EGI COMP1 10 Engine control system
32 EGI COMP2 10 Engine control system
33 EGI INJ 15 Fuel injector
34 EPS 60 Power steering
* Some models

Fuse panel (Driver’s side)

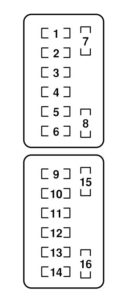

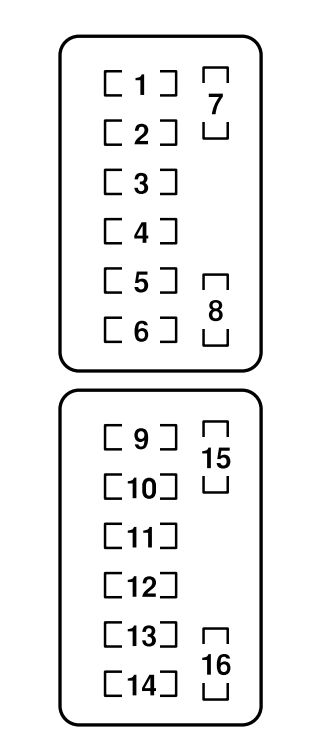

Mazda RX-8 - fuse box - driver's side
Mazda RX-8 – fuse box – driver’s side
Position Description Fuse rating [A] Protected component
1 CIGAR 15 Lighter
2 ACC 7,5 Audio system, Power control mirror
3 AUX PWR 20 Accessory socket
4 A/C 7,5 Air conditioner
5
6
7 SPARE 7,5
8 SPARE 20
9 M.DEF 10 Mirror defroster*
10 DSC 7,5 DSC*
11 AUDIO 20 Audio system*
12 D.LOCK 30 Power door locks, Sunroof*
13 P.WIND 30 Power windows
14 ROOM 15 Interior lights
15 SPARE 15
16 SPARE 10
* Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
