Mazda MX-5 (2000) – fuse box diagram

Mazda MX-5 (2000) – fuse box diagram

Year of production: 2000

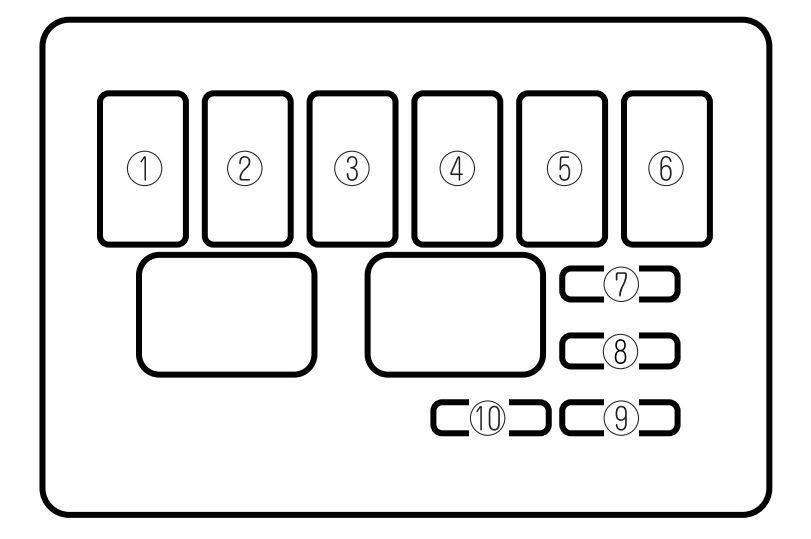

Fuse block (Engine compartment)

Mazda MX-5 - fuse box - engine compartment
Mazda MX-5 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 HEAD 40 Headlights
2 FUEL INJ 30 Fuel injection, Alternator
3 MAIN 100 For protection of all circuits
4 IG KEY 60 All ignition related circuits
5 BLOWER 30 Blower motor
6 FAN 30 Cooling fan, Additional fan (air conditioner)*
7 BTN 1 30 Taillights*, Turn signal lights, Instrument panel illumination8, Auto antenna*
8 BTN 2 20 Rear defroster*, Audio amp*
9 ABS 20 Antilock brake system*
10 STOP 15 Brake lights, Horn, Shift lock

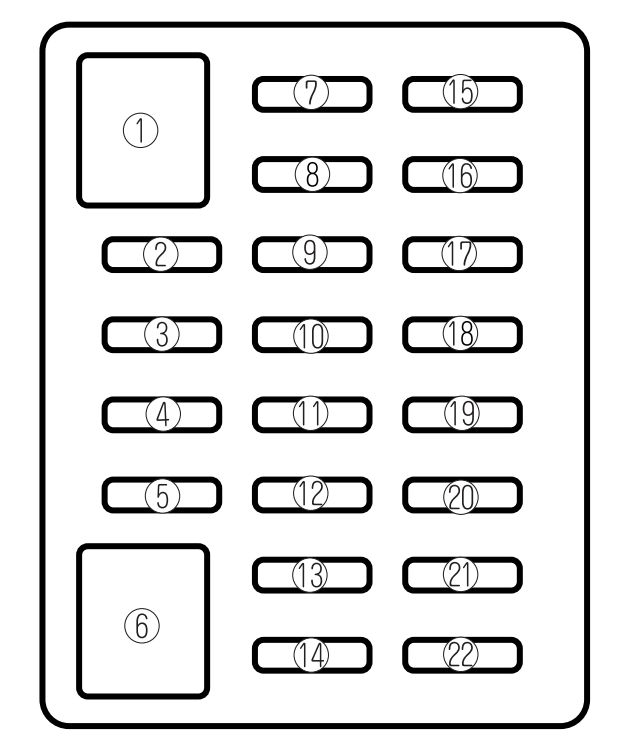

Fuse panel (Driver’s side)

Mazda MX-5 - fuse box - driver's side
Mazda MX-5 – fuse box – driver’s side
Position Description Fuse rating [A] Protected component
1 ROOM 10 Interior light, Auto antenna, Warning buzzers
2 DEFOG 15 Rear defroster*
3 TAIL 15 Tail lights, Front parking lioghts, Slide marker lights
4 HAZARD 10 Turn signal lights
5 D.LOCK* 10 Power door lock*
6 AUDIO* 20 Audio amp*
7 CIGAR 20 Cigar lighter
8 RADIO 10 Audio
9 WIPER 20 Windshield wipers ans washer
10 A/C 10 Air conditioner*
11 P.WIND 30 Power windows
12 F.FOG* 20 Fog lights
13 ENGINE 15 Engine control system
14 METER 15 Instrument cluster
15 TURN 10 Turn signal lights
16 A/B 10 Suplemental restraint system, Antilovk brake system
17
18 ST.SIG* 10 Instrument cluster, Cruise control*
19 R.FOG* 10
20 HEAD.RH 15 Headlights (RH)
21 HEAD.LH 15 Headlights (LH)
22
* –  some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
