Mazda CX-3 (2017) – fuse box diagram

Mazda CX-3 (2017) – fuse box diagram

Year of production: 2017

Fuse block (Engine compartment)

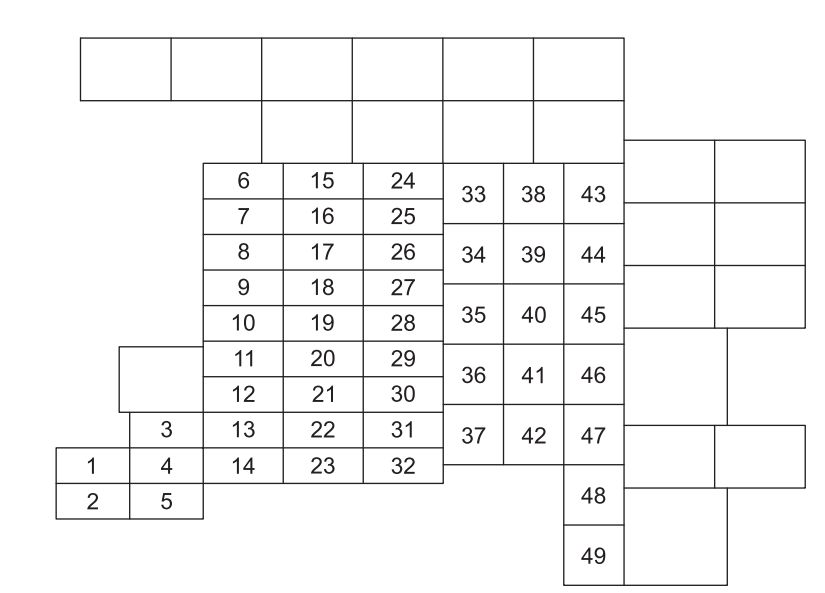

Mazda CX-3 - fuse box - engine compartment
Mazda CX-3 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 C/U IG1 15 For protection of various circuits
2 ENGINE IG1 7,5 Engine control system
3 SUNROOF 10 Moonroof *
4 INTERIOR 15 Overhead light
5 ENG+B 7,5 Engine control system
6 AUDIO2 15 Audio system
7 METER1 10 Instrument cluster
8 SRS1 7,5 Air bag
9 METER2 7,5 Instrument cluster*
10 RADIO 7,5 Audio system
11 ENGINE3 15 Engine control system
12 ENGINE1 15 Engine control system
13 ENGINE2 15 Engine control system
14 AUDIO1 25 Audio system
15 A/C MAG 7,5 Air conditioner*
16 AT PUMP 15 Transaxle control system *
17 AT 15 Transaxle control system *
18 D.LOCK 25 Power door locks
19 H/L RH 20 Headlight (RH)
20 ENg+B2 7,5 Engine control system
21 TAIL 20 Taillights, License plate lights, Parking lights
22
23 ROOM 25 Overhead light
24 FOG 15 Fog lights*
25 H/CLEAN 20
26 STOP 10 Brake lights
27 HORN 15 Horn
28 H/L LH 20 Headlight (LH)
29 ABS/DSC S 30 ABS, Dynamic stability control system *
30 HAZARD 15 Hazard warning À ashers, Turn signal lights
31 FUEL PUMP 15 Fuel system
32 FUEL WARM 25
33 WIPER 20 Front window wiper
34 CABIN+B 50 For protection of various circuits
35 FAN2 30
36 FUEL PUMP 30
37 ABS/DSC M 50 ABS, Dynamic stability control system *
38 EVVT 20 Engine control system *
39
40 FAN1 30
41 FAN3 40 Cooling fan
42 ENG.MAIN 40 Egine control system
43 EPS 60
44 DEFOG 40 Rear window defogger
45 IG2 30 For protection of various circuits
46 INJECTOR 30 Engine control system
47 HEATER 40 Air conditioner
48 P.WINDOW1 30 Power windows
49 DCDC DE 40
* Some models

 Fuse block (Left side)

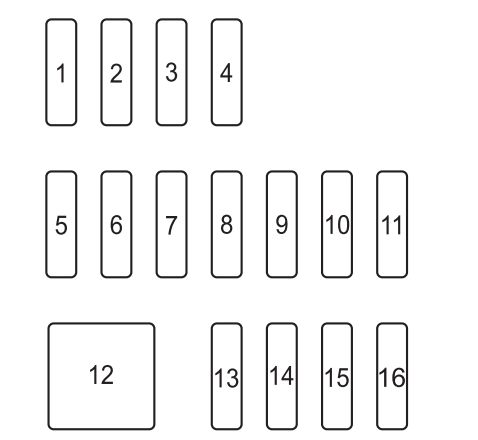

Mazda CX-3 - fuse box - left side
Mazda CX-3 – fuse box – left side
Position Description Fuse rating [A] Protected component
1
2
3
4
5 F.OUTLET 15 Accessory sockets
6
7 AT IND 7,5 AT shift indicator*
8 MIRROR 7,5 Power control mirror
9
10 P.WINDOW2 25 Power windows
11 R.WIPER 15 Rear window wiper and washer
12
13
14 SRS2/ESCL 15
15 SEAT WARM 20 Seat warmer *
16 M.DEF 7,5 Mirror defogger *
*Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
