Mazda B2000  (1985 – 1998) – fuse box diagram

Mazda B2000  (1985 – 1998) – fuse box diagram

Year of production: 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

Fuse Box on the Dashboard

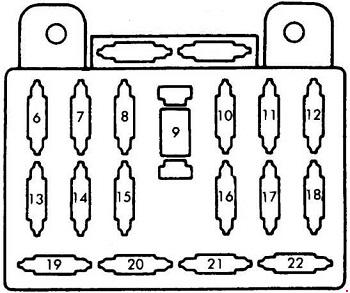

Mazda B2000 - fuse box diagram - dashboard

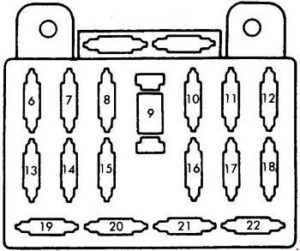

Mazda B2000 – fuse box diagram – dashboard
Number A Description
6 10 Meters, Warning Lights, Cruise Control, A/T Control System, Turn & Hazard Flashers, Back-Up Lights, Seat Belt Warning, Reminder Lights
7 10 1985-90: Automatic Transmission Control System, Charging System, Emission Control System, Fuel Pump
15 1991-98: Automatic Transmission Control System, Charging System, Emission Control System, Fuel Pump
8 15 1985-91: Rear Window Defogger
1992-98: Blank
9 30 Circuit Breaker: Heater/Air Conditioner
10 15 Wiper/Washer, Headlights
11 20 Anti-Lock Brake System
12 10 Side Marker Lights, Taillights, Parking Lights, License Lights
13 15 Stoplights, Horn, Cruise Control
14 10 Turn Lights, Hazard & Reverse Lights, Signal Lights
15 15 Seat Belt, Audio System, Emission Control, Shift Lock, Fuel Pump, Reminder Lights, Buzzers, EC-AT
16 15 Cigarette Lighter, Audio System
17 15 1985-91: Headlight Cleaner
1992-98: Blank
18 10 Air Conditioning, Heater
19 20 Carburetor Throttle Body Heater, Fuel Control System
20
21
22

Engine Compartment Fuse Box

Mazda B2000 - fuse box diagram - engine compartment
Mazda B2000 – fuse box diagram – engine compartment
Number A Description
1 30 Fuel Injection System
2
3 80 Main Circuit Protection
4 30 Stoplights, Taillights, Interior Lights & Warning Lights, Buzzers, Audio Defogger, Emission Control, Fuel Pump
5 30 Headlight

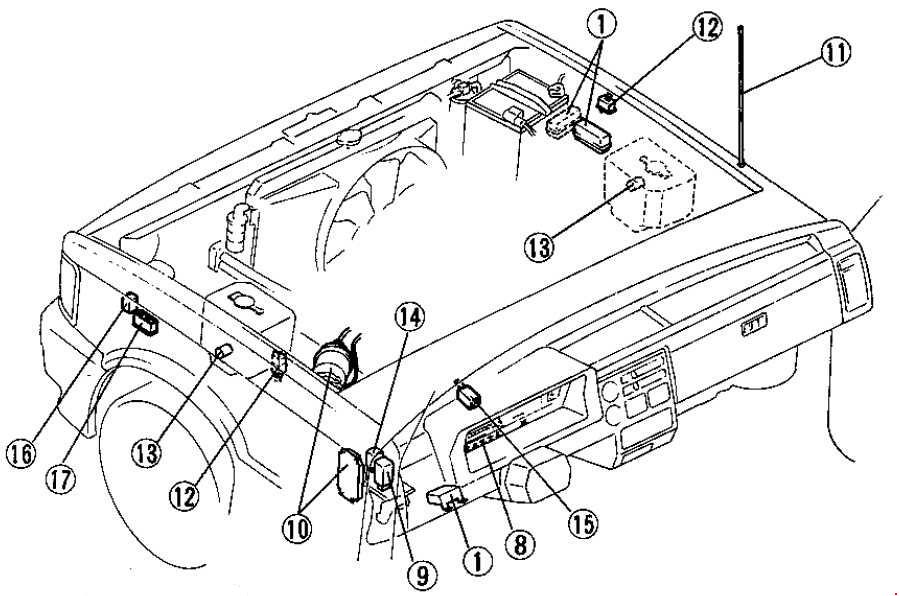

Mazda B2000 - fuse box diagram - engine compartment
Mazda B2000 – fuse box diagram – engine compartment
Number Description
1 Main fuse and fuse box
8 Warning lights and sender units
9 Warning buzzer
10 Cruise control system
11 Antenna
12 Horn relay
14 Flasher unit
15 DRL & ABS control unit
16 DRL relay
17 DRL resistor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
