Radio, Clock, Power Antenna, Rear Brake Lock-Up Control Relay
12
10
Blower Relay, Defogger Relay, Air Conditioner
13
10
Turn-Signal Light, Meter and Gauge, Remote Controlled Mirror, Power Antenna, ETACS, Automatic Seat Belt
14
10
Alternator, Back-Up Light, Overdrive Relay, Speed Control Switch

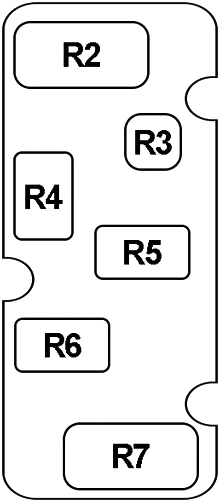

No.
Relay
R2
Turn-Signal Flasher
R3
Hazard Flasher
R4
Rear Brake Lock-Up Control
R5
Door Unlock
R6
Door Lock
R7
Overdrive

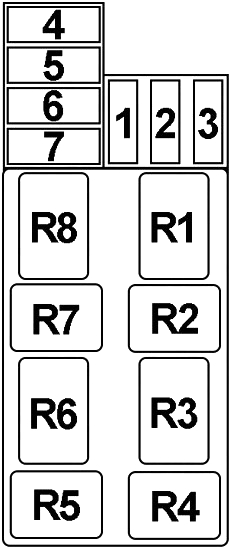

Engine Compartment Fuse Box
No.
A
Load Circuit
1
–
–
2
15
Fog Light
3
5
High Beam
No.
mm2
in2
4
0.5
.0008
Pop-Up
5
–
–
–
6
0.5
.0008
Defogger
7
0.5
.0008
Power Window
Relay
R1
Pop-Up Motor (LH)
R2
Tail Light
R3
Starter Inhibitor
R4
Power Window
R5
Defogger
R6
Wiper
R7
Headlight
R8
Pop-Up Motor (RH)
Sub Fusible Link Block
No.
mm2
in2
Load Circuit
1
0.85
.0013
Ignition
2
0.3
.0005
ECI System
3
0.85
.0013
Battery
4
0.5
.0008
Headlight
Main Fusible Link
No.
mm2
in2
Load Circuit
1
1.25
.0019
Pop-Up, Defogger, Power Window

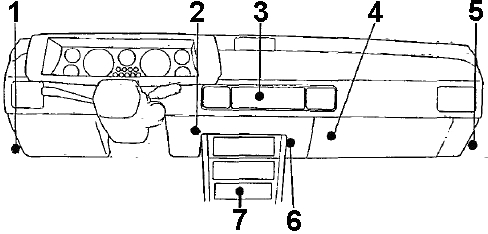

Relay Location
Turn-Signal Flasher Unit / Hazard Flasher Unit / Door Unlock Relay / Overdrive Relay / Door Lock Relay / Rear Brake Lock-Up Control Relay
Blower Relay
Automatic Air Conditioner Control Unit
Blower Motor High Speed Relay / Blower Motor Starter Cutout Relay
ECI Control Unit
Passing Control Relay
Automatic Seat Belt Control Unit
Vacuum Pump Relay
Passing Relay
Radiator Fan Air Conditioner Relay No.1 / Theft Alarm Horn Relay / Condenser Fan Motor Relay / Radiator Fan Air Conditioner Relay No.2 / Magnet Clutch Relay
Fog Light Relay / Radiator Fan Motor Relay No.1 / Radiator Fan Motor Relay No.2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
