Lincoln MKS (2008 – 2012) – fuse box diagram
Year of production: 2008, 2009, 2010, 2011, 2012

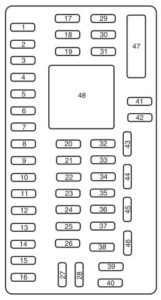

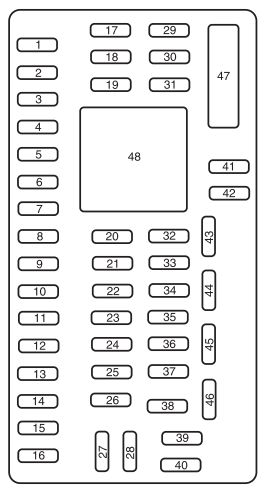

Passenger compartment fuse panel
No. | A | Protected Components |
1 | 30 | Right rear window |
2 | 15 | ’09: Brake on/off switch |
3 | 15 | Driver seat control/lumbar |
4 | 30 | Right front window |
5 | 10 | Brake shift interlock (BSI), keypad illumination (’09-’10) |
6 | 20 | Turn signals, hazards |
7 | 10 | Low beam headlamps (left) |
8 | 10 | Low beam headlamps (right) |
9 | 15 | Courtesy lamps |
10 | 15 | Illumination switch, Puddle lamps |
11 | 10 | All Wheel Drive (AWD) |
12 | 7.5 | ’09-’10: Passive Entry/Passive Start (PEPS) module ’11-’12: Intelligent access (IA) module |
13 | 5 | Memory/seats/mirrors/steering column, keypad, Driver zone module |
14 | 10 | MGM, Center information display, SYNC, GPS |
15 | 10 | Climate control |
16 | 15 | Electronic finish panel (EFP), Ambient lighting module (’10-’12) |
17 | 20 | Global windows, door locks and trunk release (less PEPS (’11-’12)) |
18 | 20 | Dual heated rear seat module (DHRSM) (battery) |
19 | 25 | Not used (spare) |
20 | 15 | Diagnostic connector |
21 | 15 | Fog lamps |
22 | 15 | Park lamps, License lamps |
23 | 15 | High beam headlamps |
24 | 20 | Horn |
25 | 10 | Demand lamps |
26 | 10 | Cluster/Heads up display |
27 | 20 | ’09-’10: Passive Entry/Passive Start (PEPS) module, Ignition Switch ’11-’12: Intelligent access (IA) module |
28 | 5 | ’09-’10: Radio mute, Radio start signal |
29 | 5 | Instrument panel cluster (run/start) |
30 | 5 | Not used (spare) |
31 | 10 | Auto high beam controller, Heads-up display |
32 | 10 | Restraint control module |
33 | 10 | Adaptive Lighting |
34 | 5 | IVD (’09), AdvanceTrac (’10-’12), Adaptive cruise control module, Electronic power assist steering module |
35 | 10 | DFHSM (’09), All wheel drive, Dual heated rear seat module, Absolute steering angle switch, Park aid (run/start) module, Blind spot information system (’11-’12) |
36 | 5 | ’09-’10: Passive anti-theft system (PATS) module |
37 | 10 | Not used (spare) |
38 | 20 | Amplifier (THX or 6 channel) |
39 | 20 | Radio/Navigation |
40 | 20 | Amplifier (THX or 2 channel) |
41 | 15 | Delayed Accessory |
42 | 10 | Not used (spare) |
43 | 10 | Rear window defroster relay, Rain sensor (’10-’12) |
44 | 10 | Not used (spare) |
45 | 5 | Wiper relay and module, Blower relay |
46 | 7.5 | Occupant classification sensor (OCS), Electronic finish panel, Climate control |
47 | 30 | Circuit Breaker: Not used |
Relay | ||
48 | Delayed accessory |
Engine Compartment Fuse Box

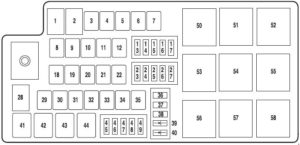

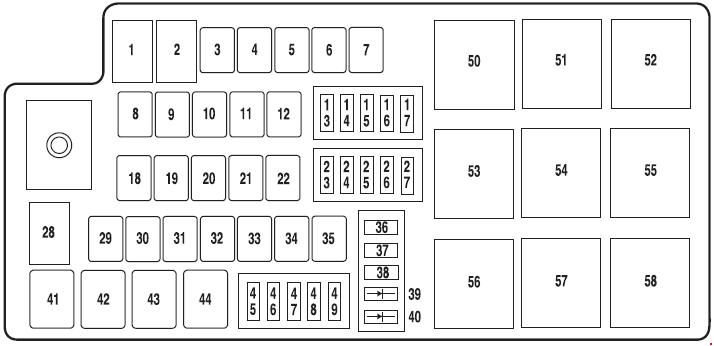

2009

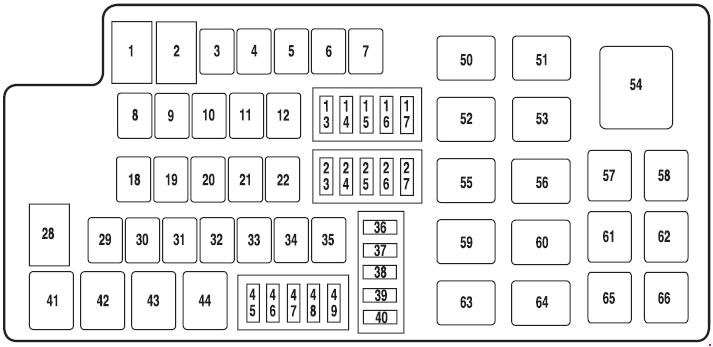

2010-2012
No. | A | Protected Components |
1 | 80 | Passenger compartment fuse panel power |
2 | 80 | Passenger compartment fuse panel power |
3 | — | Not used |
4 | 30 | Front wipers |
5 | 30 | Passenger power seat |
6 | 20 | Cigar lighter |
7 | — | Not used |
8 | 30 | Moonroof |
9 | 40 | Anti-lock Brake System (ABS) pump |
10 | 30 | Starter relay |
11 | 30 | Powertrain Control Module (PCM) relay |
12 | 20 | ABS valve |
13 | 15 | Adapt cruise |
14 | 10 | ’10-’12: Brake on/off switch |
15 | 15 | Auto high beam |
16 | 20 | Left high intensity discharge (HID) headlamp |
17 | 10 | Alternator sense |
18 | — | Not used |
19 | 20 | Power point |
20 | 40 | ’09-’10: Rear window defroster |
50 | ’11-’12: Rear window defroster | |
21 | 20 | Console power point |
22 | 30 | Front heated/cooled seats |
23 | 7.5 | ’09-’10: PCM Keep alive power, Canister vent |
10 | ’11-’12: PCM Keep alive power, Canister vent | |
24 | 10 | A/C clutch relay |
25 | 20 | Right high intensity discharge (HID) headlamp |
26 | 10 | Backup relay |
27 | 15 | Fuel pump |
28 | 60 | 3.7L: Cooling fan |
80 | 3.5L: Cooling fan | |
29 | 30 | Left rear window |
30 | 30 | Left front window |
31 | — | Not used |
32 | 30 | Driver seat module |
33 | 30 | ’09-’10: Passive entry/passive start (PEPS) run/start relay |
40 | ’11-’12: Intelligent access (IA) run/start relay | |
34 | — | Not used |
35 | 40 | Front A/C blower motor |
36 | 20 | Passenger compartment fuse panel run/start |
37 | 10 | Powertrain Control Module (PCM) run/start |
38 | 5 | Delayed Accessory |
45 | — | Not used |
46 | 15 | Vehicle power 2 (PCM), Vehicle power 3 (PCM) |
47 | 15 | 3.7L (’09-’11): PCM Vehicle power 1 |
20 | 3.7L (’12) and 3.5L: PCM Vehicle power 1 | |
48 | 15 | Vehicle power 4 – Ignition coils |
49 | 10 | Heated mirrors |
Diode | ||
39 | Fuel pump (only 3.7L) | |
40 | One-touch integrated start (OTIS) | |
Relay | ||
41 | A/C clutch | |
42 | Fuel pump | |
43 | Backup | |
44 | Auto high beam | |
50 | ’09: PCM ’10-’12: Blower motor |
|
51 | ’09: Blower motor ’10-’12: Fog deactivation |
|
52 | Starter | |
53 | ’09: Rear window defroster ’10-’12: Adaptive cruise control (stop lamps) |
|
54 | ’09: Front wiper | |
55 | ’09: Fog deactivation ’10-’12: Front wiper |
|
56 | ’09: On/start ’10-’12: HBL |
|
57 | ’09: Adapt cruise (stop lamps) | |
58 | Not used | |
59 | ’10-’12: Not used | |
60 | ’10-’12: Not used | |
61 | ’10-’12: Not used | |
62 | ’10-’12: Not used | |
63 | ’10-’12: Run/start | |
64 | ’10-’12: Powertrain Control Module (PCM) | |
65 | ’10-’12: Not used | |
66 | ’10-’12: Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
