Lincoln Mark LT (2005 – 2008) – fuse box diagram

Lincoln Mark LT (2005 – 2008) – fuse box diagram

Year of production: 2005, 2006, 2007, 2008

Passenger compartment fuse panel/power distribution box

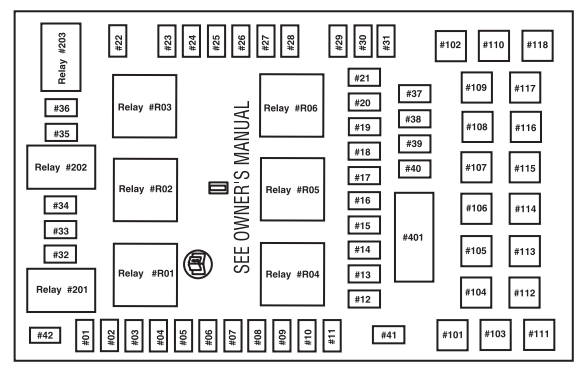

Lincoln Mark LT - fuse box diagram- passenger compartment/ power distribution box
Lincoln Mark LT – fuse box diagram- passenger compartment/ power distribution box
No. A Protected components
1 10 Run/Accessory – Wipers, Instrument cluster
2 20 Stop/Turn lamps, Brake on/off switch, Hazard flashers (’07-’08)
3 5 ’05-’06: Power mirrors, Memory seats and pedals
7.5 ’07-’08: Power mirrors, Memory seats and pedals, Driver power seat
4 10 DVD battery power, Power fold mirror
5 7.5 Keep alive memory for Powertrain Control Module (PCM) and climate control module
6 15 Parklamps, BSM, Instrument panel illumination
7 5 Radio (start signal)
8 10 Heated mirrors, Switch indicator
9 20 ’07-’08: Fuel pump relay, Fuel injectors
10 20 Trailer tow back-up lamps relay (PCB1), Trailer tow park lamp relay (R201)
11 10 A/C clutch, 4×4 solenoid
12 5 ’07-’08: PCM relay coil
13 10 Climate control module power, Flasher relay
14 10 Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV, Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror, Navigation radio (reverse input (’07-’08))
15 5 Overdrive cancel, Cluster, Traction control switch (’07-’08)
16 10 Brake-shift interlock solenoid
17 15 Fog lamp relay (R202)
18 10 Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System)
19 10 Restraints (Airbag module), OCS (’07-’08)
20 10 Battery feed for overhead power point
21 15 Cluster keep alive power
22 10 Delayed accessory power for audio, power door lock switch and moonroof switch illumination
23 10 RH low beam headlamp
24 15 Battery saver power for demand lamps
25 10 LH low beam headlamp
26 20 Horn relay (PCB3), Horn power
27 5 Passenger Airbag Deactivation (PAD) warning lamp, Cluster airbag warning lamp (’05-’06), Cluster RUN /START power
28 5 SecuriLock transceivers (PATS)
29 15 PCM 4×4 power
30 15 PCM 4×4 power
31 20 Radio power, Satellite radio module (’07-’08)
32 15 Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Electronic fan clutch (’07-’08)
33 15 Shift solenoid, CMS #12 and #22
34 20 ’05-’06: Fuel injectors and PCM power
15 ’07-’08: Fuel injectors and PCM power
35 20 Instrument cluster high beam indicator, High beam headlamps
36 10 Trailer tow right turn/stop lamps
37 20 Rear power point, Center console power point (’07-’08)
38 25 Subwoofer power
39 20 ’05-’06: Instrument panel powerpoint
40 20 Low beam headlamps, DRL
41 20 ’05-’06: Cigar lighter, Diagnostic connector power
42 10 Trailer tow left turn/stop lamps
101 30 Starter solenoid
102 20 Ignition switch feed
103 20 ABS valves
104 Not used
105 30 Electric trailer brakes
106 30 Trailer tow battery charge
107 30 Power door locks (BSM)
108 30 Passenger power seat
109 30 Driver power seat, Adjustable Pedals, Memory module (pedals, seat, mirror; (’07-’08))
110 20 ’07-’08: Cigar lighter, Diagnostic connector power
111 30 4×4 relays
112 40 ABS pump power
113 30 Wipers and washer pump
114 40 Heated backlight, Heated mirror power
115 20 ’07-’08: Moonroof
116 30 Blower motor
117 20 ’07-’08: Instrument panel powerpoint
118 30 Heated seats
401 30 Circuit breaker: Power Windows, Moonroof, Power sliding backlight
Relay
R01 Starter solenoid
R02 Accessory delay
R03 Hi-beam headlamps
R04 Heated backlight
R05 Trailer tow battery charge
R06 Blower motor
R201 Trailer tow park lamps
R202 Fog lamps
R203 PCM

Auxiliary relay box

Type 1

With Daytime Running Lamp (DRL) or 4×4 options

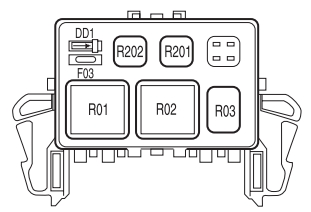

Lincoln Mark LT - fuse box diagram - auxiliary relay box
Lincoln Mark LT – fuse box diagram – auxiliary relay box

Type 2

Without Daytime Running Lamp (DRL) and 4×4 options

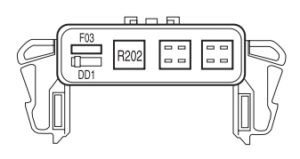

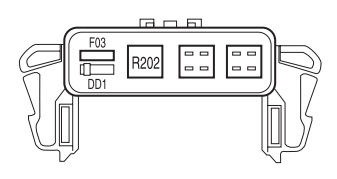

Lincoln Mark LT - fuse box diagram - auxiliary relay box (with DRL and 4x4 options)
Lincoln Mark LT – fuse box diagram – auxiliary relay box (with DRL and 4×4 options)
No. A Protected components
F03 5 Clockspring illumination
Relay
R01 4×4 CCW
R02 4×4 CW
R03 Daytime Running Lamps (DRL) high beam disable
R201 DRL
R202 A/C Clutch
Diode
D01 A/C Clutch
D02 ’08: One-Touch Integrated Start (OTIS)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
