Lincoln Aviator (2002 – 2005) – fuse box diagram
Year of production: 2002, 2003, 2004, 2005

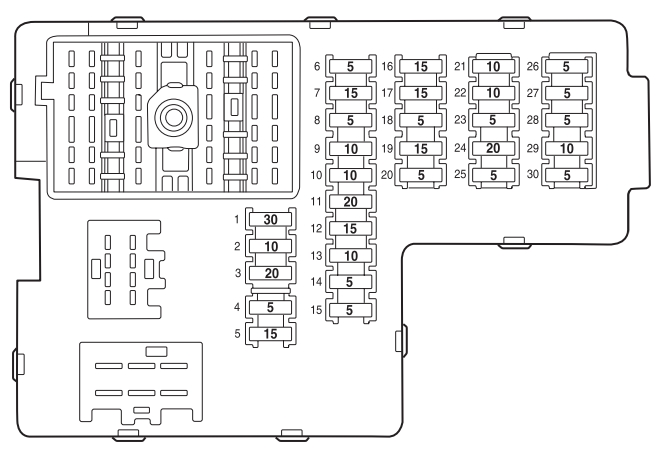

Passenger compartment fuse panel
Lincol Aviator – fuse box – passenger compartment
| Fuse |
Ampere rating [A] |
Description |
| 1 |
30 |
Moonroof, Driver seat switch |
| 2 |
10 |
VAPS module, Memory seat module, Body security module |
| 3 |
20 |
Radio, Navigation, Telematics |
| 4 |
5 |
Front wiper module |
| 5 |
15 |
Flasher relay (turn/hazards) |
| 6 |
5 |
Power antenna, Radio, Moonroof motor, Driver window motor, Navigation |
| 7 |
15 |
Heated mirrors, DEATC module |
| 8 |
5 |
Daytime Running Lamps (DRL) module |
| 9 |
10 |
Back-uplamps (DTRS) |
| 10 |
10 |
Heated backlight relay coil, Climate seat modules, Auxiliary A/C temperature blend/mode actuator, A/C clutch relay contact |
| 11 |
20 |
Not used (spare) |
| 12 |
15 |
Restraints module |
| 13 |
10 |
Brake shift interlock |
| 14 |
5 |
Cornering lamps |
| 15 |
5 |
Instrument cluster, Rear wiper module, Telematics |
| 16 |
15 |
Cigar lighter, OBD II, Liftgate release relay coil and contacts |
| 17 |
15 |
Delayed accessory relay coil, Battery saver relay coil and contacts |
| 18 |
5 |
Not used (spare) |
| 19 |
15 |
Washer pump |
| 20 |
5 |
Shifter, Clock, Power mirror switch, DVD |
| 21 |
10 |
Brake pressure switch (ABS), IVD switch, Flasher relay |
| 22 |
10 |
ABS module |
| 23 |
5 |
Sunload/Autolampsensor (SecuriLock transceiver LED) |
| 24 |
20 |
Subwoofer, Navigation |
| 25 |
5 |
Puddle lamprelay coil, Trailer tow battery charge relay coil |
| 26 |
5 |
SecuriLock transceiver |
| 27 |
5 |
Rear park assist, VAPS module, Telematics |
| 28 |
5 |
Radio, Navigation |
| 29 |
10 |
DTRS, Feed to Fuse 28 |
| 30 |
5 |
Instrument cluster, Compass module, Auxiliary A/C relay coil |

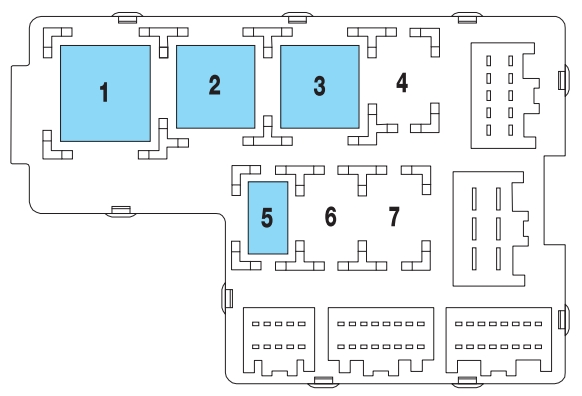

Relay in passeneger compartment (located on the reverse side of the fuse box)
Lincol Aviator – fuse box – passenger compartment (relay)
| Relay |
Description |
| Relay 1 |
Flasher relay |
| Relay 2 |
Heated backlight relay |
| Relay 3 |
Delayed accessory relay |
| Relay 4 |
Open |
| Relay 5 |
Battery saver relay |
| Relay 6 |
Open |
| Relay 7 |
Open |

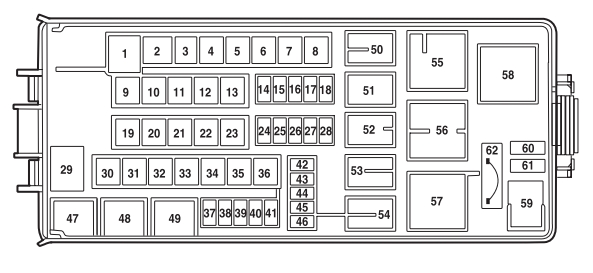

Power distribution box
Lincol Aviator – power distribution box
| Fuse |
Ampere rating [A] |
Description |
| 1 |
60** |
PJB |
| 2 |
30** |
Door locks (BSM) |
| 3 |
— |
Not used |
| 4 |
40** |
Heated backlight/mirrors |
| 5 |
40** |
Anti-lock Brake System (ABS) module (pump) |
| 6 |
60** |
Delayed accessory |
| 7 |
20** |
DRL |
| 8 |
20** |
Electric cooling fan |
| 9 |
20** |
Headlampswitch, Foglampswitch |
| 10 |
30** |
ABS module (valves) |
| 11 |
40** |
PTEC relay contacts |
| 12 |
50** |
Ignition/Starter relay |
| 13 |
40** |
Trailer tow relays |
| 14 |
15* |
Brake lampfeed |
| 15 |
10* |
Keepalive power (PTEC/cluster/DEATC) |
| 16 |
20* |
Power point #3 |
| 17 |
20* |
Rear wiper module |
| 18 |
20* |
4×4 module |
| 19 |
30** |
Driver window motor |
| 20 |
30** |
Electric trailer brakes |
| 21 |
30** |
Memory seat module |
| 22 |
20** |
High beam relays fuse |
| 23 |
30** |
Ignition switch |
| 24 |
20* |
Horn relay |
| 25 |
20* |
Power point #1 |
| 26 |
20* |
Fuel pump relay contacts |
| 27 |
20* |
Trailer tow lamps |
| 28 |
20* |
Power point #2 |
| 29 |
60** |
PJB |
| 30 |
30** |
Front wiper module |
| 31 |
30** |
Climate-controlled seats |
| 32 |
30** |
Passenger seat switch |
| 33 |
30** |
Auxiliary blower motor |
| 34 |
20** |
Right HID relay |
| 35 |
20** |
Left HID relay |
| 36 |
40** |
Blower motor |
| 37 |
15* |
A/C clutch relay, TXV, Transmission, Speed control |
| 38 |
15* |
HEGO, VMV, Canister vent, IMCC-LSRC, Heated PCV, EGR module |
| 39 |
15* |
Injectors |
| 40 |
15* |
PTEC, Mass Air Flow (MAF) Sensor, Fuel pump relay |
| 41 |
25* |
Coil on plug, PTEC relay |
| 42 |
10* |
Right low beam (halogen) |
| 43 |
10* |
Left low beam (halogen) |
| 44 |
15* |
Fog lamprelay |
| 45 |
2* |
Brake Pressure Switch |
| 46 |
20* |
High beam |
| 47 |
— |
Horn relay |
| 48 |
— |
Fuel pump relay |
| 49 |
— |
High beam relay |
| 50 |
— |
Fog lamp relay |
| 51 |
— |
DRL relay |
| 52 |
— |
A/C clutch relay |
| 53 |
— |
Trailer tow right turn relay |
| 54 |
— |
Trailer tow left turn relay |
| 55 |
— |
Blower motor relay |
| 56 |
— |
Starter motor relay |
| 57 |
— |
PTEC relay |
| 58 |
— |
Ignition relay |
| 59 |
— |
Driver brake applied relay |
| 60 |
— |
PCM diode |
| 61 |
— |
A/C clutch diode |
| 62 |
30*** |
Power windows |
| * Mini Fuses
** Maxi Cartridge Fuses
*** Circuit breaker |
Auxiliary relay box
Lincol Aviator – auxiliary relay box
| Relay |
Description |
| Relay 64 |
Right HID relay |
| Relay 65 |
Left HID relay |
| Relay 66 |
EDF relay |

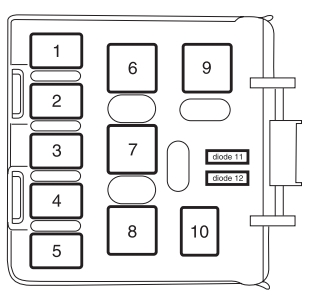

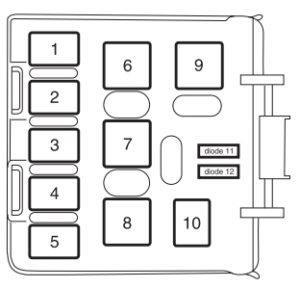

Rear relay box
Lincol Aviator – rear relay box
| Relay |
Description |
| Relay 1 |
Liftgate release solenoid |
| Relay 2 |
Open |
| Relay 3 |
Open |
| Relay 4 |
Trailer tow back-uplamps |
| Relay 5 |
Open |
| Relay 6 |
Open |
| Relay 7 |
Trailer tow battery charge |
| Relay 8 |
Trailer tow park lamps |
| Relay 9 |
Open |
| Relay 10 |
Puddle lamps |
| Diode 11 |
Open |
| Diode 12 |
Open |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
