Ford Ranger (1997) – fuse box diagram
Year of production: 1997
Fuse box in the passenger compartment
| Fuse/CB | Ampere rating [A] | Description |
| 1 | 7,5 | Power mirror |
| 2 | — | Open |
| 3 | 15 | Parking lamps |
| 4 | 10 | Left headlamp |
| 5 | 10 | OBD II system |
| 6 | 7,5 | Air bag system, blower relay, passive deactivation (PAD) module |
| 7 | 7,5 | Illum. switches |
| 8 | 10 | Right headlamp, fog lamp system, DRL mode |
| 9 | 10 | Anti-lock system |
| 10 | 7,5 | Speed control, GEM system, Brake interlock, A/C system |
| 11 | 7,5 | Warning lamps, instrument cluster gauges |
| 12 | 10 | Front wash system, power windows |
| 13 | 15 | PCM system, stop lamps, 4 wheel drive, anti-lock brake, speed control |
| 14 | 10/20 | Anti-lock system |
| 15 | 7,5 | Air bag system, alternator |
| 16 | 30 | Front wiper |
| 17 | 15 | Cigar lighter |
| 18 | 15 | A/C system |
| 19 | 25 | Ignition coil, PCM system |
| 20 | 7,5 | Radio, GEM system, Anti-theft |
| 21 | 15 | Hazard lamps |
| 22 | 10 | Turn signals |
| 23 | — | Not used |
| 24 | 10 | Starter relay, anti-theft |
| 25 | 7,5 | Speedometer, GEM system |
| 26 | 10 | 4R44E/4R55E overdrive, backup lamps, DRL system |
| 27 | 10 | Map lights, glove box lamp, dome lamp, visior lamps, 4×4 system |
| 28 | 7,5 | GEM system |
| 29 | 10 | Audio system |
| 30 | — | Not used |
| 31 | — | Not used |
| 32 | — | Not used |
| 33 | 15 | High beam lamps, DRL system, instrument cluster |
| 34 | — | Not used |
| 35 | — | Open |
| 36 | — | Open |

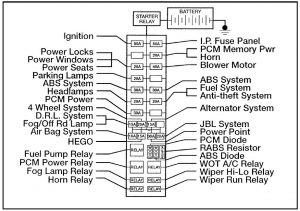

Power distribution box
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
