Lexus GS350 (2007) – fuse box diagram

Lexus GS350 (2007) – fuse box diagram

Year of production: 2007

Engine compartment (Type A)

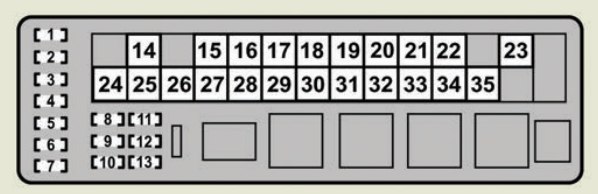

Lexus GS350 - fuse box - engine compartment (type A)
Lexus GS350 – fuse box – engine compartment (type A)
Fuse Ampere rating [A] Circuit protected
1 ECU-B 10 VGRS, EPS, Driver’s seat switch module, Lexus Link System ECU
2 ABS MAIN3 10 ECB system
3 TURN-HAZ 15 Turn signal lights, Emergency flashers
4 IG2 MAIN 20 IG2, GAUGE and IGN
5 RND NO.2 30 Audio system
6 D/C CUT 20 DOME and MPX-B
7 RND NO.1 30 Audio system
8 MPX-B 10 Multiplex communication system, Front controller, Door control system (Power door lock system, Door courtesy
lights, Power windows, Power rear view mirror control system, Outside rear view mirror heaters), Power seat system, Steering sensors, ECB system, Power tilt and telescopic steering wheel, Gauges and meters, Combination switch
9 DOME 10 Foot lights, Vanity lights, Gauges and meters, Steering spot light, Steering switch illumination, Rear personal lights, Automatic transmission selector lever spot light, Front personal lights
10 CDS 10 NOIS FILTER
11 ABS MAIN2 10 ECB system
12 ABS MOTOR 30 ABS
13 ABS MAIN1 10 Capacitor
14 E/G-B 60 FR CTRL BATT, ECTS and ALT-S
15 ABS1 50 VSC system, ABS MAIN1, ABS MAIN2 and ABS MTR
16 RH J/B-B 30 AM2, DOOR FR, and DOOR RR
17 VGRS 40 VGRS
18 MAIN 30 H-LP R LWR and H-LP L LWR
19 STARTER 30 Starting system
20 LH J/B-B 30 FL DOOR, RL DOOR and RND NO.3
21 P/I-B 60 Multi-port fuel injection system/sequential multiport fuel injection system
22 EPS 80 EPS
23 ALT 150 RH J/B-AM, LH J/B-AM, E/G-AM, RR JB, HEATER, DEFOG, FAN1, FAN2, ABS2, ABS MOTOR, ABS MAIN1, and ABS MAIN2
24 RR J/B 80 STOP LP R, STOP LP L, RR-B, RR TAIL, RR FOG, RR-IG1, PSB, and RR S/SHADE
25 GLW PLG1 50 Glow plug heater
26 RH J/B-AM 80 AM1, OBD, STOP SW, TI&TE, PWR OUTLET, FR P/SEAT RH, STR LOCK, ECU-IG RH, RH-IG, ACC, CIG, SECURITY, FR S/HER RH and AIR SUS
27 ABS2 30 VSC, ABS
28 DEFOG 50 Rear window defogger, Noise filter
29 CDS 40 F: CDS
30 FAN1 40 Electric cooling fans
31 HEATER 50 Air conditioning system
32 GLW PLG2 50 Glow plug heater
33 E/G-AM 60 H-LMP CLN, FR CTRL-AM and
A/C COMP
34 LH J/B-AM 80 S/ROOF, FR P/SEAT LH, TV, FR S/HTR LH, FR WIP, H-LP LVL, LH-IG, FUEL OPEN, A/C, PANEL and LH-B
35 FAN2 60

 Engine compartment (Type B)

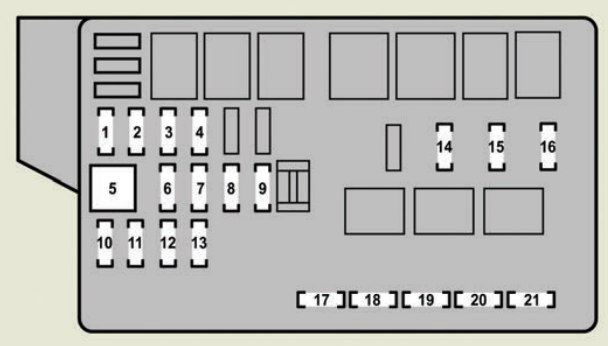

Lexus GS350 - fuse box - engine compartment (type B)
Lexus GS350 – fuse box – engine compartment (type B)

6: only for GS430 equipped with active stabilizer suspension system

Fuse Ampere rating [A] Circuit protected
1 FR CTRL-B 25 Headlight high beam, horn
2 A/F 15 Exhaust system
3 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
4 ALT-S 7,5 Charging system
5 H-LP CLN 30 Headlight cleaner
6 STB-AM 30 DC/DC converter
7 A/C COMP 7,5 Air conditioning system
8 DEICER 25
9 FR CTRL-AM 30 Front fog lights, parking lights, windshield washer
10 IG2 10 Ignition system
11 EFI NO.2 10 Fuel system, exhaust system
12 H-LP R LWR 15 Headlight low beam (right)
13 H-LP L LWR 15 Headlight low beam (left)
14 F/PMP 25 Fuel system
15 EFI 20 (GS430) Multiport fuel injection system/sequential multiport fuel injection system
25 (GS350)
16 INJ 20 Multiport fuel injection system/sequential multiport fuel injection system
17 H-LP UPR 15 Headlight high beams
18 HORN 10 Horns
19 WASHER 20 Windshield washer
20 FR TAIL 10 Parking lights
21 FR FOG 15 Front fog lights

Driver’s side instrument panel

Lexus GS350 - fuse box - driver's side instrument panel
Lexus GS350 – fuse box – driver’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT LH 30 Power seat system
2 A/C 7,5 Air conditioning system
3 TV 7,5 Audio system, Air conditioning system, Rear view monitor system
4 TRK OPN 10 Trunk lid opener
5 LH-B 10 Theft deterrent system
6 S/ROOF 25 Moon roof
7 PANEL 7,5 Steering switch illumination, Audio system, Glove box light, Automatic transmission selector lever illumination, Console box light, Adaptive variable suspension switch illumination, Cigarette lighter illumination, Air conditioning system, VSC off switch illumination, Driving pattern selector switch, Seat heater or Heated and ventilated seat switches, Register ILL RH, Register ILL LH,Register ILL CTR
8 FUEL OPEN 10 Fuel filler door opener, Trunk lid opener
9 ECU-IG LH 10 VSC system, ECB system, Yaw rate and G sensor, Steering sensor, Cruise control system, Dynamic radar cruise control system, EPS system, VGRS system, Rear view monitor system, Four-wheel drive system, FR S/HTR LHFront controller, Moon roof, Rain sensor
10 FR S/HTR LH 15 Seat heater or Heated and ventilated seats
11 RR DOOR LH 20 Rear left door control system (Power door lock system, Door courtesy light, Power window
12 FR DOOR LH 20 Front left door control system (Power door lock system, Power rear view mirror control system, Door courtesy light, Outside rear view mirror heater, Power window
13 RAD NO.3 10 Audio system
14 H-LP LVL 7,5 AFS, Automatic headlight leveling control system
15 LH-IG 10 Charging system, Headlight cleaners,
Exhaust gas sensor, Rear window
defogger, Electric cooling fans, Rear
left door control system, Front left
door control system, Emergency
flashers, Automatic transmission,
Seat belt pretensioners, Intuitive
parking assist
16 FR WIP 30 Windshield wipers and washer

Passenger’s side instrument panel

Lexus GS350 - fuse box - passenger's side instrument panel
Lexus GS350 – fuse box – passenger’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT RH 30 Power seat system
2 OBD 7,5 On-board diagnosis system
3 STOP SW 7,5 Stop/tail lights, Multi-port fuel injection system/sequential multiport fuel injection system, Starting system, ECB system, VSC system, Shift lock system
4 AM1 7,5
5 TI&IE 20 Power tilt and telescopic steering wheel, Multiplex communication system
6 SECURITY 7,5 Smart access system with push-button start
7 STR LOCK 25 Steering lock system
8 GAUGE 7,5 Gauges and meters
9 IGN 10 Multi-port fuel injection system/sequential multiport fuel injection system, SRS airbag system, Stop/tail lights, Steering lock system, ECB system, Lexus Link System ECU, Occupant classification system ECU
10 ACC 7,5 Multiplex communication system, Smart access system with push-button start, Rear view monitor system, Audio system, Air conditioning system, Lexus Link System ECU
11 CIG 15 Cigarette lighter
12 PWR OUTLET 15 Power outlet
13 AIR SUS 20 Adaptive variable suspension system
14 RR DOOR RH 20 Rear right door control system (Power door lock system, Door courtesy light, Power window)
15 FR DOOR RH 20 Front right door control system (Power door lock system, Power rear view mirror control system, Door courtesy light, Outside rear view mirror heater, Power window), Multiplex communication system
16 AM2 15 Starting system
17 RH-IG 7,5 Seat heater switches, Front right door control system, Rear right door control system, Capacitor, Combination switch, Seat belt pretensioners, Intuitive parking assist
18 FR S/HTR RH 15 Seat heaters and ventilators
19 ECU-IG RH 10 Electric tilt and telescopic steering, Multiplex communication system, Smart access system with push-button start, Audio system, Air conditioning system, Shift lock system, Tire pressure warning system, Combination switch, Front stabilizer, Rear stabilizer, DC/DC converter

Luggage compartment

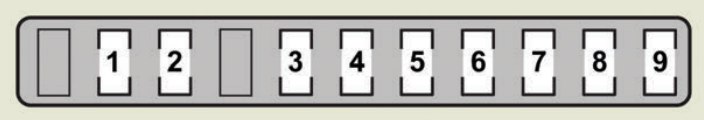

Lexus GS350 - fuse box - luggage compartment
Lexus GS350 – fuse box – luggage compartment
Fuse Ampere rating [A] Circuit protected
1 RR S/SHADE 7,5 Rear sunshade
2 PSB 30 Pre-collision seat belt
3 RR-IG2 10
4 RR-IG1 10 Pre-collision seat belt, seat belt pretensioners
5 RR-B 10 Trunk light
6 RR FOG 7,5
7 STOP LP L 10 Stoplights, back-up light
8 STOP LP R 10 High mounted stoplights
9 RR TAIL 10 Tail lights, license plate lights

Luggage compartment (vehicles with active stabilizer suspension system)

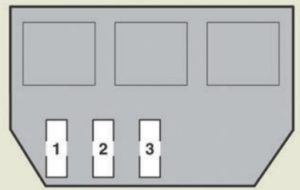

Lexus GS350 - fuse box - luggage compartment (vehicle with active stabilizer suspension system)
Lexus GS350 – fuse box – luggage compartment (vehicle with active stabilizer suspension system)
Fuse Ampere rating [A] Circuit protected
1 STB FR 50 Front stabilizer
2 STB RR 30 Rear stabilizer
3 STB DC/DC 30 DC/DC converter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
