Land Rover Discover (1989 – 1998) – fuse box diagram
Year of production: 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

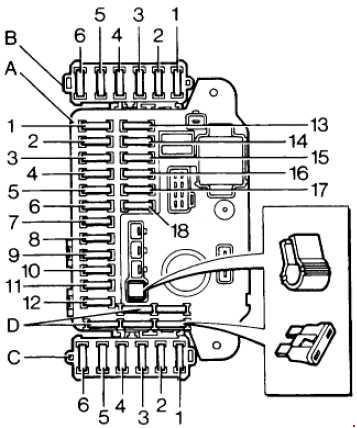

Fuse Box
No. |
A |
Description |
1 | 15 | Stop lights, direction indicators |
2 | 10 | LH side light |
3 | 10 | Radio/cassette/CD player |
4 | 10 | RH headlight main beam |
5 | 10 | LH headlight main beam |
6 | 20 | Cigar lighter |
7 | 10 | Airbag SRS |
8 | 10 | RH side lights |
9 | 10 | Rear fog guard lights |
10 | 10 | RH headlight dipped beam |
11 | 10 | LH headlight dipped beam |
12 | 10 | Multi-function unit |
13 | 10 | Ignition feed for Multi-function unit |
14 | 10 | Instruments, clock, speed transducer, SRS (secondary) |
15 | 10 | Air conditioning, windows |
16 | 20 | Washers & wipers – front |
17 | 10 | Starter, glow plug |
18 | 10 | Wash/wipe – rear, mirrors, cruise control |
‘B’ Satellite | ||
1 | 30 | Electric windows – front |
2 | 30 | Electric windows – rear |
3 | 10 | Anti-lock braking |
4 | 15 | Central door locking |
5 | 30 | Electric sun roof |
6 | 20 | Trailer lights |
‘C’ Satellite | ||
1 | 15 | Anti-theft alarm |
2 | 20 | Headlight washers |
3 | 10 | Engine management |
4 | 5 | Anti-lock brakes |
5 | 10 | Anti-theft alarm |
6 | 25 | Rear air conditioning, heater |

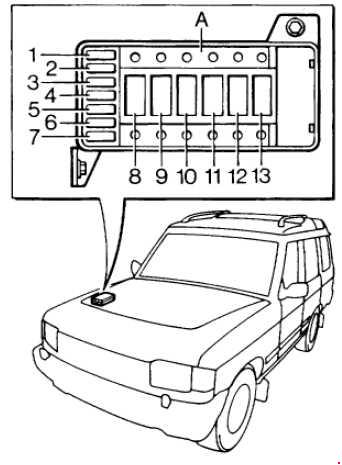

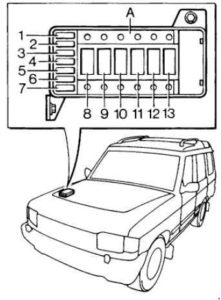

Engine Compartment Fuse Box
No. |
A |
Description |
1 | 30 | Heated rear window |
2 | 20 | Lights |
3 | 30 | Air conditioning |
4 | 30 | Hazard warning lights, horn |
5 | 30 | Anti-lock braking |
6 | 5 | Fuel pump |
7 | 20 | Fuel system |
8 | ABS pump | |
9 | Ignition circuits | |
10 | Lighting | |
11 | Window lift, central door locking, rear blower | |
12 | Heater, air conditioning | |
13 | Generator |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
