Kubota L3240, L3540, L4240, L5740 – fuse box diagram
Year of production:
Fuse box
ROPS

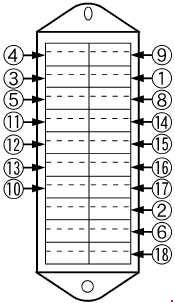

CAB
| Number | Ampere ratting [A] | Protected circuit |
| 1 | 7,5 | Alternator |
| 2 | 15 | Head lights |
| 3 | 15 | ROPS: Hazard |
| 20 | CAB: Hazard | |
| 4 | 5 | Panel |
| 5 | 5 | T/M Controller 1 |
| 6 | 10 | ROPS: Work light |
| 15 | CAB: Work light | |
| 7 | 5 | ROPS: Brake lamp switch |
| 8 | 10 | T/M Controller 2 |
| ROPS, MT: OPC Controller | ||
| 9 | 5 | Key stop |
| 10 | 30 | Starter relay |
| 11 | 10 | CAB: Dome lamp |
| 12 | 20 | CAB: Aircon blower |
| 13 | 5 | CAB: Radio cassette |
| 14 | 20 | CAB: Cigar lighter |
| 15 | 7,5 | CAB: Aircon compressor |
| 16 | 30 | CAB: Wiper |
| 17 | 15 | CAB: Flasher |
| 18 | 30 | CAB: Defogger |
| Number | Ampere ratting [A] | Protected circuit |

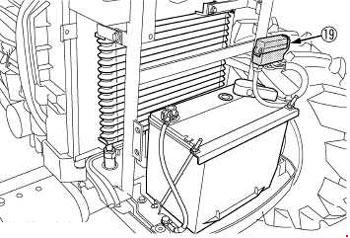

| 19 | Slow blow | Check circuit against wrong battery |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
