KIA Sedona VQ (2006 – 2010) – fuse box diagram

KIA Sedona VQ (2006 – 2010) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010

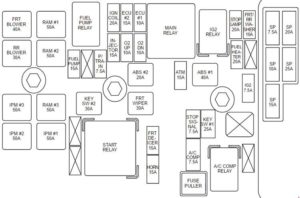

Engine compartment fuse box

KIA Sedona VQ - fuse box diagram - engine compartment
KIA Sedona VQ – fuse box diagram – engine compartment
Fuse
A
Circuit Protected
FRT/RR WASHER 10 FRONT WASHER MOTOR RELAY, REAR WASHER MOTOR RELAY
STOP LAMP 20 STOP LAMP SWITCH
KEY SW #1 25 IGNITION SWITCH
STOP SIGNAL 7.5 ABS CONTROL MODULE, ESP CONTROL MODULE, PCM (GSL), ECM (DSL), TCM (DSL)
A/C COMP 7.5 A/C COMP RELAY
ATM 15 ATM RELAY
FRT DEICER 15 WINDSHIELD DEFOGGER RELAY
HORN 15 HORN RELAY
ECU #1 10 A/C COMP RELAY, PCM (GSL), MASS AIR FLOW SENSOR (GSL), STOP LAMP SWITCH (2.9L VGT), IMMOBILIZER MODULE, ECM (DSL), AIRCON RELAY (2.9L WGT), COOLING BOX (2.7L)
02 DN 10 OXYGEN SENSOR (GSL)
ECU #2 15 PCM (GSL), VARIABLE INTAKE MANIFOLD VALVE (GSL), COOLING FAN RELAY (3.8L), PCSV (GSL), OCV (GSL), ECM (DSL)
02 UP 10 OXYGEN SENSOR (GSL)
IGN COIL 20 IGNITION COIL #1 – #6 (GSL), CONDENSER (GSL)
INJECTOR 15 INJECTOR #1 – #6 (GSL), PCM (GSL), INLET METERING VALVE (DSL), EGR SOLENOID VALVE (2.9L WGT), VGT CONTROL SOLENOID VALVE (2.9L VGT), INTAKE THROTTLE SOLENOID VALVE (DSL), ECM (DSL), MASS AIR FLOW SENSOR (2.9L WGT), DIESEL BOX (DSL)
P/TRAIN 7.5 MAIN RELAY, BURGLAR HORN RELAY, PCM (GSL), TCM (DSL), GENERATOR (2.9L WGT)
FUEL PUMP 15 FUEL PUMP RELAY
ABS #1 40 ABS CONTROL MODULE, ESP CONTROL MODULE
ABS #2 20 ABS CONTROL MODULE, ESP CONTROL MODULE
FRT WIPER 30 FRONT WIPER ON RELAY
KEY SW #2 30 START RELAY, IGNITION SWITCH
FRT BLOWER 40 FRONT BLOWER RELAY
RR BLOWER 30 REAR BLOWER RELAY
IPM #1 50 INSTRUMENT PANEL MODULE
IPM #2 50 INSTRUMENT PANEL MODULE
IPM #3 50 INSTRUMENT PANEL MODULE
RAM #1 50 REAR AREA MODULE
RAM #2 50 REAR AREA MODULE
RAM #3 50 REAR AREA MODULE
IG2 7.5
FUEL HEATER 20 FUEL FILTER HEATER (DSL)

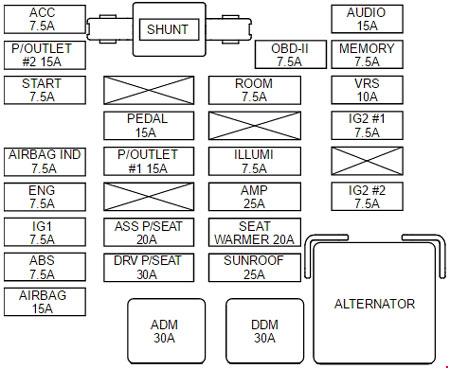

Instrument panel fuse panel

KIA Sedona VQ - fuse box diagram - instrument panel
KIA Sedona VQ – fuse box diagram – instrument panel
Fuse
A
Circuit Protected
ACC 7.5 POWER OUTSIDE MIRROR & MIRROR FOLDING SWITCH, AUDIO, DIGITAL CLOCK, MEDIA MODULE
P/OUTLET #2 15 CIGARETTE LIGHTER & POWER OUTLET
START 7.5 BURGLAR ALARM RELAY, TRANSAXLE RANGE SWITCH, ECM (DSL)
AIRBAG IND 7.5 INSTRUMENT CLUSTER
ENG 7.5 ATM LEVER SWITCH, STOP LAMP SWITCH (GSL), INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, TRANSAXLE RANGE SWITCH, PCM (GSL), VEHICLE SPEED SENSOR, ECM (DSL), TCM (DSL), BACK-UP LAMP SWITCH, FUEL FILTER WARNING SWITCH (DSL), CLUTCH SWITCH (2.7L), MASS AIR FLOW SENSOR (2.9L VGT)
IG1 7.5 TRIP COMPUTER, BACK WARNING BUZZER, RHEOSTAT, ESP SWITCH, INSTRUMENT CLUSTER, MULTIFUNCTION SWITCH, GENERATOR, AMB SWITCH
ABS 7.5 ABS CONTROL MODULE, ESP CONTROL MODULE, YAW RATE SENSOR, STEERING ANGLE SENSOR, MULTIPURPOSE CHECK CONNECTOR
AIRBAG 15 SRS CONTROL MODULE, PAB CUT OFF SWITCH
PEDAL 15 PEDAL ADJUST RELAY
P/OUTLET #1 15 CIGARETTE LIGHTER & POWER OUTLET
ASS P/SEAT 20 PASSENGER POWER SEAT MODULE
DRV P/SEAT 30 LIMIT SWITCH, DRIVER POWER SEAT MODULE
OBD-II 7.5 DATA LINK CONNECTOR, MULTIPURPOSE CHECK CONNECTOR
ROOM 7.5 VANITY LAMP LH(RH), MAP LAMP, A/C CONTROL MODULE, REAR ROOM LAMP SWITCH, OVER HEAD CONSOLE
VRS 10 VRS SWITCH, VRS MODULE
ILLUMI 7.5 INSTRUMENT PANEL MODULE
AMP 25 AMP
SEAT WARMER 20 SEAT WARMER RELAY
SUNROOF 25 SUNROOF MODULE
AUDIO 15 STEP LAMP LH(RH), AUDIO, MEDIA MODULE
MEMORY 7.5 A/C CONTROL MODULE, DIGITAL CLOCK, INSTRUMENT CLUSTER, TRIP COMPUTER, DOOR MODULE, FRONT AREA MODULE, DRIVER POWER SEAT MODULE, POWER TAIL GATE MODULE
IG2 #1 7.5 MULTIFUNCTION SWITCH, A/C CONTROL MODULE, ELECTRO CHROMIC MIRROR, RAIN SENSOR, RELAY BOX
IG2 #2 7.5 DOOR MODULE, REAR A/C CONTROL SWITCH, FRONT AREA MODULE, POWER TAIL GATE MODULE DRIVER POWER SEAT MODULE
DDM 30 DRIVER DOOR MODULE, SAFETY POWER WINDOW MOTOR
ADM 30 PASSENGER DOOR MODULE

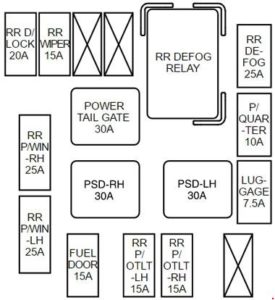

Luggage compartment fuse box

KIA Sedona VQ - fuse box diagram - luggage compartment
KIA Sedona VQ – fuse box diagram – luggage compartment
Fuse
A
Circuit Protected
PSD-LH 30 POWER SLIDING DOOR MODULE LH
PSD-RH 30 POWER SLIDING DOOR MODULE RH
RR DEFOG 25 RR DEFOG RELAY, REAR DEFOGGER
POWER TAIL GATE 30 POWER TAIL GATE MODULE
P/QUARTER 10 QUARTER GLASS OPEN RELAY LH, QUARTER GLASS CLOSE RELAY LH, QUARTER GLASS OPEN RELAY RH, QUARTER GLASS CLOSE RELAY RH, QUARTER GLASS MOTOR LH, QUARTER GLASS MOTOR RH
RR WIPER 15 REAR WIPER RELAY, REAR WIPER MOTOR
RR D/LOCK 20 S/DOOR LOCK RELAY, S/DOOR UNLOCK RELAY, SLIDING DOOR LOCK ACTUATOR, TAIL GATE LOCK ACTUATOR
RR P/OTLT-LH 15 REAR POWER OUTLET LH
RR P/OTLT-RH 15 REAR POWER OUTLET RH
FUEL DOOR 15 FUEL FILLER RELAY, FUEL FILLER ACTUATOR
RR P/WIN-LH 25 S/DOOR WINDOW RELAY (UP) LH, S/DOOR WINDOW RELAY (DN) LH, SLIDING DOOR POWER WINDOW MOTOR LH
RR P/WIN-RH 25 S/DOOR WINDOW RELAY (UP) RH, S/DOOR WINDOW RELAY (DN) RH, SLIDING DOOR POWER WINDOW MOTOR RH
LUGGAGE 7.5 LUGGAGE LAMP, POWER TAIL GATE ON/OFF SWITCH

Engine compartment fuse box (Diesel)

KIA Sedona VQ - fuse box diagram - engine compartment (diesel)
KIA Sedona VQ – fuse box diagram – engine compartment (diesel)

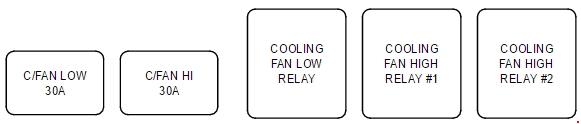

Cooling box (2.7 L)

KIA Sedona VQ - fuse box diagram - cooling box
KIA Sedona VQ – fuse box diagram – cooling box

Engine compartment fuse box (main fuse)

Fuse
A
Circuit Protected
ALT 150 Generator
C/FAN 60 Cooling fan

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
