KIA Quoris (from 2012) – fuse box diagram

KIA Quoris (from 2012) – fuse box diagram

Year of production: 2012, 2013, 2014, 2015, 2016, 2017

Also called:

  • Kia K900 (United States and Canada)

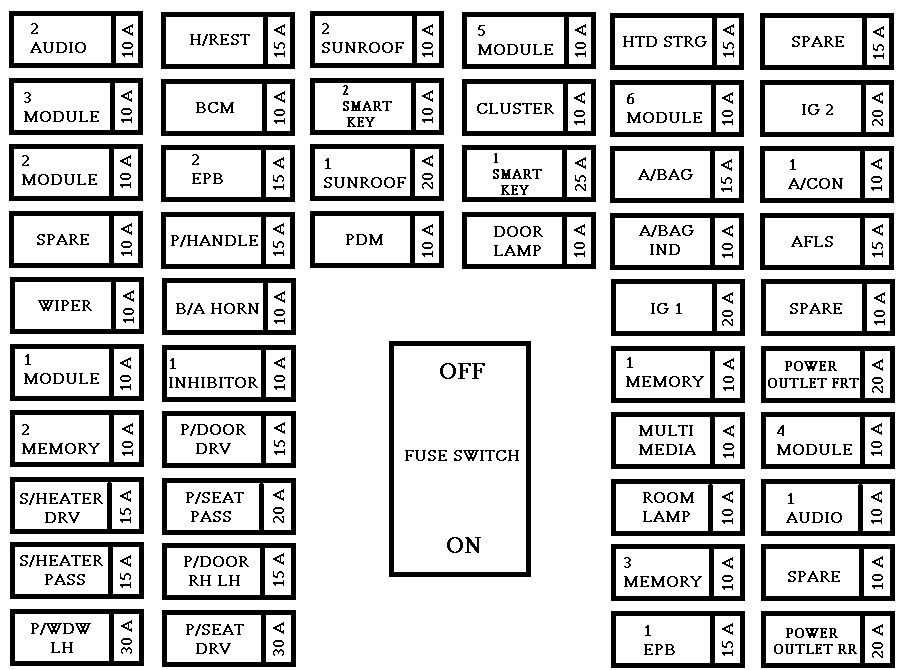

Instrument panel fuse panel

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

KIA Quoris – fuse box – instrument panel
KIA Quoris – fuse box – instrument panel
Fuse name Fuse rating [A] Circuit protected
AUDIO 2 10 A/V & Navigation Head Unit, TMU
MODULE 3 10 A/C Control Module, Electro Chromic Mirror, Rear Seat Console Switch, Driver Haptic Control Module, Rear CCS Control Module LH/RH, Driver/Passenger IMS Control Module, Driver Power Seat Module, Rear Seat Warmer Control Module LH/RH, Rear Smart Junction Box (IPS Control Module)
MODULE 2 10 Steering Tilt & Telescopic Module, LDWS Camera Module, Crash Pad Switch, Stop Lamp Switch, A/T Console Switch, Electric Parking Brake Switch, Console Switch, Smart Cruse Control Radar, Air Sus, TPMS, PAS
SPARE 10 Spare
WIPER 10 Auto Light & Rain Sensor
MODULE 1 10 BCM, Trunk Lid Main Switch, Low Panel Switch
MEMORY 2 10 External Buzzer, Driver Smart Connector, Passenger Smart Connector
DRV HEAT 15 Driver Haptic Control Module, Driver CCS Module
PASS HEAT 15 Passenger CCS Module
WINDOW LH 30 Rear Power Window Module LH, Rear Power Window Module LH
HEADREST 15 Active Headrest Sensor
BCM 10 BCM, Multifunction Switch, Driver/Passenger Power Seat Switch, Rear Door Module LH/RH
EPB 2 15 Electric Parking Brake Module
P/HANDLE 15 Steering Tilt & Telescopic Module
B/ALARM 10 BCM
INHIBITOR 1 10 W/O Electric ATM Shift Lever : Sport Mode Switch
With Electric ATM Shift Lever : Electric ATM Shift Lever
P/DOOR DRV 15 Driver Door Latch
PASS P/SEAT 20 W/O IMS : Passenger Seat Relay Box
With IMS : Passenger IMS Control Module
P/DOOR RR LH 15 Rear Door Latch LH
DRV P/SEAT 30 Driver Lumbar Support Valve, Driver Lumbar Support Switch, Driver Power Seat Module
S/ROOF 2 10 Sunroof Motor
SMART KEY 2 10 Metal Core Block (PCB #2) (P/N Relay), Smart Key Control Module
S/ROOF 1 20 Sunroof Motor
START 10 Start/Stop Button Switch
MODULE 5 10 Surround View Unit, Parking Guide Unit, Head-UP, Instrument Cluster, Driver Lumbar Support Valve, Rear Seat Console Switch, Rear Seat Warmer Control Module LH/RH, Rear Massage Control Module LH/RH, Rear Smart Junction Box (IPS Control Module)
CLUSTER 10 Instrument Cluster, Head-Up Display
SMART KEY 1 25 Smart Key Control Module
DOOR LAMP 10 Driver Door Module, Passenger Door Module
STR’G HTD 15 Clock Spring
MODULE 6 10 Smart Key Control Module, BCM
A/BAG 15 Driver Seat Belt Pretensioner, Passenger Seat Belt Pretensioner, SRS Control Module
A/BAG IND 10 Instrument Cluster
IGN 1 20 E/R Fuse & Relay Box LH (FUSE : F20, F21, F23, F25, F26, F27)
MEMORY 1 10 Passenger IMS Control Module, Driver/Passenger Door Module, Driver/Passenger Power Seat Switch, Rear Door Module LH/RH, Power Trunk Module, Instrument Cluster, BCM, Security Sensor, Analogue Clock, A/C Control Module, Head-Up Display
MULTI MEDIA 10 Keyboard, A/V Navigation Head Unit, Front Monitor, TMU
ROOM LAMP 10 Rear Seat Foot Lamp LH/RH, Trunk Room Lamp LH/RH, Driver/Passenger Foot Lamp, Room Lamp, Overhead Console Lamp, Front Vanity Lamp Switch LH/RH, Rear Vanity Lamp Switch LH/RH, Garnish Lamp LH/RH, Garnish Center Lamp, Glove Box Lamp
MEMORY 3 10 RF Receiver
EPB 1 15 Electric Parking Brake Module
SPARE 15 Spare
IGN 2 20 E/R Fuse & Relay Box LH (Fuse : F29, F30)
A/CON 1 10 A/C Control Module, Ionizer, Metal Core Block (PCB #2) (Blower Relay)
AFLS 15 Adaptive Front Lighting Module, HEAD LAMP LH/RH
SPARE 10 Spare
P/OUTLET FR 20 Front Cigarette Lighter
MODULE 4 10 Electric ATM Shift Lever, Analogue Clock, BCM, Surround View Unit, Overhead Console Lamp, Parking Guide Unit
AUDIO 1 10 A/V & Navigation Head Unit, Front/Rear Monitor Module, Keyboard, Smart Key Control Module, Rear Seat Audio Switch, AMP, TMU
SPARE 10 Spare
P/OUTLET RR 20 P/OUTLET RR, Front Power Outlet

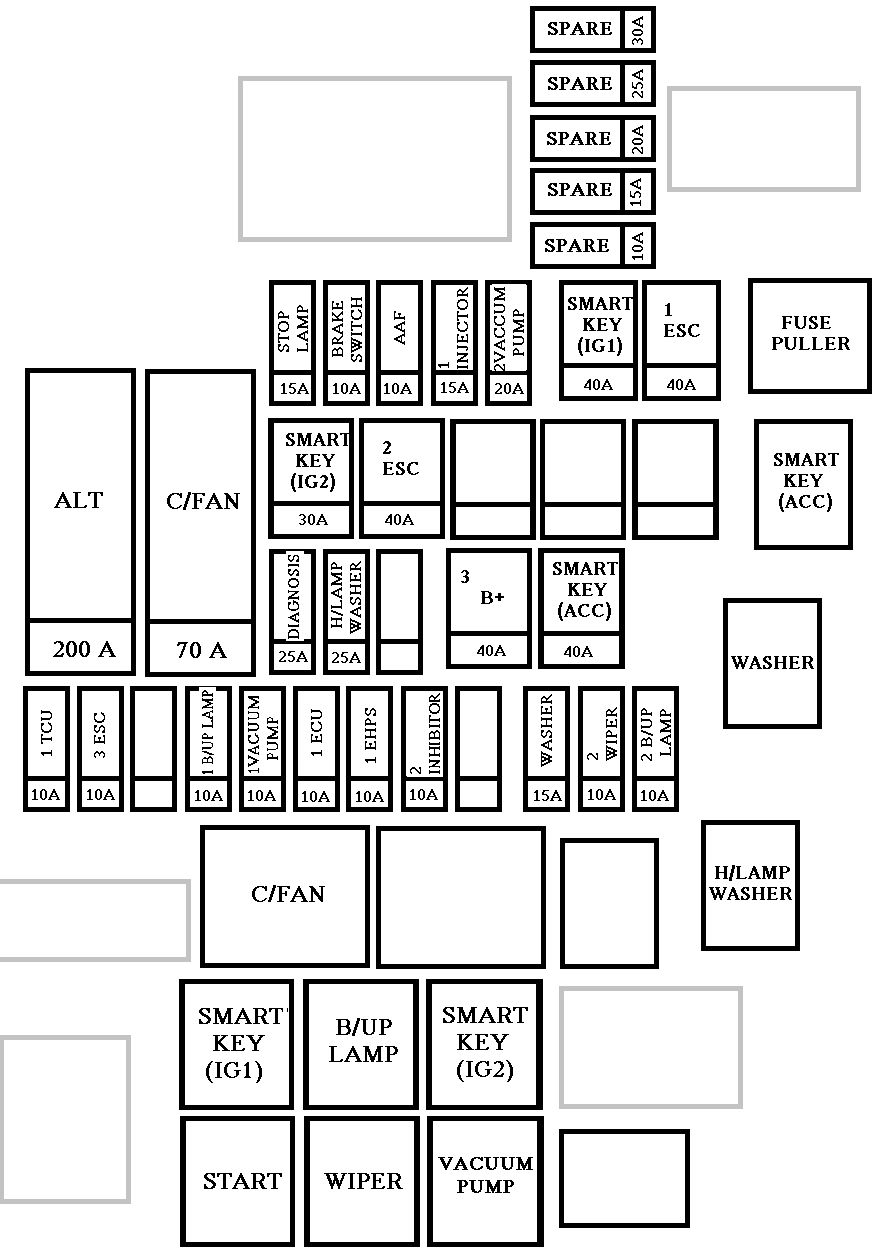

Engine compartment fuse panel (Driver’s side)

KIA Quoris - fuse box - engine compartment (driver's side)
KIA Quoris – fuse box – engine compartment (driver’s side)
Fuse name Fuse rating [A] Circuit protected
Stop Lamp 15 Stop Signal Electronic Module
Brake SW 10 Stop Lamp Switch, Smart Key Control Module
AAF 10 Not Used
Injector 1 15 Injector Drive Box
SMK (IGN1) 40 E/R Fuse & Relay Box LH (RLY.5)
ESC 1 40 ESC Control Module
ALT 200 E/R Fuse & Relay Box LH (Fuse : F9, F15, F16, F18, F19), Alternator
Cooling 70 E/R Fuse & Relay Box LH (RLY.6)
SMK (IGN2) 30 E/R Fuse & Relay Box LH (RLY.3)
ESC 2 40 ESC Control Module
Diagnosis 25 Multipurpose Check Connector
H/Lamp Washer 25 Not Used
Battery 3 40 Smart Junction Box (Fuse : F5, F6, F8, F9, F10)
SMK (ACC) 40 E/R Fuse & Relay Box LH (RLY.9)
TCU 1 10 ECM, Transmission Range Switch, Transmission Park Postilion Sensor & Switch
ESC 3 10 Steering Angle Sensor, ESC Control Module
B/UP Lamp 1 10 E/R Fuse & Relay Box LH (RLY.4)
Vaccum Pump 1 10 E/R Fuse & Relay Box LH (RLY.10), Vaccum Pump Switch
ECU 1 10 ECU
EHPS 1 10 EHPS Module
Inhibitor 2 10 A/T Console Switch, Electric ATM Shift Lever
Washer 15 E/R Fuse & Relay Box LH (RLY.8)
Wiper 2 10 E/R Fuse & Relay Box LH (RLY.1)
B/UP Lamp 2 10 Back View Camera & Back-Up Lamp, A/T Console Switch, Electro Chromic Mirror, A/V & Navigation Head
Unit
Vaccum Pump 2 20 E/R Fuse & Relay Box LH (RLY.10)

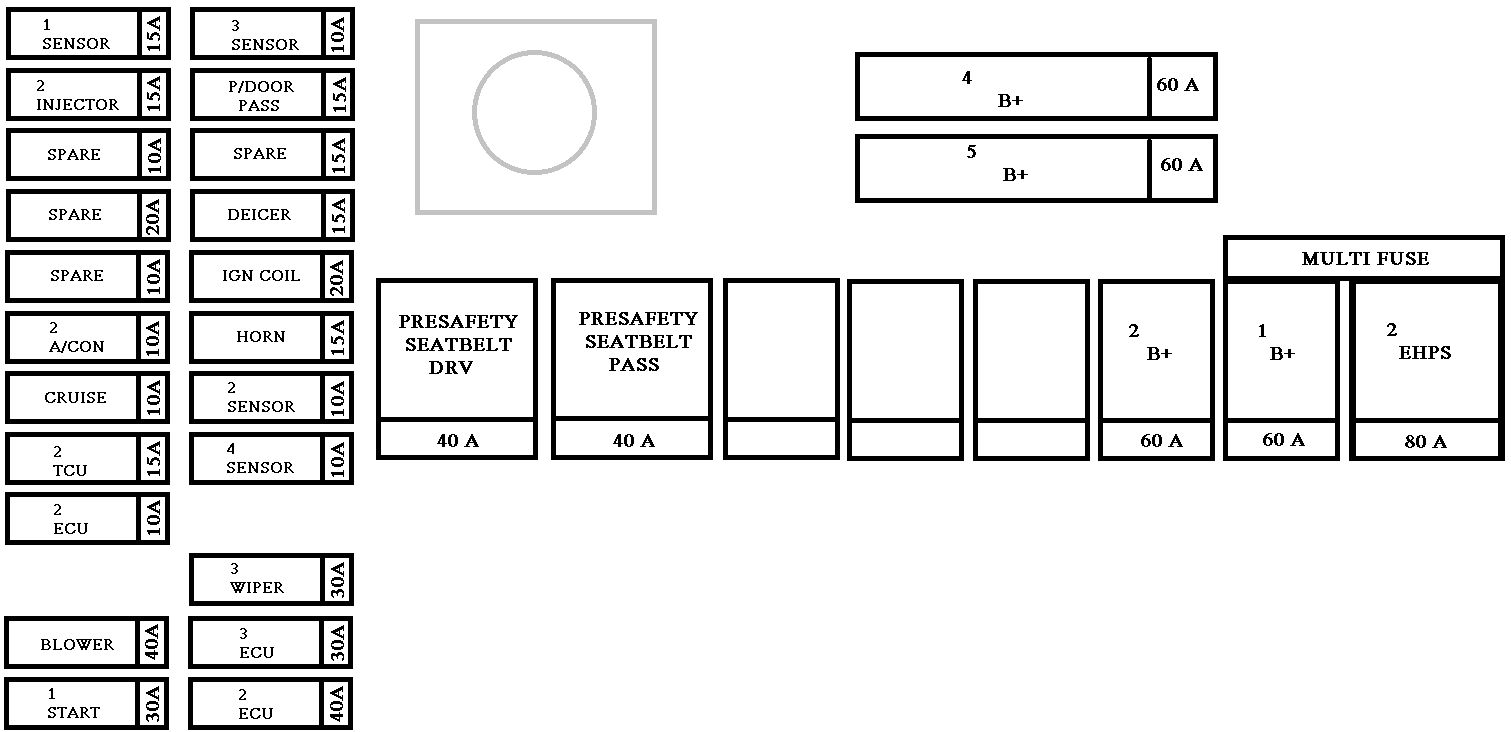

Engine compartment fuse panel (Passenger’s side)

KIA Quoris - fuse box - engine compartment - (passenger's side)
KIA Quoris – fuse box – engine compartment – (passenger’s side)
Fuse Fuse name Fuse rating [A] Circuit protected
METAL
CORE
BLOCK
(PCB #1)
Sensor 3 10 Rear Smart Junction Box (Fuel Pump Relay)
P/Door PASS 15 Passenger Door Latch
SPARE 15 Spare
Deicer 15 Metal Core Block (PCB #1) (Front Deicer Relay), Ignition Coil #1~8
Ignition Coil 20 Ignition Coil #1~6, Condenser #1, #2
Horn 15 Metal Core Block (PCB #1) (Horn Relay)
Sensor 2 10 Mass Air Flow Sensor, Oxygen Sensor #1~4, E/R Fuse & Relay Box LH (RLY.6)
Sensor 4 15 CMP Sensor #1~4
Wiper 3 30 Wiper Motor
ECU 3 30 Metal Core Block (PCB #1) (ECU Main Relay)
ECS 2 40 Metal Core Block (PCB #1) (Air ECS Relay)
METAL
CORE
BLOCK
(PCB #2)
Sensor 1 15 Purge Control Solenoid Valve, ECM, Variable Intake Solenoid Valve, Oil Control Valve #1~4
Injector 2 15 Injector #1~6, Injector #1~8
SPARE 10 Spare
SPARE 20 Spare
SPARE 10 Spare
A/CON 2 10 A/C Control Module
Cruise 10 Smart Cruise Control Radar
TCU 2 15 TCM
ECU 2 10 ECM
Blower 40 Metal Core Block(PCB) (Blower Relay)
Start 1 30 E/R Fuse Relay Box LH (RLY.2)
MULTI
FUSE
Presafety Seat
Belt DRV
40 Driver Seat Belt Pretensioner
Presafety Seat
Belt PASS
40 Passenger Seat Belt Pretensioner
Battery 2 60 Smart Junction Box (Fuse : F13~20, F23, F24, F27, F28, IPS5~8, Arisu-LT2)
Battery 1 60 Smart Junction Box (Fuse : F38, IPS1, 3, Arisu-LT1, Leak Current Autocut Device)
EHPS 2 80 EHPS Module
FUSE Battery 4 60 Metal Core Block (PCB #1) (Fuse : F2, F4, F6, F10, F11, F12)
Battery 5 60 Metal Core Block (PCB #2) (Fuse : F7, F11)

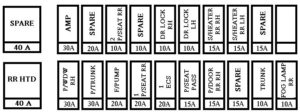

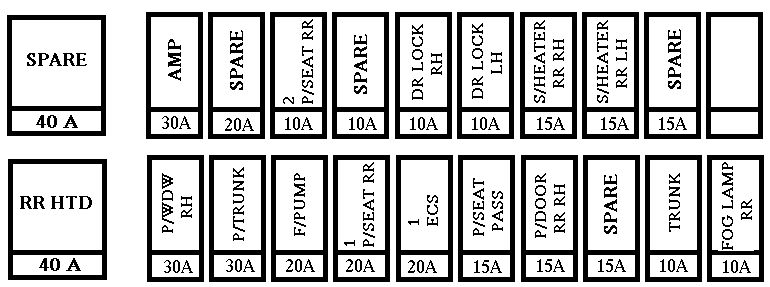

Trunk fuse panel

KIA Quoris - fuse box - engine trunk fuse panel
KIA Quoris – fuse box – engine trunk fuse panel
Fuse name Fuse rating [A] Circuit protected
Rear HTD 40 Rear Defogger Relay
P/WDW RH 30 Passenger Power Window Module, Rear Power Window Module RH
P/Trunk 30 Power Trunk Module
F/Pump 20 Fuel Pump Relay
P/Seat RR 1 20 Rear Seat Relay Box
ECS 1 20 ECS Unit
P/Seat PASS 15 Passenger IMS Control Module
P/Door RR RH 15 Rear Door Latch RH
Spare 15 Spare
Trunk 10 Trunk Lid Relay, Power Trunk Module Buzzer
Fog Lamp RR 10 Rear Fog Lamp Relay
Spare 40 Spare
AMP 30 AMP
Spare 20 Spare
P/Seat RR 2 10 Rear Seat Relay Box LH, Rear Seat Relay RH, Rear Seat Massage Control Module LH, Rear Seat Massage Control Module RH
Spare 10 Spare
DR Lock RH 10 Passenger Door Module, Rear Door Module RH
DR Lock LH 10 Driver Door Module, Rear Door Latch LH
S/Heater RR
RH
15 Rear Seat Warmer Control Module RH, Rear CCS Control Module RH
S/Heater RR
LH
15 Rear Seat Warmer Control Module LH, Rear CCS Control Module LH
Spare 15 Spare

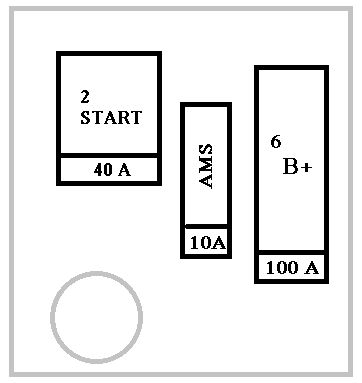

Battery box fuse panel

KIA Quoris - engine battery fuse panel
KIA Quoris – engine battery fuse panel
Fuse Name Fuse ranting [A] Circuit protected
Start 2 40 Metal Core Block (PCB #2) (Fuse : F8, F9, F12)
AMS 10 Battery Sensor
Battery 6 100 Rear Smart Junction Box (Fuse : F1, F2, F3, F4, F5, F6, F7, F8, F10, F11, F13, F15, F17, F18, F19, F20)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and marke
