Kia Optima (2000 – 2005)  – fuse box diagram

Kia Optima (2000 – 2005)  – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005

Central fusebox in passenger compartment

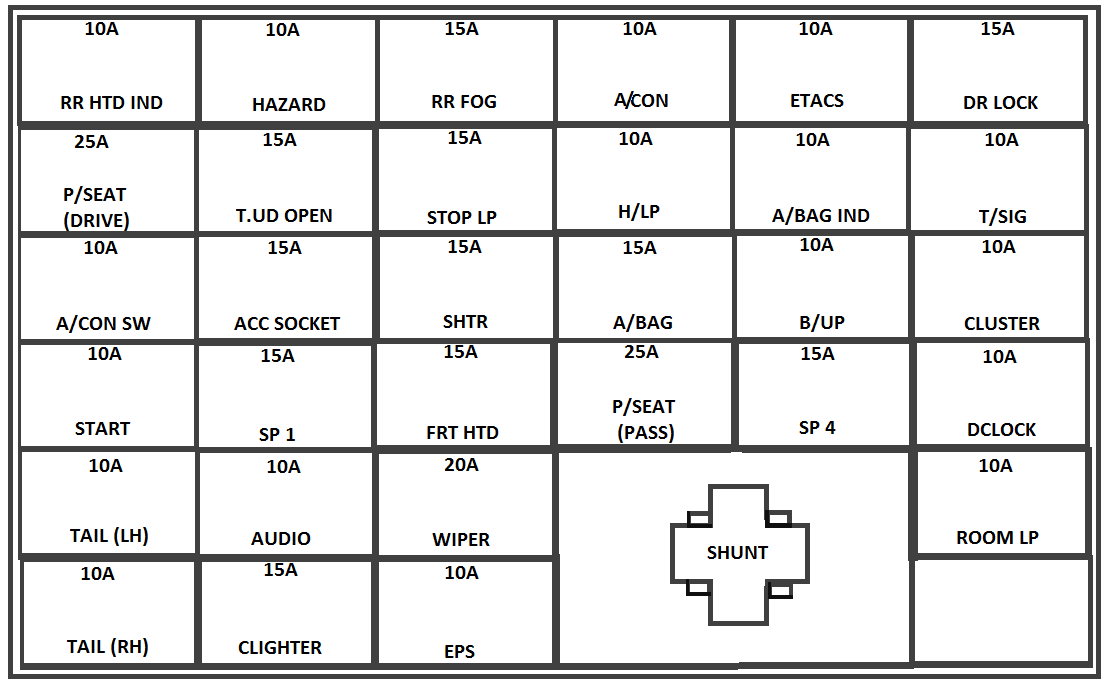

Kia Optima mk1 - fuse box - passeneger compartment
Kia Optima mk1 – fuse box – passeneger compartment
Description Fuse rating [A] Protected compartment
RR HTD IND 10 Rear window defroster, outside rear view mirror heater
HAZARD 10 Hazard ligths, turn signal lights
RR FOG 15 Rear fog light
A/CON 10 Air condition system
ETACS 10 ETACS, keyless entry system, door lock system
DR LOCK 15 Power door lock
P/SEAT (DRIVE) 25 Power seat
 T/LID OPEN 15 Remote trunk lid
STOP LP 10 Stop lights
H/LP 10 Head light
A/BAG IND 15 Air-bag
T/SIG 10 Turn signal lights
 A/CON SW 10 Air conditioning system
 ACC SOCKET 15 Power outlet
S/HTR 15 Seat heater
A/BAG 15 Air-bag
B/UP 10 Backup lights
CLUSTER 10 Cluster
START 10 Engine switch
FRT HTD 15 Windows defroster
P/SEAT (PASS) 25 Power seat
SP4 15 Spare fuse
D/CLOCK 10 Digital clock
TAIL (LH) 10 Position lights, license plate lights. tail lights
AUDIO 10 Audio
WIPER 20 Wiper
ROOM LP 10 Dome lights, front door edge warning lightes
TAIL (RH) 10 Position lights, license plate lights. tail lights
C/LIGHTER 15 Cigar lighter
EPS 10

Fuse box in engine compartment

Kia Optima mk1 - fuse box- engine compartment
Kia Optima mk1 – fuse box- engine compartment
Description Description Fuse rating [A] Protected compartment
COND FAN 20 Condenser fan
PWR WIND 40 Power window
ABS 2 20 ABS
IGN-SW-1 30 Ignition switch
ABS 1 40 ABS
IGN-SW-2 30 Ignition switch
RAD FAN MTR 30 Radiator fan motor
1 FUEL PUMP 20 Fuel pump
2 HD LP LO 15 Headlights (LO)
3 ABS 10 ABS
4 INJECTOR 10 Injector
5 A/C COMPR 10 Air-con compresor
6 ATM RLY 20 ATM Relay
7 ECU RLY 30 Engine control unit relay
8 IG COIL 20 Ignition coil
9 O2SNSR 15 Oxygen sensor
10 ECU 15 Engine control unit
11 HORN 10 Horn
12 HEAD LP HI 20 Headlights (HI)
13 HEAD LP WASH 20
14 DRL 15 DRL
15 FR FOG 15 Front fog lights
16 DIODE-1 Diode – 1
17 SPARE 30 Spare fuse
18 SPARE 20 Spare fuse
19 SPARE 15 Spare fuse
20 SPARE 10 Spare fuse
21 DIODE-2 Diode – 2
22 BLOWER 30 Blower
23 PWR FUSE-2 30 Power fuse 2
24 PWR AMP 20 Power amp
25 SUNROOF 15 Sunroof
26 TAIL LP 20 Tail lights
27 PWR FUSE-1 30 Power fuse – 1
28 ECU 10 ECU
29 RR HTD 30 Rear window defroster

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
