KIA Oprius FL (2007 – 2011) – fuse box diagram
Year of production: 2007, 2008, 2009, 2010, 2011
Also called:
- KIA Amanti
- KIA Iris

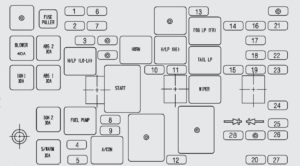

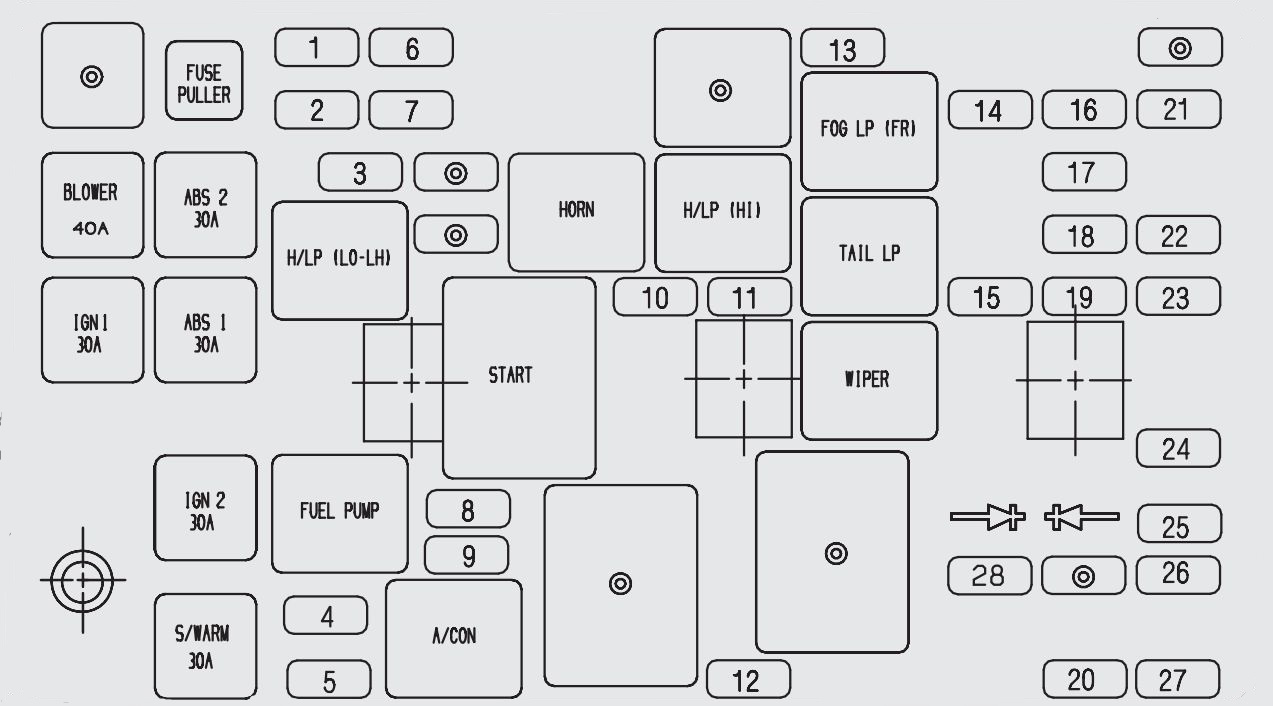

Engine compartment
| Description | Fuse rating | Protected compartment | |
| 1 | FUEL PUMP | 20 | Fuel pump |
| 2 | H/LP (LO-LH) | 15 | Headlight (low-left) |
| 3 | ABS | 10 | Anti-lock brake system |
| 4 | IGN COIL | 15 | Ignition coil |
| 5 | A/CON COMP | 10 | Air-conditioner compressor |
| 6 | ATM | 20 | Automatic transaxle control relay |
| 7 | MAIN | 20 | Engine control unit relay |
| 8 | O2 SNSR | 15 | Oxygen sensor |
| 9 | EGR | 15 | Power train control system sensor |
| 10 | HORN | 15 | Horn |
| 11 | TAIL | 20 | Tail light |
| 12 | SUNROOF | 20 | Sun roof |
| 13 | P/SEAT (RH) | 20 | Power seat (right) |
| 14 | FOG LP (FR) | 15 | Fog light (front) |
| 15 | H/LP (HI) | 15 | Headlight (high) |
| 16 | SPARE | 30 | Spare fuse |
| 17 | SPARE | 20 | Spare fuse |
| 18 | SPARE | 15 | Spare fuse |
| 19 | SPARE | 10 | Spare fuse |
| 20 | P/SEAT (LH) | 30 | Power seat (left) |
| 21 | AMP | 20 | Radio amplifier |
| 22 | DRL* | 15 | Daytime running light |
| 23 | H/LP (LO-RH) | 15 | Headlight (low beam-right) |
| 24 | I/P B+ | 30 | All electric system |
| 25 | ECU | 10 | Engine control unit |
| 26 | INJECTOR | 10 | Injector |
| 27 | ECS* | 15 | Electronic control suspension |
| BLOWER | 40 | Blower motor | |
| IGN 1 | 30 | Ignition switch | |
| ABS 2 | 30 | Anti-lock brake system | |
| ABS 1 | 30 | Anti-lock brake system | |
| IGN 2 | 30 | Ignition switch | |
| S/WARM | 30 | Seat warmer | |
| H/LP (LO-LH) | — | Headlight relay (low beam-left) | |
| FUEL PUMP | — | Fuel pump relay | |
| HORN | — | Horn relay | |
| START | — | Start motor relay | |
| A/CON | — | Air conditioner relay | |
| H/LP (HI) | — | Headlight relay (high beam) | |
| FOG LP (FR) | — | Fog light relay (front) | |
| TAIL LP | — | Tailing relay | |
| WIPER | — | Wiper relay | |
| BATT | 60 | Alternator, Battery | |
| ALT | 150 | Alternator | |
| COOLING | 60 | Cooling fan | |

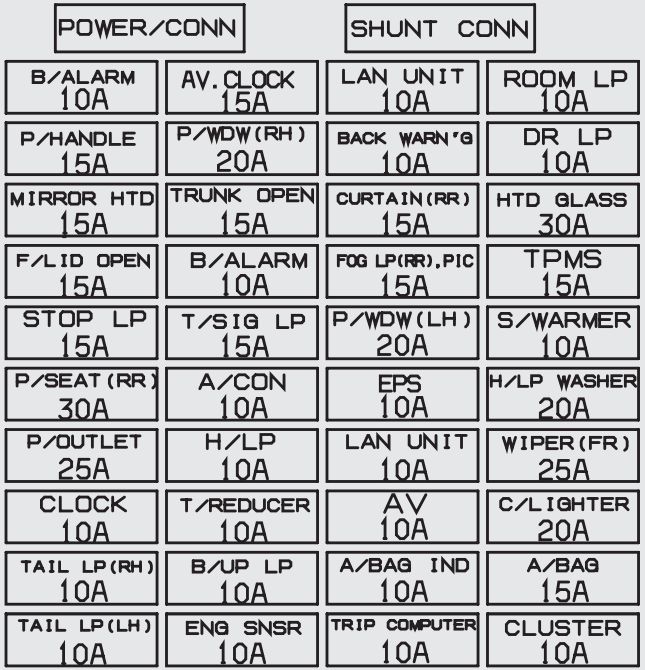

Driver -side knee bolster
| Description | Fuse rating | Protected component |
| B/ALARM | 10 | Burglar alarm |
| A/BAG | 15 | Air bag |
| C/LIGHTER | 20 | Cigar lighter |
| S/WARMER | 10 | Seat warmer |
| P/WDW (RH) | 20 | Power window (right) |
| P/HANDLE | 15 | Power steering wheel |
| T/SIG LP | 15 | Turn signal light |
| HTD GLASS | 30 | Defroster |
| TRUNK OPEN | 15 | Trunk lid opener |
| CLUSTER | 10 | Cluster |
| A/BAG IND | 10 | Air bag indicator |
| P/OUTLET | 25 | Electrical power socket |
| LAN UNIT | 10 | Lan unit |
| CURTAIN (RR) | 15 | Electric curtain (rear) |
| FOG LP (RR), PIC | 15 | Fog light (rear), Personal identification card |
| F/LID OPEN | 15 | Fuel filler lid opener |
| P/SEAT (RR) | 30 | Power seat (rear) |
| B/ALARM | 10 | Burglar alarm |
| STOP LP | 15 | Stop light |
| TRIP COMPUTER | 10 | Trip computer |
| B/UP LP | 10 | Back-up light |
| AV | 10 | Audio |
| H/LP | 10 | Headlight |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
