KIA Avella (1994 – 1997) – fuse box diagram

KIA Avella (1994 – 1997) – fuse box diagram

Year of production: 1994, 1995, 1996, 1997

Instrument panel fuse panel

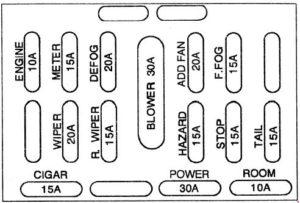

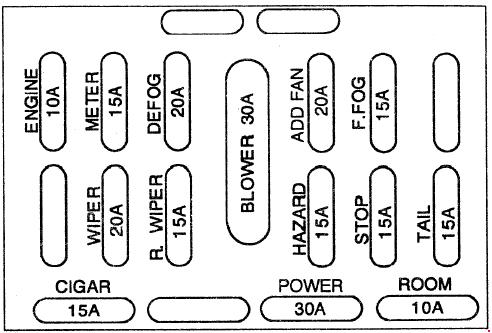

KIA Avella - fuse box diagram - instrument panel
KIA Avella – fuse box diagram – instrument panel
Fuse
A
Protected Component
ACC 15 Cigar lighter, Stereo
ENGINE 10 Cooling fan relay, Main relay
METER 15 Meter warning lamp (Rear defroster, Engine, Charge, oil pressure), Rear defroster relay, TWS unit, Back lamp, Flasher unit, Meter set (Fuel, Tacho, Turn indicator), Turn signal lamp
Rr. DEFROSTER 20 Rear defroster
REAR WIPER 15 Rear wiper and washer, Blower motor unit
WIPER 20 Front wiper and washer, A/C switch, A/C relay, ADD fan relay
BLOWER 30 Blower motor
ROOM 10 TWS unit, Powertrain control module, Room lamp, Stereo, Back-up
HAZARD 15 Flasher and hazard lamp
STOP 15 Cargo lamp, Horn relay, Horn, Stop lamp
TAIL 15 Turn signal lamp, Front side marker lamp, Illumination, License lamp, Tail lamp, Front park lamp

Engine compartment fuse box

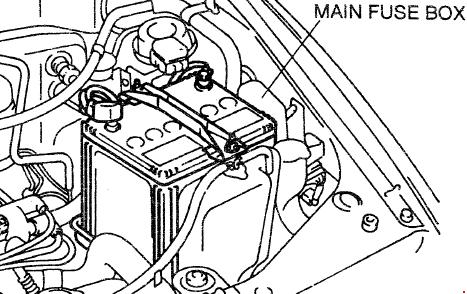

KIA Avella - fuse box diagram - engine compartment
KIA Avella – fuse box diagram – engine compartment
Fuse
A
Protected Component
EGI INJ. 30 EGI system
HEAD 30 Headlamp
C.FAN 30 Cooling fan motor,  ADD fan motor, Magnetic clutch
MAIN 80 Hazard lamp, Cargo lamp, Horn, Stop lamp, Powertrain control module, TNS relay, Illumination (Panel, A/C switch, A/T indicator, Rear defroster switch), License lamp, Tail lamp, Front side marker lamp, Cigar lighter, Stereo, Cooling fan relay, Main relay, Ignition coil, Rear defroster relay, Meter warning lamp (Rear defroster, Engine, Fuel, Tacho, Temp, Brake, Charge, Oil pressure), Back lamp, Flasher uni, Turn signal lamp, Rear defroster, Rear wiper and washer, Blower motor relay, Front wiper and washer, TWS unit, Interior lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
