Jeep Renegade (2014 – 2015) – fuse box diagram

Jeep Renegade (2014 – 2015) – fuse box diagram

Year of production: 2014, 2015

Engine compartment fuse box

The engine compartment fuse panel is located on the left side of the engine compartment.

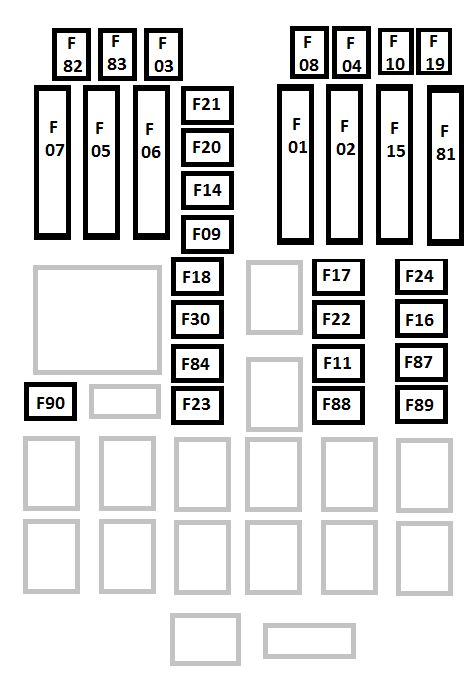

Jeep Renegade - fuse box - engine compartment
Jeep Renegade – fuse box – engine compartment
Cavity Maxi fuse Cartridge fuse Micro fuse Description
F01 70 Module Body Computer
F02 70 Module Body Computer, Rear Distribution Units
F03 20 Controller Power Supply Body Computer
F04 30 Brake Control Electronics Module
F05 70 Electric Power-Assisted Steering
F06 20 Engine Cooling fan
F07 40 – 1.4
Without A/C
Engine Cooling fan
50 – 1.4
With A/C And All 2.4
Models
F08 30 Automatic Transmission, GSM
F09 5 Control Module Engine
F10 15 Horn
F11 10 – 1.4 Engines Supply Secondary Loads
25 – 2.4
Engines
F14 7,5 Heater “Blow By”
F15 40 Brake Control Module Pump
F16 5 Engine Control Module Power, Automatic Transmission
F17 10 –  1.4 Engines Supply Primary Loads
15 – 2.4 Engines
F18 20 12V Rear Cargo Outlet Ignition Powered
F19 7,5 Air Conditioner Compressor
F20 5 Electronic Power Four-Wheel
Drive
F21 15 Fuel Pump
F22 20 Power Control Module Engine
F23 30 Heated Windshield – If Equipped
F24 15 Electronic Unit Supply Automatic Transmission
F30 20 Customer
Installed)
12V Rear Cargo Outlet Constant
Battery Powered
F83 40 Air Conditioning Fan
F84 30 Power Supply All Wheel
Drive
F87 5 Shift Lever Automatic Transmission
F88 7,5 Heated Outside Mirrors
F89 30 Heated Rear Window
F30 5 IBS Sensor (Battery State Of Charge

Dashboard fuse box (Body Computer Fuse Center)

The controller is located at the left side of the steering column at the bottom of the instrument panel.

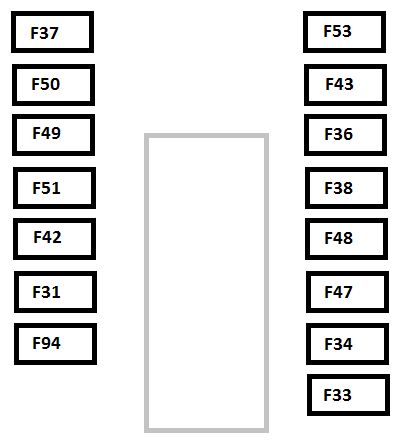

Jeep Renegade - fuse box - dashboard
Jeep Renegade – fuse box – dashboard
Cavity Mini fuse Description
F31 7,5 Flashes/Electrical Movement Front Seats/Fan Air Conditioning
F33 20 Power Window Front (Driver Side)
F34 20 Power Window Front (Passenger Side)
F36 15 Supply Uconnect® System, Air Conditioning, Alarm, Power Folding Outside Mirrors, USB Port
F37 10 System Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC
F38 20 Central Locking
F42 7,5 Power Under Lock and Key
F43 20 Bi-directional Pump Washer
F47 20 Power Rear Window (Driver Side)
F48 20 Power Rear Window (Passenger Side)
F49 7,5 Supply ParkSense, Spot Lights Front Dome, Mirror, Electric Motor Retractable Roof, Heated Front Seats, Stabilizer Battery, ESC System, ESL
F50 7,5 Supply Air Bag
F51 7,5 Alarm Power, Front Courtesy Light, Air Conditioning Compressor, Brake Pedal Switch (NC), Plaque Automatic Transmission, Compass, Rear Camera, Leveling Headlights, Air Conditioning
F53 7,5 Supply IPC/Starter Device/System Keyless Enter-N-Go
F94 15 Power Socket

Rear Cargo Fuse/Relay Distribution Unit

The configuration of the luggage compartment varies in accordance with the equipment on the vehicle

Fuse box version A

Jeep Renegade - fuse box - boot compartment - version A
Jeep Renegade – fuse box – boot compartment – version A
Cavity Mini fuse Description
F1 30 Power Inverter
F2 20 HIFI Audio System
F3 20 MY SKY
F4 7,5 Lumbar Adjustment Front Seat (Driver Side)
F5 30 Power Seat (Driver Side)
F6 7,5 Power Seat (Driver Side And Passenger Side)
F7 30 Lumbar Adjustment Front Seats (Driver Side And Passenger Side)
F8 20 Heating Front Seats
The fuse box also has a 20 A protective fuse for the sun visor of the retractable roof.

Fuse box version B

Jeep Renegade - fuse box - boot compartment - version B
Jeep Renegade – fuse box – boot compartment – version B
Cavity Mini fuse description
F1 10 Controller Exterior Lighting On
Trailer
F5 15 Controller Exterior Lighting Lights (Drivers Side)
F6 15 Controller Exterior Lighting Lights (Passenger Side)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
