Peugeot 206 – from DAM 9062, multiplexed

Peugeot 206 – from DAM 9062, multiplexed

Year of production:

Fuse box (BSI) near teering column

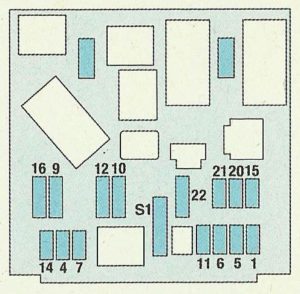

Peugeot 206 - fuse box BSI
Peugeot 206 – fuse box BSI
Fuse Ampere ratimg [A] Circuit protected
F1 15 Heated seat
F4 20 Light for: Multifunction screen, navigation, boot
F5 15 Automatic transmission diagnostics
F6 10 Coolant level, automatic transmission
F7 15 Driving school ECU, alarm ECU
F9 30 Rear electric window
F10 40 Rear screen and mirrors demisting
F11 15 Rear wiper
F12 30 Electric front windows, sun roof
F14 10 Engine wiring housing, COM 2000
F15 15 Instruments, multifunction screen, climate control, radio
F16 30 Openings, locking, deadlocking control.
F20 10 Right brake light
F21 15 Left brake light, additional brake light
F22 30 Front courtesy light, front map reading light, lighter
F$1` Shunt



Fuse box (BM34) under cover

Fuse Ampere ratimg [A] Circuit protected
F1 10 Reversing lamps, injection double relay, engine oil temp, fluid level, AC compressor
F2 15 Fuel pump, canister solenoid valve
F3 10 ABS ECU
F4 10 Engine ECU and automatic transmission
F5
F6
F7 20 Headlamp wash
F8 20 Direct injection ECU, injection ECU command relay, injection ECU
F9 15 Left dipped beam
F10 15 Right dipped beam
F11 10 Left high beam
F12 10 Right high beam
F13 15 Horn
F14 10 Front and rear screen wash pump.
F15 30 Ignition coil, screen wiper, O² sensor, oil pressure, injection
F16 30 Air pump relay
F17 30 Front wipers low and high speed
F18 30 AC blower motor, starter

Maxi fuse BM34

Peugeot 206 - fuse box BSI
Peugeot 206 – fuse box BSI
Fuse Ampere rating [A] Circuit protected
F1 20 Fan
F2 60 ABS
F3 30 ABS
F4 70 Feed to BSI
F5 70 Feed to BSI
F6
F7 30 Anty theft contact power supply
F8

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
