Jeep Cherokee (2016) – fuse box diagram

Jeep Cherokee (2016) – fuse box diagram

Year of production: 2016

Interior fusbox

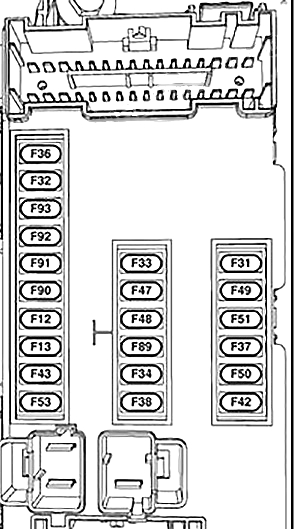

Jeep Cherokee - fuse box diagram - interior
Jeep Cherokee – fuse box diagram – interior
Cavity Blade Fuse Description
F13 15 Amp Blue Low Beam Left
F32 10 Amp Red Interior Lighting
F36 10 Amp Red Intrusion Module/Siren – If Equipped
F38 20 Amp Yellow Deadbolt All Unlock
F43 20 Amp Yellow Washer Pump Front
F48 25 Amp Clear Fog Lamp Rear Left/Right – If Equipped
F49 7.5 Amp Brown Lumbar Support
F50 7.5 Amp Brown Wireless Charging Pad – If Equipped
F51 10 Amp Red Driver Window Switch/Power Mirrors – If Equipped
F53 7.5 Amp Brown UCI Port (USB & AUX)
F89 10 Amp Red Door Locks – Driver Unlock
F91 7.5 Amp Brown Left Front Fog Lamp (Low And High Line)
F92 7.5 Amp Brown Right Front Fog Lamp (High Line)
F93 10 Amp Red Low Beam Right



Engine compartment fuse box diagram

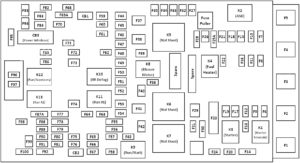

Jeep Cherokee - fuse box diagram - engine compartment

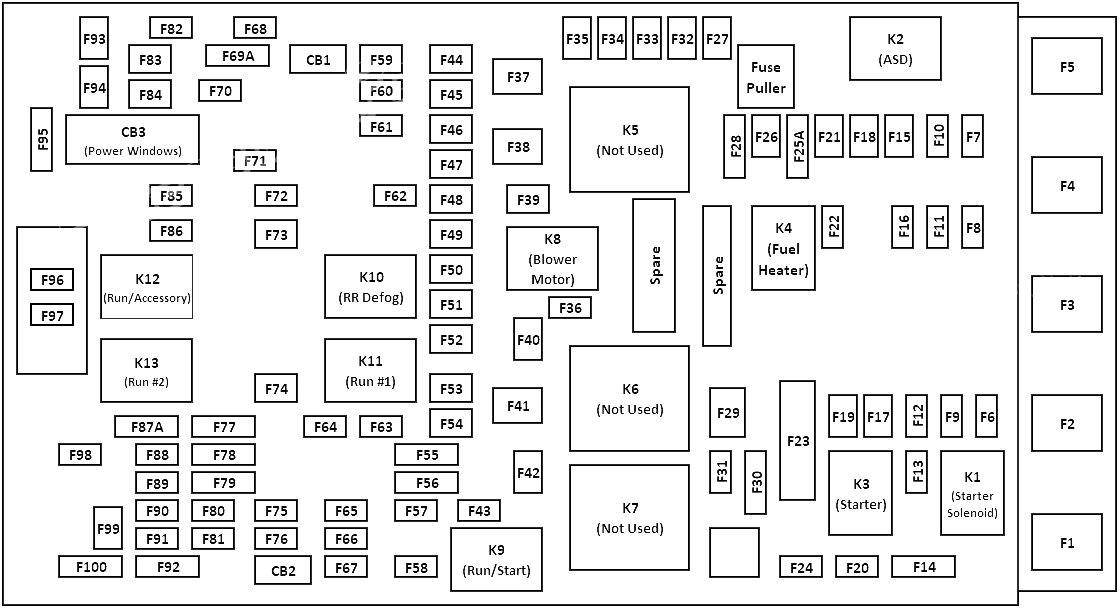

Jeep Cherokee – fuse box diagram – engine compartment
Cavity Blade Fuse Cartridge Fuse Description
F06 Not Used
F07 15 Amp Blue Powertrain Control Module – PCM (Diesel Only)
F08 25 Amp Clear Engine Control Module (ECM)/Fuel Injection
F09 Not Used
F10 20 Amp Yellow Power Transfer Unit (PTU) – If Equipped
F11 Not Used
F12 20 Amp Yellow Brake Vacuum Pump – If Equipped
F13 10 Amp Red Engine Control Module (ECM)
F14 10 Amp Red Drivetrain Control Module (DTCM) / Power Take-Off Unit (PTU) / Brake System Module (BSM) – If Equipped/Brake Pedal Switch/Back Up Switch (Diesel Only)
F15 Not Used
F16 20 Amp Yellow Ign Coil (Gas) / Engine Sensor (Diesel)
F17 Not Used
F18 Not Used
F19 40 Amp Green Starter Solenoid
F20 10 Amp Red A/C Compressor Clutch
F21 Not Used
F22 5 Amp Tan Radiator Fan
F23 70 Amp Tan Body Controller Module (BCM) – Feed 2
F23 50 Amp Red Voltage Stability Module (VSM) Feed #2 – If Equipped with Stop/Start Engine Option
F24 20 Amp Yellow Rear Wiper – If Equipped with Stop/Start Engine Option
F25B 20 Amp Yellow Front Washer – If Equipped with Stop/Start Engine Option
F26 30 Amp Pink Fuel Heater – Diesel Only
F27 Not Used
F28 15 Amp Blue Transmission Control Module (TCM)
F29 Not Used
F30 10 Amp Red Engine Control Module (ECM)/(EPS)/(PCM)
F31 Not Used
F32 Not Used
F33 Not Used
F34 Not Used
F35 Not Used
F36 Not Used
F37 Not Used
F38 60 Amp Yellow Glow Plugs (Diesel Only) – If Equipped
F39 40 Amp Green HVAC Blower Motor
F40 20 Amp Blue Trailer Tow Park Light – If Equipped
F40 30 Amp Pink Headlamp Washer Pump – If Equipped
F41 60 Amp Yellow Body Controller Module (BCM) – Feed 1
F41 50 Amp Red Voltage Stability Module – Feed 1 – If Equipped with Stop/ Start Engine Option
F42 30 Amp Pink Trailer Tow Electric Brake Module – If Equipped
F43 20 Amp Yellow Fuel Pump Motor
F44 30 Amp Pink Trailer Tow / 7-Way Connector – If Equipped
F45 30 Amp Pink Passenger Door Module (PDM) – If Equipped
F46 25 Amp Clear Sunroof – If Equipped
F48 30 Amp Pink Driver E)oor Module – If Equipped
F49 30 Amp Pink Power Inverter (115V A/C) – If Equipped
F50 30 Amp Pink Power Liftgate – If Equipped
F51 Not Used
F52 30 Amp Pink Front Wipers – If Equipped with Stop/Start Engine Option
F53 30 Amp Pink Brake System Module & Valves
F54 30 Amp Pink Body Control Module (BCM) Feed 3
F55 10 Amp Red Blind Spot Sensors / Compass / Rearview Camera / Trunk Lamp With Flashlamp Charger – If Equipped
F56 15 Amp Blue Ignition Node Module (IGNM)/KIN/RF Hub/Electric Steering Column Lock (ESL)
F57 20 Amp Yellow Trailer Tow Lights Left – If Equipped
F58 10 Amp Red Occupant Classification Module/VSM/ESC
F59 30 Amp Pink Drivetrain Control Module (DTCM) If Equipped
F60 20 Amp Yellow Power Outlet – Center Console
F61 20 Amp Yellow Trailer Tow Lights Right – If Equipped
F62 20 Amp Yellow Windshield de-icer – If Equipped
F63 20 Amp Yellow Front Heated/Vented Seats – If Equipped
F64 20 Amp Yellow Heated Steering Wheel – If Equipped
F65 10 Amp Red In Vehicle Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) – If Equipped with Stop/Start option
F66 15 Amp Blue HVAC (ECC) / Instrument Panel Cluster (IPC)
F67 10 Amp Red In Vehicle Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) – If Not Equipped with Stop/Start Option
F68 Not Used
F69 10 Amp Red Power Transfer Unit Switch (TSBM) / Active Grill Shutter (AGS) – If Equipped with Gas Engine
69A 10 Amp Red Power Transfer Unit Switch (TSBM) – If Equipped with Diesel Engine
F70 5 Amp Tan Intelligent Battery Sensor If Equipped with Stop/Start Engine Option
F71 20 Amp Yellow HID Headlamp Right if Equipped with Stop/Start Engine Option
F72 10 Amp Red Heated Mirrors – If Equipped
F73 20 Amp Blue Trailer Tow Back Up – If Equipped
F74 30 Amp Pink Rear Defroster
F75 20 Amp Yellow Cigar Lighter – If Equipped
F76 20 Amp Yellow Rear Differential Module (RDM) – If Equipped
F77 10 Amp Red Fuel Door Release/Brake Pedal Switch
F78 10 Amp Red Diagnostic Port / Digital TV (Japan Only)
F79 10 Amp Red Integrated Center Stack (ICS) / HVAC / Aux Switch Bank Module (ASBM) / Instrument Panel Cluster (IPC)
F80 20 Amp Yellow Radio / CD – If Equipped
F81 Not Used
F82 Not Used
F83 20 Amp Blue Engine Controller Module (Gas)
F84 30 Amp Pink Electric Park Brake (EPB) – Left
F85 Not Used
F86 20 Amp Yellow Horns – If Equipped With Stop/Start Engine Option
F87A 20 Amp Yellow HID Headlamp Left – If Equipped with Stop/Start Engine Option
F88 15 Amp Blue Collision Mitigation Module (CMM) / Electrochromatic Mirror / Smart Camera Module – If Equipped
F89 10 Amp Red Headlamp Leveling – If Equipped
F90 Not Used
F91 20 Amp Yellow Power Outlet Rear – If Equipped – Customer Selectable
F92 Not Used
F93 40 Amp Green Brake System Module (BSM) – Pump Motor
F94 30 Amp Pink Electric Park Brake (EPB) – Right
F95 10 Amp Red Electrochromatic Mirror / Rain Sensor / Sunroof – If Equipped / Passenger Window Switch / Power Outlet Console / Digital TV (Japan Only)
F96 10 Amp Red Occupant Restraint Controller (ORC) / (Airbag)
F97 10 Amp Red Occupant Restraint Controller (ORC) / (Airbag)
F98 25 Amp Clear Audio Amplifier – If Equipped
F99 Not Used
F100 Not Used
CB1 Power Seat (Driver)
CB2 Power Seat (Pass)
CB3 Power Window

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
