Isuzu Pickup (1994 – 1995) – fuse box diagram

Isuzu Pickup (1994 – 1995) – fuse box diagram

Year of production: 1994, 1995

Fuse box diagram

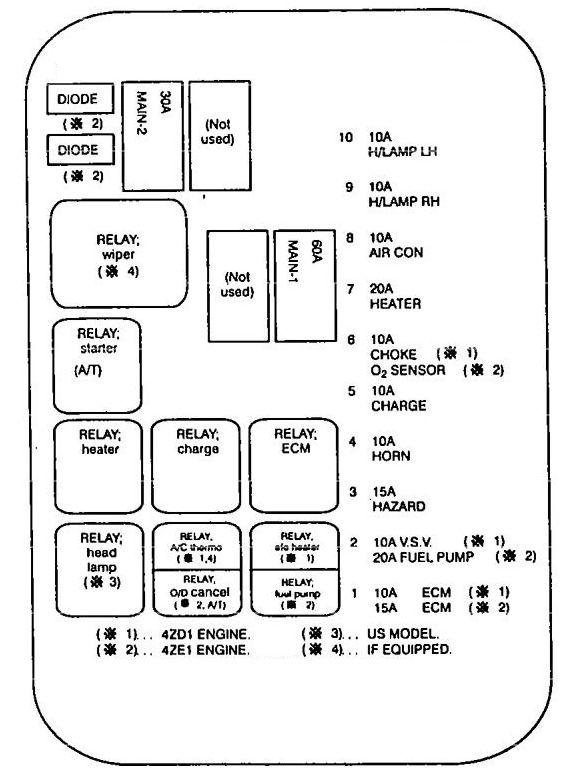

Isuzu Pickup – fuse box diagram
Isuzu Pickup – fuse box diagram



Isuzu Pickup - fuse box diagram
Isuzu Pickup – fuse box diagram

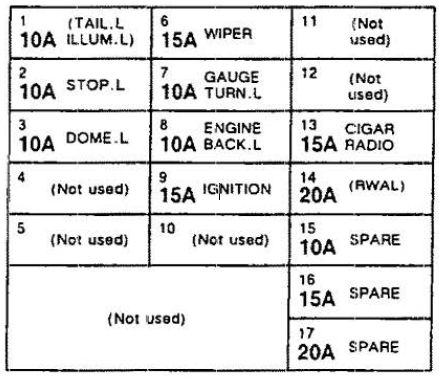

Number Function A
1 Ex1enor lights: front park. rear side marker. park. and license lights; electronic engine control; dash and console lights 10
2 Brake lights 10
3 Dome and step lights 10
4
5
6 Wiper/washer 15
7 Indicators; gauges; turn and hazard lights 10
8 Charging system: back up lights; electronic engine control 10
9 Ignition system 15
10
11
12
13 Cigarette lighter: sound system 15
14 Rear wheel antilock brakes 20
15 Spare 10
16 Spare 15
17 Spare 20


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
