Isuzu Hombre (1998 – 2000) – fuse box diagram
Year of production: 1998, 1999, 2000

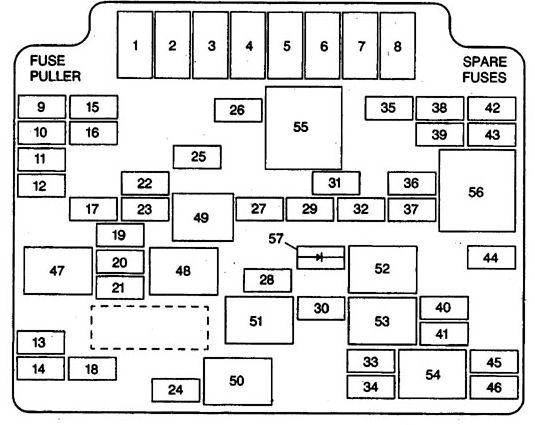

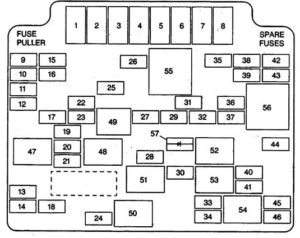

Fuse box diagram
| Fuse/Circuit Breaker | Rating | Function |
| MAXI FUSES | ||
| INT BAT #1 | 50 | HDLP SW Fuse, MIRILKS Fuse, AUX PWR Fuse, ROO BATT Fuse, CIGAR LTR fuse, CTSY LP fuse, PWR LKS fuse |
| ABS #2 | 60 | Electronic Brake Control Module Assembly |
| Not Used #3 | — | — |
| Not Used #4 | — | — |
| IGN B #5 | 50 | Ignition Switch |
| RAP #6 | 40 | Retained Accessory Powor Relay |
| IGN A #7 | 40 | Staner Relay, Ignition Switch |
| STUD #8 | 30 | |
| MINI FUSES | ||
| Not Used #9 | — | — |
| Not Used #10 | — | — |
| Not Used #11 | — | — |
| VEH B/U # 12 | 15 | Backup Lamp LH, Backup Lamp RH |
| RT TURN #13 | 10 | Tum Signal Assembly, RH Front |
| LT TURN #14 | 10 | Turn Signal Assembly, LH Front |
| LT TRN #15 | 10 | Turn Lamp Assembly. LH Rear |
| RT TRN #16 | 10 | Tail Lamp Assembly, RH Rear |
| RR PRK #17 | 10 | License Lamp. RH, Marker Lamp Assembly, RH. Tail Lamp Assembly. RH |
| FR PRK #18 | 10 | Turn Signal Lamp Assembly, RH. Tail Lamp Assembly. RH |
| TRL PRK #19 | 10 | Trail Lamp, Trailer |
| LT HDLP #20 | 10 | Headlamp, Low Beam. LH, Daytime Running Lamp Relay |
| RT HDLP #21 | 10 | Headlamp, Low Beam, RH, Headlamp High Beam. RH |
| ENG I #22 | 10 | Evaporative Emission Canister Purge Solenoid. Evaporative Emission Canister Vent Solenoid. Mass Air Flow Sensor (4.3L). Camshaft Position Sensor (4.3L) |
| ECM B #23 | 20 | Fuel Pump Relay, Powenrain Control Module (2.2L), Vehicle Control Module (4.JL). Fuel Pump and Engine Oil Pressure Gauge Sensor |
| HORN #24 | 15 | Horn, LH; Horn, RH |
| ECM I #25 | 15 | Electronic Ignition Control Module, Powertrain Control Module/Vehicle Control Module, Cran.ksbafl Position Sensor. Fuel Injectors 1·6, Ignition Coil |
| BTSI #26 | 10 | Stop Lamp Switch Assembly, Transfer Case Control Module |
| B/U LP #27 | 25 | Backup Lamps Switch/Transmiuion Range Switch |
| Not Used #28 | — | — |
| IGN E #29 | 10 | A/C Compressor Clutch Relay |
| FOG LP #30 | 15 | Fog Lamp Relay, Headlamp Ground Relay |
| OXYGEN #31 | 20 | Heated Oxygen Sensor, Post-Convener (2.2L), Heated Oxygen Sensor, LH Front, Heated Oxygen Sensor. Post-Converter, Heated Oxygen Sensor, RH Front, Heated Oxygen Sensor, Pre·Convener |
| LR PRK #32 | 10 | Tail Lamp Assembly, LH. Marker Lamp Assembly, LH Rear, License Lamp LH |
| IGN C #33 | 15 | Ignition Switch |
| Not Used #34 | — | — |
| PARK LP #35 | 20 | Park Lamp Relay, Headlamp Switch Assembly |
| N0t Used #36 | — | — |
| N0t Used #37 | — | — |
| HVAC #38 | 30 | Blower Motor Relay |
| Not Used #39 | — | — |
| Not Used #40 | — | — |
| CRANK #41 | 10 | Transfer Case Control Module, Manual Transmission Clutch Start Switch, Transmission Range Switch (Auto) |
| HAZ LP #42 | 20 | Hazard Switch |
| VECHMSL #43 | 10 | Dome and High Mounted Stop Lamp, Cruise Control Module |
| Not Used #44 | — | — |
| STOP LP #45 | 20 | High Mounted Stop Lamp Relay, Stop Lamp Switch |
| TBC #46 | 10 | Truck Body Control Module (T8C). RFA Module Assembly (Remote Keyless Entry) |
| MICRO RELAYS | ||
| HDLP PWR #47 | Power Supply to the Headlamps | |
| DRL #48 | Power Supply to the Daytime Running Lamps | |
| F/Pump #49 | Power Supply to the fuel Pump | |
| Hom #50 | 10 | Power Supply 10 the Homs |
| Not Used #51 | 10 | — |
| HDLP GND #52 | 10 | Ground Supply t0 the Headlamps |
| Not Used #53 | — | — |
| CHMSL #54 | Power Supply to the Rear Brake Lamps | |
| MINI RELAYS | ||
| Starter #55 | Power Supply to the Starter | |
| Not Used #56 | — | — |
| DIODE | ||
| DRL #57 | Prevent Feedback from DRL Relay | |
| Fuse/Circuit Breaker | Rating | Function |
| MICRO RELAYS | ||
| HDLP PWR #47 | Power Supply to the Headlamps | |
| DRL #48 | Power Supply to the Daylime Running Lamps | |
| F/Pump #49 | Power Supply to the Fuel Pump | |
| Hom #50 | Power Supply to the Horns | |
| A/C #51 | A/C Compressor Relay | |
| HDLP GND #52 | 10 | Ground Supply to the Headlamps |
| FOG LP #53 | Power Supply to the Fog Lamps | |
| CHMSL #54 | Power Supply to the Rear Brake Lamps | |
| MINI RELAYS | ||
| Starter #55 | Power Supply to the Starter | |
| Not Used #56 | ||
| DIODE | ||
| DRL #57 | Prevent feedback from DRL Relay | |

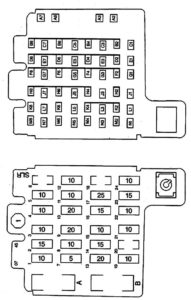

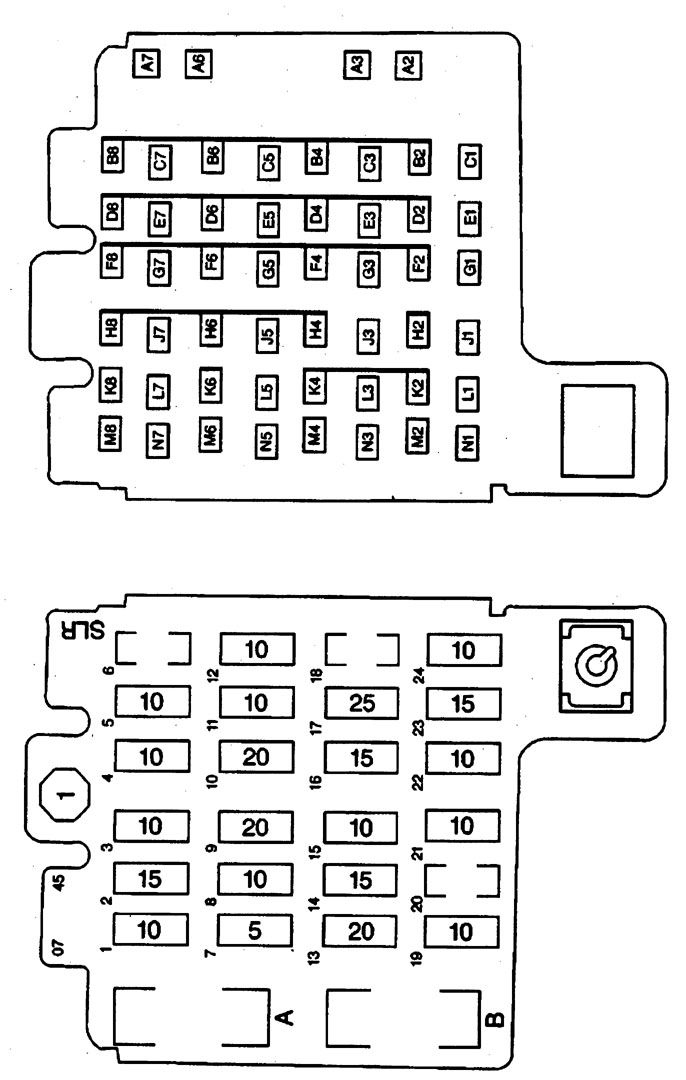

| Power Windows/Circuit Breaker A | 30 | Door Lock and Side Window Switch Assembly, LH Door Lock and Side Window Switch Asscmbly RH |
| HDLP SW/Fuse 1 | 10 | Headlamp Switch |
| CIGAR LTR/Fuse 2 | 15 | Cigar Lighter, Data Link Connector |
| CRUISE/Fuse 3 | 10 | Truck Body Control Module (TBC), Cruise Control Module, Cruise Control Switch |
| GAUGES/Fuse 4 | 10 | Truck Body Control Module (TBC), Instrument Cluster |
| ILLUM/Fuse 5 | 10 | Radio, Heater Controller (non-A/C), Heater ans A/C Controller (w/A/C), Fog Lamp Switch, IP Module Switch, Trunk Body Control Module (TBC), Transfer Case Select Switch, Instrument Cluster |
| NOT USED/Fuse 6 | ||
| MIR/LKS/Fuse 7 | 5 | Outside Rearview Mirror Switch, Door Lock and Side Window Switch Assembly, LH Door Lock and Side Window Switch Assembly RH |
| CTSY LP/Fuse 8 | 10 | Console Courtosy Lamp LH, Console Courtesy Lamp RH, Transfer Case Control Module, lnadvertent Power Lamp Relay |
| HVAC/Fuse 9 | 20 | Heater Controller (non-A/C), Heater and A/C Controller (A/C) |
| TURN/Fuse 10 | 20 | Hozard Lamp Switch, Turn Signal Switch |
| CLSTR/Fuse 11 | 10 | lnstrument Cluster, Powertrain Control Module (2.2L), Vehide Control Module (4.3L), Automatic Transmission |
| PARK LPS/Fuse 12 | 10 | I/P Ashtray Lamp, Truck Body Control Module (TBC), Outside Rearview Mirror Switch, Door Lock and Side Window Switch Assambly, LH Door Lock and Side Window Switch Assembly RH |
| AUX PWR/Fuse 13 | 20 | Auxiliary Power Outlet LH, Auxiliary Power Outlet RH |
| PWR LKS/Fuse 14 | 15 | Door Lock Relay, Door Unlock Relay, Driver Door Lock Relay |
| 4WO/Fuse 15 | 10 | Vehicle Control Module, Transfer Case Select Switch, Transfer Case Control Module, Front Axle Switch |
| SIR/Fuse 16 | 15 | I/P Module Switch, Supplomontal Restraint Sensing and Diagnostic Module |
| FRT WPR/Fuse 17 | 25 | Windshield Wiper Motor, Windshield Wiper/Washer Control Swhch |
| NOT USED/Fuse 18 | ||
| ROO BATT/Fuse 19 | 25 | Radio, Instrument Cluster |
| NOT USED/Fuse 20 | ||
| HVACI/Fuse 21 | 10 | Air Temperature Valve, Air Temperature Valve Electric Actuator |
| ABS/Fuse 22 | 10 | Stop Lamp Switch, Electronic Brake Control Module Assembly |
| RR WPR/Fuse 23 | 15 | Roar Wiper Assembly |
| ROO IGN/Fuse 24 | 10 | Radio |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
