Ford Focus (1998 – 2007)  – fuse box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Passenger Compartment Fuse Box

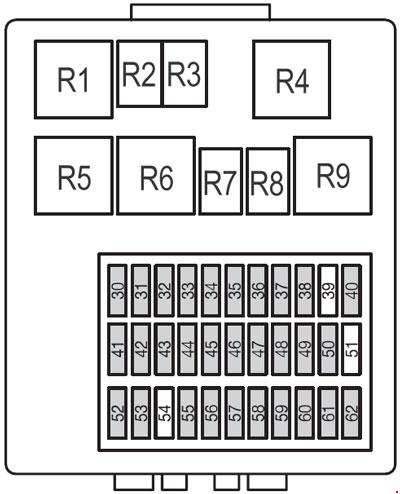

Ford Focus - fuse box diagram - passenger compartment
Ford Focus – fuse box diagram – passenger compartment
No.
 A
 Protected components
30 7.5 ’98-’01: Anti-lock Brake System (ABS)
10 ’02-’04: Light switch
’05-’07: Parking lamps
31 15 ’98-’04: Radio
20 ’05-’07: Radio
32 10 ’98-’01: Light switch
15 ’02-’07: Turn signal
33 15 ’98-’01: Hazard
20 ’02-’05: Horn, Power seats (SVT – ’03-’04)
’06-’07: Sunroof
34 20 ’98-’01: Horn
’02-’05: Sunroof
’06-’07: Horn
35 7,5 ’98-’05: Interior lamps, Power mirrors
’06-’07: A/C switch, Instrument cluster
36 7,5 ’98-’01: Central timer, Electronic modules
’02-’05: A/C switch, Hazard flasher (’02-’04), Instrument cluster
’06-’07: Interior lamps, Power mirrors
37 25 Europe: Power windows, central global closing (left-hand side)
25 USA:
’98-’03: Not used
’04-’05: Decklid/Liftgate release
’06-’07: Not used
38 25 Europe: Power windows, central global closing (right-hand side)
USA: Not used
39 10 USA:
’98-’01: Reversing light
’02-’05: Not used
2    ’06-’07: PCM relay coil
40 10 ’98-’01: Not used
’02-’05: Reversing light
25 ’06-’07: Rear defroster
41 7,5 ’98-’01: Not used
’02-’05: Radio and cluster (accessory)
’06-’07: Not used
42 15 ’98-’01: Not used
’02-’04: Stop lamps
10 ’05-’07: Stop lamps, Shift interlock (P/N; ’06-’07)
43 15 Europe: Power windows, rear screen wiper
USA:
’05-’07: Rear wiper, Sunroof (ignition)
44 20 ’98-’04: Front and rear fog lights
’05-’06: Not used
15 ’07: Daytime running lights
45 7,5 ’98-’01: Not used
’02-’07: Air conditioning, recirculated air
46 15 ’98-’01: Cigar lighter
7,5 ’02-’04: Anti-lock Brake System (ABS)
’05-’07: Not used
47 15 Europe: Cigar lighter, centre power point
7,5 USA:
’98-’01: Side lights (left)
20    ’02-’07: Cigar lighter, rear power point (SVT – ’03-’04)
48 7,5 ’98-’01: Side lights (right)
10 ’02-’07: Data link connector
49 25 ’98-’05: Rear defroster
7,5 ’06-’07: Heated mirror, heated backlite indicator
50 7,5 ’98-’01: Central timer, radio
’02: Not used
’03-’05: Heated mirror, heated backlite indicator
10 ’06-’07: Reversing light (automatic transaxle only)
51 7,5 ’98-’04: Not used
’05-’07: Front passenger sensing system
52 15 ’98-’02: Not used
’03-’07: Heated seats
53 10 Europe: Reversing light, heated washer jets
10 USA: Reversing light (manual transaxle only), speed control (’05-’07)
54 – Europe: Not used
15 USA:
’98-’01: Stop lamps
25    ’02-’07: Rear power windows
55 20 ’98-’01: Front wipers
25 ’02-’07: Front power windows
56 25 ’98-’01: Front power windows
20 ’02-’07: Front wipers
57 25 ’98-’01: Rear power windows
7,5 ’02-’04: Position and side lights (right)
’05: Not used
’06-’07: Radio and cluster (accessory)
58 7,5 ’98-’01: Air conditioning, recirculated air
’02-’04: Position and side lights (left)
’05-’07: Not used
59 10 Europe: Light switch (headlamps)
7,5 USA:
’98-’01: Electronic modules, instrument cluster
’02-’07: Light switch (headlamps)
60 7,5 Air bag module
61 7,5 Europe: Electronic modules, instrument cluster
7,5 USA:
’98-’01: Light switch (headlamps)
’02-’07: PATS modules, instrument cluster
62 7,5 ’98-’01: Not used
’02-’04: License plate lamp
’05-’07: Radio (Start)
Relay
R1 Starter
R2 Rear intermittent wiper
’06-’07: Not used
R3 Front intermittent wiper
’06-’07: Not used
R4 Power point
R5 Not used
’06-’07: Daytime running lamps
R6 Europe: Not used
USA:
’04-’05: Decklid/Liftgate release
R7 Horn
’06-’07: Not used
R8 Battery saver relay
’06-’07: Not used
R9 Rear defrost/Heated mirror

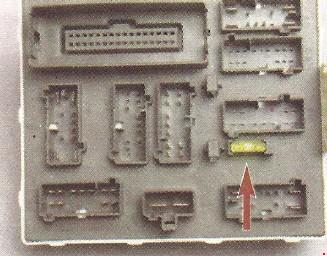

Ford Focus - fuse box diagram - passenger compartment
Ford Focus – fuse box diagram – passenger compartment
№
 A
 Protected components
10 20 Central locking system

Engine Compartment Fuse Box

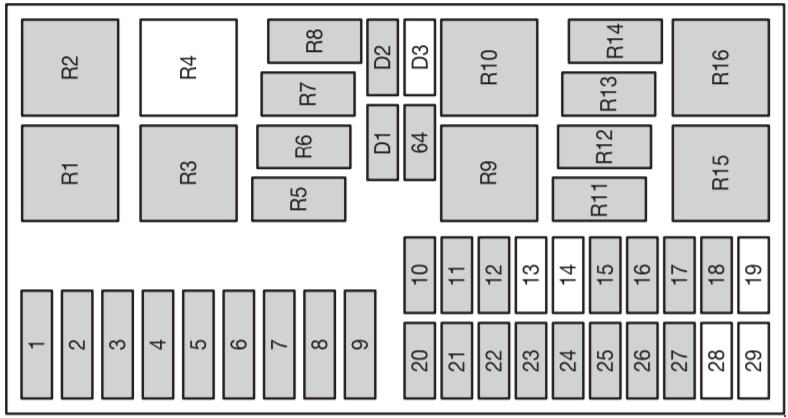

Ford Focus - fuse box diagram - engine compartment
Ford Focus – fuse box diagram – engine compartment
No.
 A
 Protected components
1 40 Main power supply (to passenger compartment fuse panel)
2 30 USA:
’99-’04: Engine cooling fan (A/C) 2nd fuse
’05-’07: Not used
3 40 Europe: Glow plug heater 2
30 USA:
’99-’02: Not used
’03-’04: Cooling fan (2.0L engine only)
’05-’07: Not used
4 50 Europe: Heated front screen
30 USA:
’99-’02: Not used
’03-’07: Air pump motor (PZEV engine only)
5 60 Europe: Diesel glow plug
30 USA:
’99-’02: Not used
’03-’04: Cooling fan 2 (2.0L engine only)
’05: Not used
’06-’07: Anti-lock Brake System (ABS) (pumps)
6 30 Europe: Engine cooling fan (air conditioning)
50 USA: Engine cooling fan (Primary fuse)
7 40 Main power supply (to passenger compartment fuse panel)
8 30 Ignition switch, starter solenoid
9 20 Engine management
10 10 Europe: Battery voltage sensor
10 USA:
’99-’04: Battery voltage sensor, diagnostic plug (’99-’01)
1 Europe:
’00-’05: Battery voltage sensor
USA:
’03-’07: Battery voltage sensor
11 30 Europe: Anti-lock Brake System (ABS) (pumps)
30 USA:
’99-’04: Anti-lock Brake System (ABS)
’05-’07: Subwoofer
12 15 Fuel pump, diesel injection pump
13 30 Europe: Headlight washer system
20 USA:
’99-’05: Not used
’06-’07: Anti-lock Brake System (ABS) (valves)
14 10 Europe: Daytime running lights (parking lights)
– USA: Not used
15 10 Europe: A/C clutch solenoid
10 USA:
’99-’01: Not used
’02-’04: A/C clutch solenoid
20    ’05: Anti-lock Brake System (ABS)
’06-’07: Not used
16 15 Europe: Low beam (left side)
USA: Low beam (left side – HID headlamps)
16 10 USA: Low beam (left side – conventional headlamps)
17 15 Europe: Low beam (right side)
USA: Low beam (right side – HID headlamps)
17 10 USA: Low beam (right side – conventional headlamps)
18 10 Europe: Heated oxygen sensors
10 USA:
’99-’02: Heated oxygen sensors
’03-’04: Heated oxygen sensors (2.0L engine only)
15    ’03-’04: Heated oxygen sensors (2.3L engine only)
’05-’07: Heated oxygen sensors
19 – Europe: Not used
40 USA:
’99-’04: Not used
’05-’07: Heater blower motor
20 10 Engine module
21 20 Europe: Anti-lock Brake System (ABS) (valves)
20 USA:
’99-’04: Anti-lock Brake System (ABS)
10    ’05-’07: A/C
22 20 Europe: Daytime running lights (Xenon headlights only)
20 USA:
’99-’05: Daytime running lights
’06-’07: Low beams
23 20 Europe: Auxiliary heater (diesel engine), power supply for battery backup sounder (ST170 only)
15 USA:
’99-’05: Not used
’06-’07: High beams, fog lamps
24 30 Europe: Glow plug heater 1, subwoofer (ST170 only)
30 USA:
’99-’01: Not used
’02-’04: Subwoofer
’05: Anti-lock Brake System (ABS) (pumps)
’06-’07: Not used
25 15 Europe: Daytime running lights (conventional headlights only)
30 USA:
’99-’01: Not used
’02: Subwoofer
’05-’07: Not used
26 10 Europe: Main beam left-hand side
10 USA:
’99-’03: Main beam left-hand side
’04: Not used
15    ’05: Fog lamps
’06-’07: Not used
27 10 Europe: Main beam right-hand side
10 USA:
’99-’03: Main beam right-hand side
15    ’04-’05: Main beam
’06-’07: Not used
28 10 Europe: Heated front screen, diesel fuel fired heater, diesel engine
1 USA:
’99-’06: Not used
’07: Anti-lock Brake System (ABS)
29 30 Europe: Engine cooling fan (air conditioning)
10 USA:
’99-’03: Not used
’04: Engine cooling fan (2.3L engine only)
’05-’07: Anti-lock Brake System (ABS) , speed control
64 30 Europe: Heater blower motor
30 USA:
’99-’01: Heater blower motor
40    ’02-’04: Heater blower motor
’05-’07: Not used
D1 – PCM diode
D2 – Engine cooling fan diode
D3 30 Europe: Engine cooling fan diode
D3 – USA:
’99-’02: Not used
’03-’07: A/C clutch diode
Relay
R1 Ignition
R2 Europe: Glow plug
USA:
’99-’02: Not used
’03-’05: Air pump motor
’06-’07: High beam relay, fog lamps relay
R3 Europe:
Heated front screen
Engine cooling fan
USA:
’99-’02: Not used
’03-’04: Engine cooling fan (2.3L engine only)
’05-’07: Engine cooling fan (high speed)
R4 Europe: Headlight washer system
USA:
’99-’04: Not used
’05-’07: Engine cooling fan (low speed)
R5 Europe: High beam
USA:
’99-’04: High beam
’05: High beam, fog light
’06-’07: Air conditioner
R6 Low beam
R7 Fuel pump
R8 Main relay
Injection pump power
R9 Europe:
Engine cooling fan
Glow plug heater
USA:
’99-’02: Not used
’03-’04: Engine cooling fan (2.0L engine only)
’05-’07: Engine cooling fan
R10 Europe:
Glow plug 2
   Engine cooling fan 2
USA:
’99-’02: Not used
’03-’04: Engine cooling fan (2.0L engine only)
’05-’07: Engine cooling fan
R11 Europe: Air conditioner
USA:
’99-’05: Air conditioner
’06-’07: Not used
R12 Europe: Daytime running lights
USA:
’99-’05: Daytime running lights
’06-’07: Not used
R13 Europe:
Fog light
Starter
USA:
’99-’05: Fog light
’05-’07: Not used
R14 Europe: Xenon headlights
USA:
’99-’00: Not used
’01-’02: Stop lights (AdvanceTrac)
’03-’04: Xenon headlights (SVT)
’05-’07: Not used
R15 Europe: Engine cooling fan (high speed)
USA:
’99-’04: Engine cooling fan (high speed)
’05: Not used
’06-’07: Air pump
R16 Europe: Engine cooling fan (low speed)
USA:
’99-’04: Engine cooling fan (low speed)
’05: Not used
’06-’07: Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
