Year of production: 2007, 2008, 2009, 2010, 2011, 2011, 2012, 2013, 2014, 2015, 2016, 2017

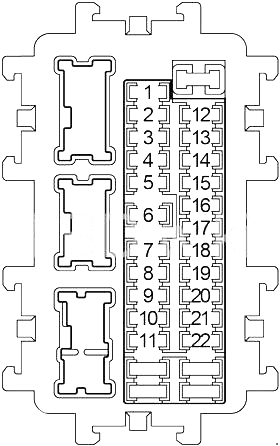

Passenger Compartment Fuse Box
No.
A
Circuit Protected
1
–
–
2
10
Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
3
10
Headlamp Aiming Motor RH and LH, Shift Lock Relay, Automatic Speed Control Device (ASCD) Brake Switch, Intelligent Cruise Control (ICC) Brake Switch, Adaptive Front Lighting System (AFS) Control Unit, AFS Switch, Data Link Connector, LDW Switch, Sonar Control Unit, Lane Departure Warning Buzzer, Unified Meter and Air Conditioner Amplifier, Heated Seat Relay, AV Control Unit, Sonar Cancel Switch, Around View Monitor Control Unit, Buzzer, Tel Adapter Unit, Compressor, Auto Anti-Dazzling Inside Mirror, Lane Camera Unit, Stop Lamp Switch, Warning System Switch, Ionizer, Exhaust Gas / Outside Odor Detecting Sensor
4
10
Combination Meter, Back-Up Lamp Relay
5
–
–
6
10
Key Slot, Intelligent Key Warning Buzzer, Data Link Connector, Unified Meter Air Conditioner Amplifier, Rear Seatback Power Return Control, Rear Seatback Release Relay (LH), Rear Seatback Release Relay (RH), Clock, Auto Anti-Dazzling Inside Mirror, Around View Monitor Control Unit, Dispaly Unit, Tel Adapter Unit, Satellite Radio Tuner, Daytime Running Light Relay, Combination Meter
7
10
Stop Lamp Switch, BCM (Body Control Module), Intelligent Cruise Control (ICC) Brake Hold Relay
8
20
BOSE Amplifier
9
10
Key Slot, Push-Button Ignition Switch
10
10
Seat Memory Switch, Automatic Drive Positioner Control Unit, Driver Seat Control, Door Mirror, BCM (Body Control Module)
11
10
Combination Meter, All Wheel Drive (AWD) Control Unit, Unified Meter Air Conditioner Amplifier
12
–
–
13
10
Door Mirror Defogger
14
20
Rear Window Defogger
15
20
Rear Window Defogger
16
–
–
17
–
–
18
15
Front Power Socket
19
10
Combination Meter, Unified Meter and Air Conditioner Amplifier, Display Unit, Multifunction Switch, AV Control Unit, iPod Adapter, BCM (Body Control Module), Sonar Control Unit, Tel Adapter Unit, Camera Control Unit, Door Mirror Remote Control Switch, Satellite Radio Tuner, Around View Monitor Control Unit
20
15
’07-’12: Console Power Socket
20
’13-’17: Console Power Socket
21
15
Blower Motor
22
15
Blower Motor

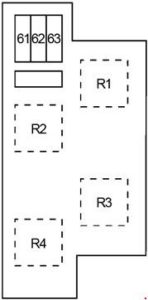

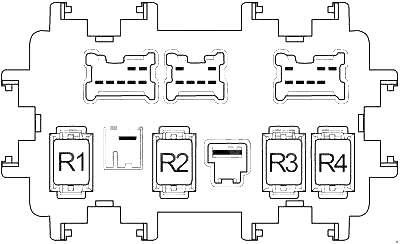

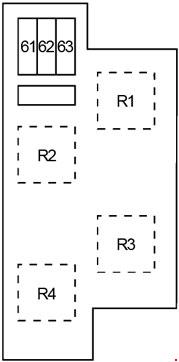

No.
Relay
R1
Ignition
R2
Rear Window Defogger
R3
Accessory
R4
Front Blower

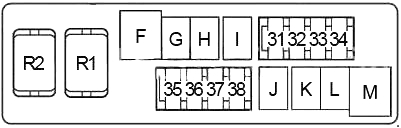

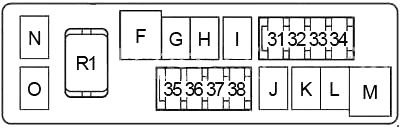

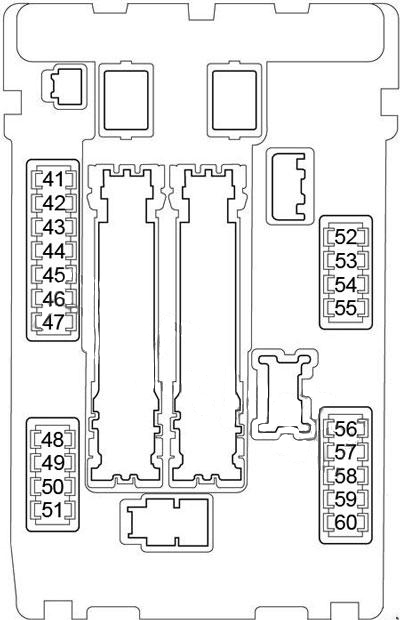

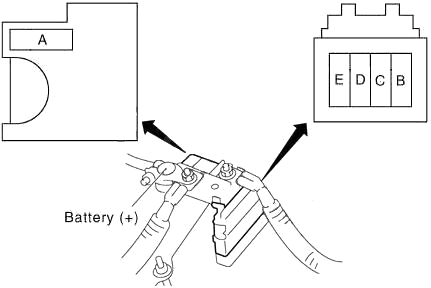

Engine Compartment Fuse Box No. 1
No.
A
Circuit Protected
41
15
Fuel Pump Relay
42
10
Cooling Fan Relay
43
10
Snow Mode Switch, Transmission Control Module (TCM)
44
10
Injectors, Engine Control Module (ECM), BCM (Body Control Module)
45
10
ABS, Intelligent Cruise Control (ICC) Sensor Integrated Unit, Steering Angle Sensor, Yaw Rate / Side G Sensor, Power Steering Control Unit, All Wheel Drive (AWD) Control Unit, Brake Booster Control Unit, Blind Spot Warning (BSW) Control Module, Side Radar LH/RH
46
15
Air Fuel Ratio Sensors, Heated Oxygen Sensors
47
10
Combination Switch
48
10
’07-’12: Steering Lock Relay
49
10
Air Conditioner Relay
50
15
Engine Control Module Relay (Intake Valve Timing Control Solenoid Valve, Condenser, Ignition Coils, Engine Control Module, Mass Air Flow Sensor, EVAP Canister Purge Volume Control Solenoid Valve, Exhaust Valve Timing Control Magnet Retarder, EVAP Canister Vent Control Valve, Variable Valve Event and Lift (VVEL) Control Module)
51
15
Throttle Control Motor Relay
52
10
Fron Combination Lamp
53
10
Rear Combination Lamp, License Plate Lamp, VDC Off Switch, Adaptive Front Lighting System (AFS) Switch, LDW Switch, Combination Switch (Spiral Cable), Clock, AV Control Unit, Glove Box Lamp, Control Device, Sonar Cancel Switch, Around View Monitor Control Unit, Power Return Switch (LH and RH), Snow Mode Switch, Heated Seat Switch (Driver Side and Passenger Side), Door Mirror Remote Control Switch, Roof Module (Console Lamp), Warning System Switch, Front Power Socket, IBA Off Switch, , Multifunction Switch
