BMW X5 (E53; 2000 – 2006) – fuse box diagram

BMW X5 (E53; 2000 – 2006) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

Instrument panel fuse box diagram

It is located under the glove compartment.

BMW X5 – fuse box diagram – glove compartment
BMW X5 – fuse box diagram – glove compartment
A Component
F1 5A Data bus connection, instrument panel
F2 5A Lamps control module
F3 5A Heater/air conditioning (AC) (until 02/01)
F4 5A Ignition coil relay
F5 7,5A Alternator, engine oil level sensor, fuse box/relay plate cooling fan motor
F6 5A Interior rearview mirror, parking aid control module(until 02/04), tyre pressure monitor control module
F7 5A Ignition coil relay
F8 5A Instrument illumination
F9 5A Airbag, brake pedal position (BPP)switch, lamps control module
F10 15A Horn
F11 5A Immobilizer
F12 5A Instrument illumination, steering position sensor
F13 5A Alarm system, interior rearview mirror
F14 5A Multifunction control module 1
F15 5A Tyre pressure monitor control module (until 02/04)
F16 5A Ignition switch
F17 5A Interior lamps control module
F18
F19
F20 30A Door function control module, driver
F21 30A Electric seats
F22
F23
F24 30A Door function control module, passenger
F25 25A Charging socket, cigarette lighter
F26 30A Ignition main circuits relay
F27 20A Multifunction control module 1
F28 30A Headlamp washers
F29 10A Airbag
F30
F31 5A Engine management
F32 5A Ignition main circuits relay, multifunctioncontrolmodule2
F33 5A Cigarette lighter
F34 7,5A Heated rear window, heater/air conditioning (AC)
F35
F36 5A Charging socket
F37 5A Multifunction control module 2
F33
F39 5A Clutch pedal position (CPP) switch, immobilizer
F40 30A Windscreen wipers
F41 5A Rear screen wash/wipe system, multifunction control module 1
F42 5A Interior lamps
F43 5A Instrument panel
F44 5A Airbag, electric seats
F45 5A Instrument panel
F46 7,5A Transfer box control module
F47 25A Fuel pump (FP) relay
F48 7,5A Heater/air conditioning (AC)
F49
F50
F51 10A Anti-lock brake system (ABS), engine management
F52 15A Datalink connector (DLC) (until 09/00)
F53 25A Multifunction control module 2
F54 15A Transmission control module(TCM)
F55 30A Anti-lock brake system (ABS)
F56
F57 15A Suspension control module
F58 20A Sunroof
F59 20A Auxiliary heater
F60 30A Multifunction control module 1
F61 50A Engine coolant blower motor
F62 50A Secondary air injection (AIR) pump relay
F63 50A Anti-lock brake system (ABS)
F64 50A Heater/air conditioning (AC)

Relay block under the glove compartment

It is located behind the fuse box.

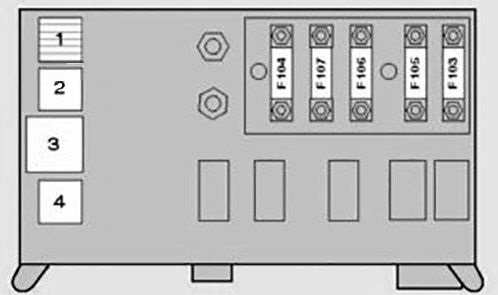

BMW X5 – fuse box diagram – relay block under the glove compartment

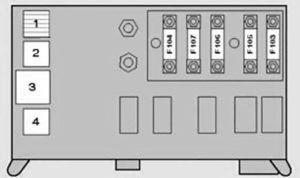

BMW X5 – fuse box diagram – relay block under the glove compartment
A Component
1 Fuel lift pump relay – Diesel
2
3 Interior lamps control module
4 Horn relay
F103
F104 100A Glow plugs
F105 80A Immobilizer, ignition switch-4,4/4,6 ( until 02/02)
F106 50A Ignition switch, lamps control module
F107 50A Lamps control module

Fuse box in the luggage compartment

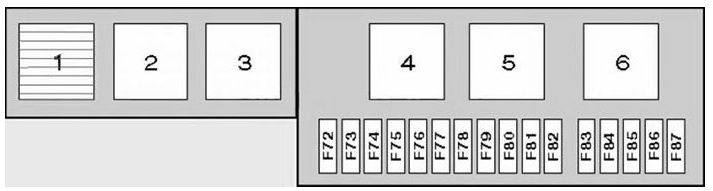

BMW X5 – fuse box diagram – luggage compartment
BMW X5 – fuse box diagram – luggage compartment
A Component
1 Seat heater relay- rear
2 Heated rear window relay
3 Audio unit relay
4 Boot lid/tailgate release relay- lower
5 Seat adjustment relay, rear
6 Boot lid/tailgate release relay- upper
F72 30A Audio system, navigation system
F73 7.5A Ignition coil relay
F74 10A Telephone
F75 5A Audio system, navigation system
F76
F77 30A Electric seats-rear
F78 20A Trailer socket
F79 7.5A Suspension control module
F80 20A Ignition coil relay
F81 20A Rear screen wash/wipe system
F82
F83 20A Charging socket-rear
F84 7.5A Boot lid/tailgate lock
F85 30A Heated rear window
F86 5A Auxiliary heater
F87 30A Suspension compressor pump

Some relays can also be located under the lining, in the luggage compartment. For example, a compressor pump relay, a pneumatic suspension pump compressor relay.

Fuses and relay in the engine compartment

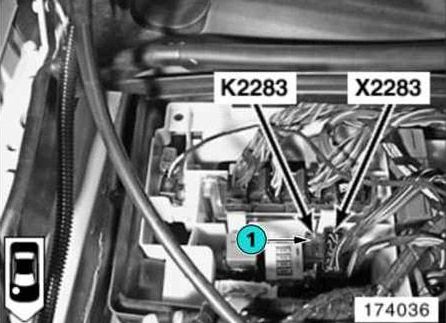

BMW X5 – fuse box diagram – engine compartment
BMW X5 – fuse box diagram – engine compartment

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
