Infiniti Q50 (2013 – 2015) – fuse box diagram

Infiniti Q50 (2013 – 2015) – fuse box diagram

Year of  production: 2013, 2014, 2015

Passenger Compartment Fuse Box

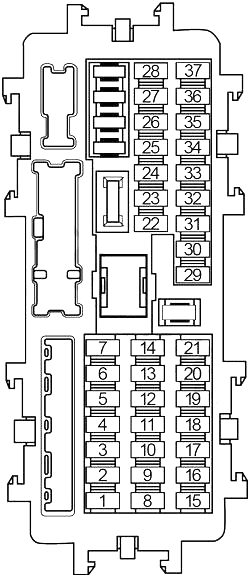

Infiniti Q50 - fuse box diagram - passenger compartment fuse box
Infiniti Q50 – fuse box diagram – passenger compartment fuse box
No. A
Circuit Protected
1 10 Combination Meter, Around View Monitor Control Unit, A/C Auto Amplifier, Integral Switch, Bose Amplifier, Telematic Control Unit (TCU), Telematics Switch, Power Window Main Switch (Door Mirror Remote Control Switch), Display Control Unit, External Data Input Box, Navi Control Unit, AV Control Unit
2 5 Body Control Module (BCM)
3 15 BOSE Amplifier
4 5 Pre-Сrash Seat Belt Control Unit, Data Link Connector, Auto Anti-dazzling Inside Mirror, Rain Sensor, Intelligent Key Warning Buzzer
5 15 BOSE Amplifier
6 10 A/C Auto Amplifier, Push-Button Ignition Switch, Combination Meter, Integral Switch
7 15 Display Control Unit, External Data Input Box, Telematic Control Unit (TCU), AV Control Unit, Navi Control Unit, Around View Monitor Control Unit
8 10 Mirror Defogger
9 20 Rear Window Defogger
10 20 Rear Window Defogger
11 5 Back-Up Lamp Relay, Combination Meter, Integral Switch
12 10 Shift Lock Relay, Headlamp Aiming Motor (LH/RH), Exhaust Gas/Outside Odor Detecting Sensor, Headlamp Swivel Actuator (LH/RH), Brake Pedal Position Switch, Stop Lamp Switch, Chassis Control Module, Compressor, Steering Force Control Module, Power Steering Control Unit, A/C Auto Amplifier, Navi Control Unit, Ionizer, High Beam Assist Control Module, Auto Anti-dazzling Inside Mirror, Data Link Connector
13 10 Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
14 5 Display Control Unit, Sonar Control Unit, Telematic Control Unit (TCU), Around View Monitor Control Unit, Heateo Seat Relay, Can Gateway, Lane Camera Unit, Adaptive Front Lighting System (AFS) Control Unit
15 5 Drive Mode Select Switch, Meter Control Switch, Automatic Transmission Shift Selector, Glove Box Lamp, Seat Memory Switch, Triple Switch, Combination Switch (Spiral Cable), Integral Switch, Telematics Switch
16  –
17 5 Remote Keyless Entry Receiver, All-Wheel Drive (AWD) Control Unit, Can Gateway
18  –
19 10 Stop Lamp Switch, Body Control Module (BCM), Intelligent Cruise Control (ICC) Brake Hold Relay
20 10 Body Control Module (BCM)
21  –
22 10 Advanced Driver Assistance Systems (ADAS) Control Unit, Side Radar (LH/RH), Driver Assistance Buzzer Control Module, All-Wheel Drive (AWD) Control Module
23  –
24  –
25 20 Power Socket No.1, Power Socket No.2
26  –
27 15 Blower Motor
28 15 Blower Motor
29  –
30 15 Body Control Module (BCM), Seat Memory Switch (with Automatic Drive Positioner)
31  –
32 15 Heated Seat Relay
33 15 Body Control Module (BCM)
34  –
35  –
36 10 Heated Steering Wheel Relay
37  –

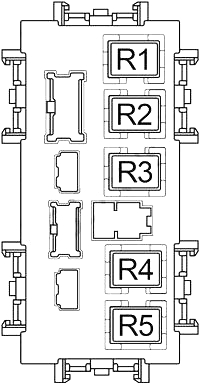

Infiniti Q50 - fuse box diagram - passenger compartment relay box
Infiniti Q50 – fuse box diagram – passenger compartment relay box
No.
Relay
R1 Rear Window Defogger
R2 Accessory
R3 Power Socket
R4 Ignition
R5 Blower

Engine Compartment Fuse Box No. 1

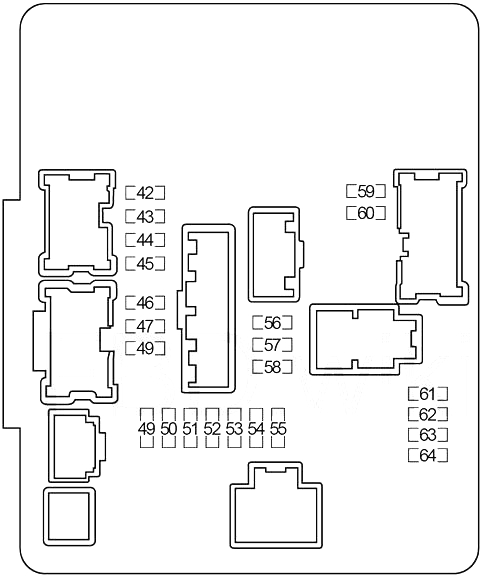

Infiniti Q50 - fuse box diagram - engine compartment fuse box no. 1
Infiniti Q50 – fuse box diagram – engine compartment fuse box no. 1
No.
A
Circuit Protected
42 10 Right Headlamp (High Beam)
43 10 Left Headlamp (High Beam)
44 15 Right Headlamp (Low Beam)
45 15 Left Headlamp (Low Beam)
46 10 Engine Control Module (ECM), Mass Air Flow Sensors, EVAP Canister Purge Volume Control Solenoid Valve
47 10 EVAP Canister Vent Control Valve, Intake Valve Timing Control Solenoid Valve, Variable Valve Event and Lift (VVEL) Control Module
48 15 Air Fuel Ratio Sensors, Heated Oxygen Sensors
49 15 Ignition Coils, Condensor
50 10 Fuel Injectors, Engine Control Module (ECM)
51 10 Transmission Control Module (TCM)
52 15 Fuel Pump Relay
53 10 Cooling Fan Relay No.1
54 10 ABS, Intelligent Cruise Control (ICC) Sensor, ICC Brake Hold Relay, Accelerator Pedal Actuator / Accelerator Pedal Position Sensor, Steering Angle Sensor,
55 10 Washer Pump
56 30 Front Wiper Relay
57 15 Front Fog Lamp Relay
58 10 Daytime Running Light Relay
59 10 Tail/Park Lamps (Left Side)
60 10 Tail/Park Lamps (Right Side), Map Lamps, Interior Lamps, Trunk Lid Opener Request Switch Assembly
61 10 A/C Relay
62  –
63 15 Throttle Control Motor Relay
64 10 Engine Control Module (ECM)

Engine Compartment Fuse Box No.2

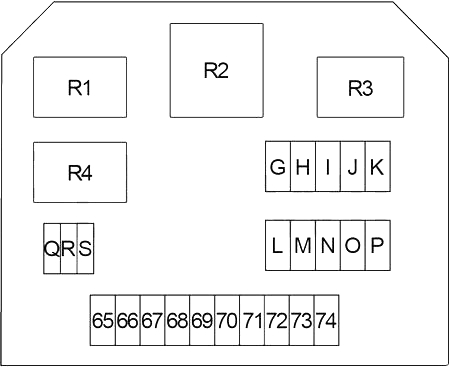

Infiniti Q50 - fuse box diagram - engine compartment fuse box no. 2
Infiniti Q50 – fuse box diagram – engine compartment fuse box no. 2
No.
A
Circuit Protected
65 10 Vehicle Security Horn Relay
66 15 Horn Relay
67 10 Accelerator Pedal Actuator / Accelerator Pedal Position Sensor (with Intelligent Cruise Control (ICC))
68 10 Transmission Control Module (TCM)
69 10 Alternator
70 10 All-Wheel Drive (AWD) Control Module
71  –
72 10 Daytime Running Light Relay
73 10 Daytime Running Light Relay
74  –
G 60 Direct Adaptive Steering: Steering Force Control Module
H 100 Direct Adaptive Steering: Steering Angle Sub Control Module
I  –
J 100 Direct Adaptive Steering: Steering Angle Main Control Module
K  –
L 30 ABS
M 40 Body Control Module (BCM), Circuit Breaker (Automatic Drive Positioner Control Unit, Power Seat)
N 50 ABS
O 50 Cooling Fan Relay No.1
P 50 Variable Valve Event and Lift (VVEL) Actuator Motor Relay
Q 30 Pre-Crash Seat Belt Control Unit (Passenger Side) (with Intelligent Cruise Control (ICC))
R 30 Ignition Relay (Fuse: “11”, “12”, “13”, “14”, “22”)
S 30 Pre-Crash Seat Belt Control Unit (Driver Side) (with Intelligent Cruise Control (ICC))
Relay
R1 Horn
R2 Cooling Fan No.1
R3 Daytime Running Light
R4 Vehicle Security Horn

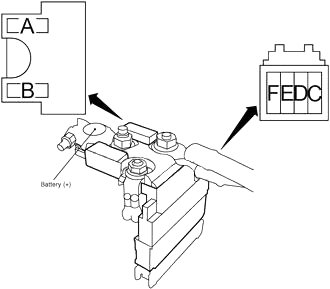

Fusible Link Block

Infiniti Q50 - fuse box diagram - fusible link block
Infiniti Q50 – fuse box diagram – fusible link block
No.
A
Circuit Protected
A 250 Starter, Alternator, Fuse: “E”, “D”, “C”
B  –
F 60 Headlamp High Relay (Fuse: “42”, “43”), Headlamp Low Relay (Fuse: “44”, “45”), Tail Lamp Relay (Fuse: “59”, “60”), Fuse: “56”, “57”, “58”
E 100 Accessory Relay (Power Socket Relay, Fuse: “1”), Power Socket Relay (Fuse: “25”), Rear Window Defogger Relay (Fuse: “8”, “9”, “10”), Blower Relay (Fuse: “27”, “28”), Fuse: “2”, “3”, “4”, “5”, “6”, “7”, “15”, “17”, “19”, “20”, “30”, “32”, “33”, “36”
D 80 Engine Control Module (ECM) Relay (Fuse: “46”, “47”, “48”), Ignition Relay (Fuse: “49”, “50”, “51”, “52”, “53”, “54”, “55”), Fuse: “61”, “63”, “64”
C 100 Fuse: “65”, “66”, “67”, “68”, “69”, “70”, “72”, “73”, “G”, “H”, “J”, “L”, “M”, “N”, “O”, “P”, “Q”, “R”, “S”

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
